Welding Equipment And Their Uses

Introduction

Welding is the method of joining two materials by applying heat and/or pressure to them in order to melt or solidify the bond between them. In either case, the resulting connection is referred to as a seam or weldment. Welding involves the use of concentrated, intense heat to melt the filler metal and the original metal together under the protection of a shielding arc made of gas unique to the type of welding machine being used.

1. Protection gear including welding gloves, aprons, and helmets, as well as dust masks and fume extractors

2. Tools like wire brushes and chisel hammers.

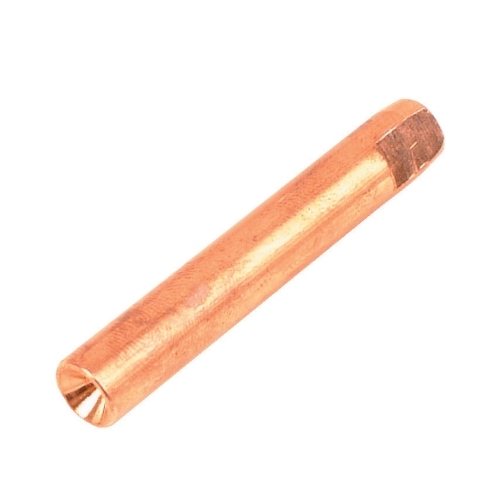

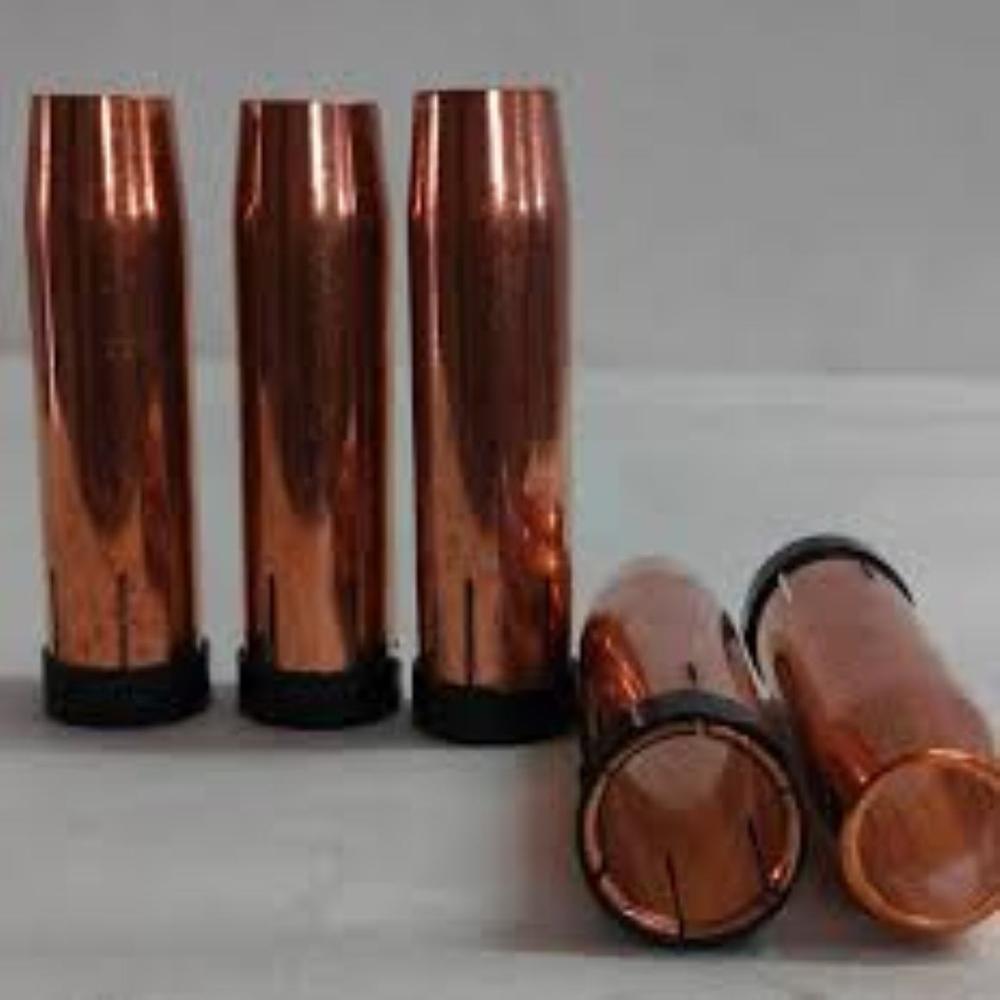

3. Equipment for metal-arc welding (MIG/MAG) including gas nozzles and contact tips

4. Welding electrodes made of tungsten used in TIG and GTAW processes

5. Discs made of abrasive materials, used in angle grinders

6. Spot welding resistance electrodes

What Is Welding Equipment For Beginners


1. FCAW

I advise you to begin with a Flux-Cored Arc Welding (FCAW) system if you don't know what you're doing. Gasless MIG is a common (and inaccurate) name for this welding technique. It's one of the least expensive and least time-consuming to master. Like aiming and shooting at targets.

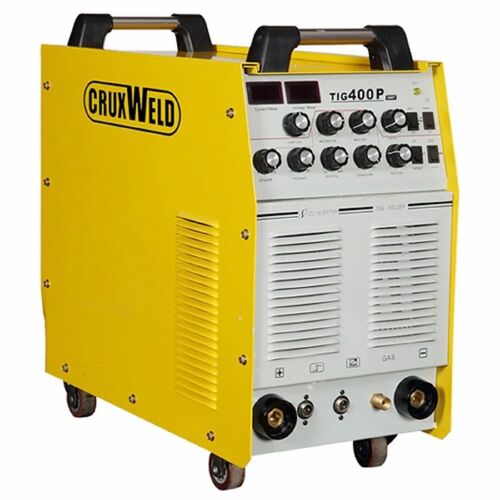

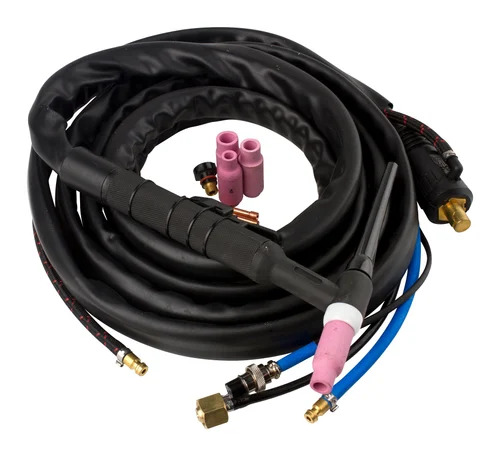

2. TIG

My recommendation is a TIG welding machine for anyone looking to join aluminum or stainless steel. These need more effort to master and a larger financial investment, but they offer greater flexibility. Welding mild steel presents no difficulties either.

3. Multipurpose Machines

Most of the time, you'll get the most for your money by investing in a multifunctional machine that can plasma cut as well as weld steel and stainless.

Nowhere else can you have such a wide selection of features at such a low cost? Having two Welding Equipment functions in one convenient device is a reality thanks to its plasma-cutting capability.

Depending on what you have on hand, you can switch the wiring to use either 110v or 220v. If you can, try to use 220 volts to achieve the best results.

4. Welding Gear

Having a welding helmet that automatically darkens is a huge time saver. Some of them can cost hundreds of dollars, which is completely unreasonable. They're great, but it's tough to make a case for them.

Different Types of Welding Equipment Kit


1. Welding Jackets

Welding requires us to wear jackets constructed from materials that can withstand high temperatures without catching fire. There are many options for jackets, but the best ones will last you for many years without needing to be replaced.

2. Welding Gloves

Heavy-duty tasks typically call for this. Spatter can seriously injure your hands, but these gloves will keep them safe. Try to find gloves with several layers of insulation. Silicone patches add an extra layer of protection against heat and splatter for some of the most robust MIG welding gloves.

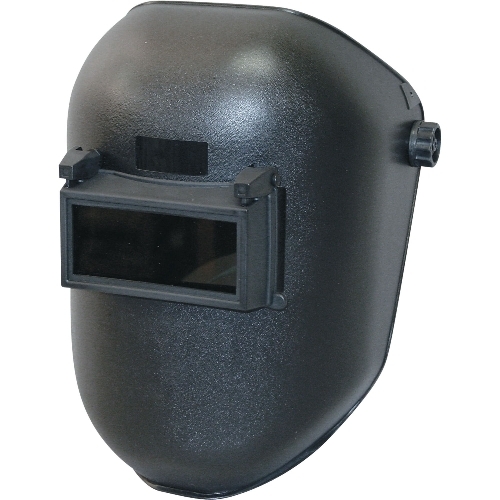

3. Welding Helmets

When welding, it's important to wear a quality helmet to shield your face and neck from harmful particles in the air. Without the protective gear, the arc's strong radiation can quickly destroy your skin and eyes. Welding helmets with automatic opening mechanisms are often favored.

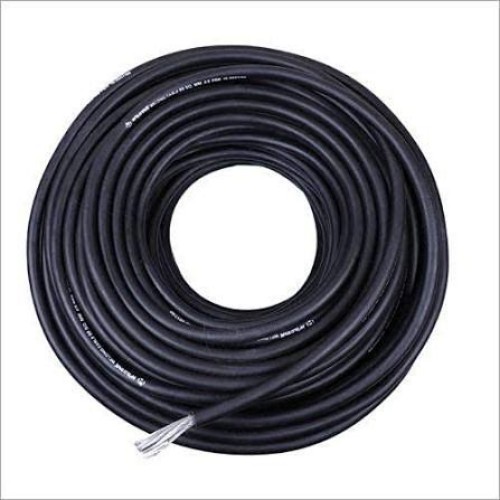

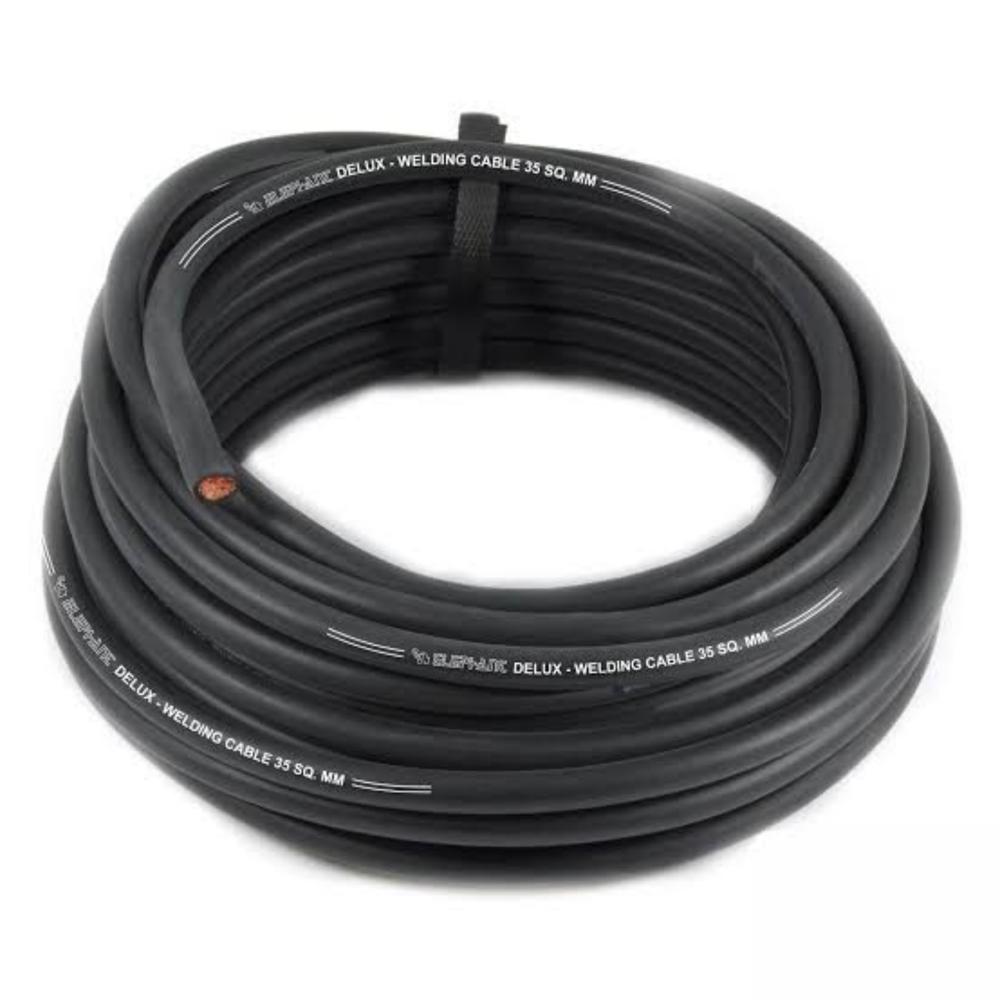

4. Cables

Cables are used to transmit electrical current. Copper or aluminum are used to create the cables, and they are flexible. Most cables consist of 900-2000 twisted wires.

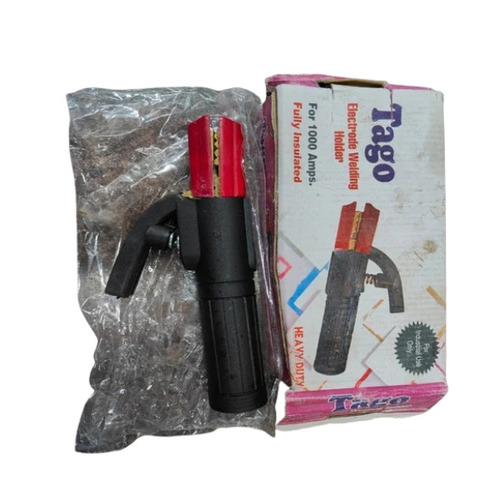

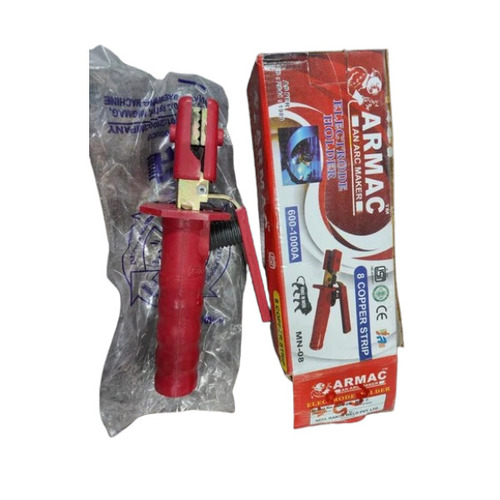

5. Electrode Holders

The electrode holders are used to keep the electrodes at the correct angle during the procedure. Based on their current capacities, the electrode holders come in a variety of sizes. The amperage ratings range from half a hundred to five hundred.

Similarly, the electrode diameters determine the sizing requirements for the electrode holders. The larger electrode is needed to support the heavier current of the 300-Ampere machine, as opposed to the 100-Ampere machine. Because inadvertent short-circuiting can occur while using non-insulated holders, they should be avoided.

6. Welding Machine

In the welding world, both alternating current (A.C.) and direct current (D.C.) machines are equally at home. An inverter is built into the A.C. welding equipment.

This transformer functions as a step-down regulator, decreasing the 220 or 440 V input to either 80 or 100 V. The motor-generator set for the D.C. welding equipment is alternating current (A.C.).

In contrast to A.C. machines, which have a power factor of just 0.3–0.4, D.C. machines have a power factor of 0.6–0.7.

7. Welding Pliers

Many of us are familiar with pliers in general, but what do you know about welding pliers in particular? Forged steel is utilized in the construction of welding pliers, which are employed in a wide variety of welding procedures. With the help of a spring, you may effortlessly open and close them.

They've been subjected to various heat treatments to increase their durability.

Pliers designed specifically for welding are most commonly employed during the MIG welding process. You can use them to clean the nozzles, cut wire, and get rid of splatter.

8. Electrode

In a sense, the electrode is the beating heart of the welding process. The welding process involves the transfer of energy from the welder to the workpiece via the tool's tip. Electrode tips used in TIG welders are often made of tungsten, which is not a consumable material.

In contrast to other welding methods, TIG welding doesn't require electrode replacement.

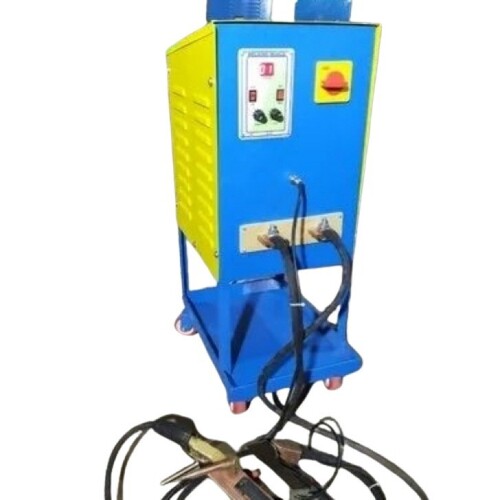

9. Spot Welding machine

Spot welding, a type of resistance welding, involves applying pressure and heat to the weld region using electric current in order to join two or more metal sheets. These machines' benefits include efficient use of energy, a rapid production rate, easy automation, etc.

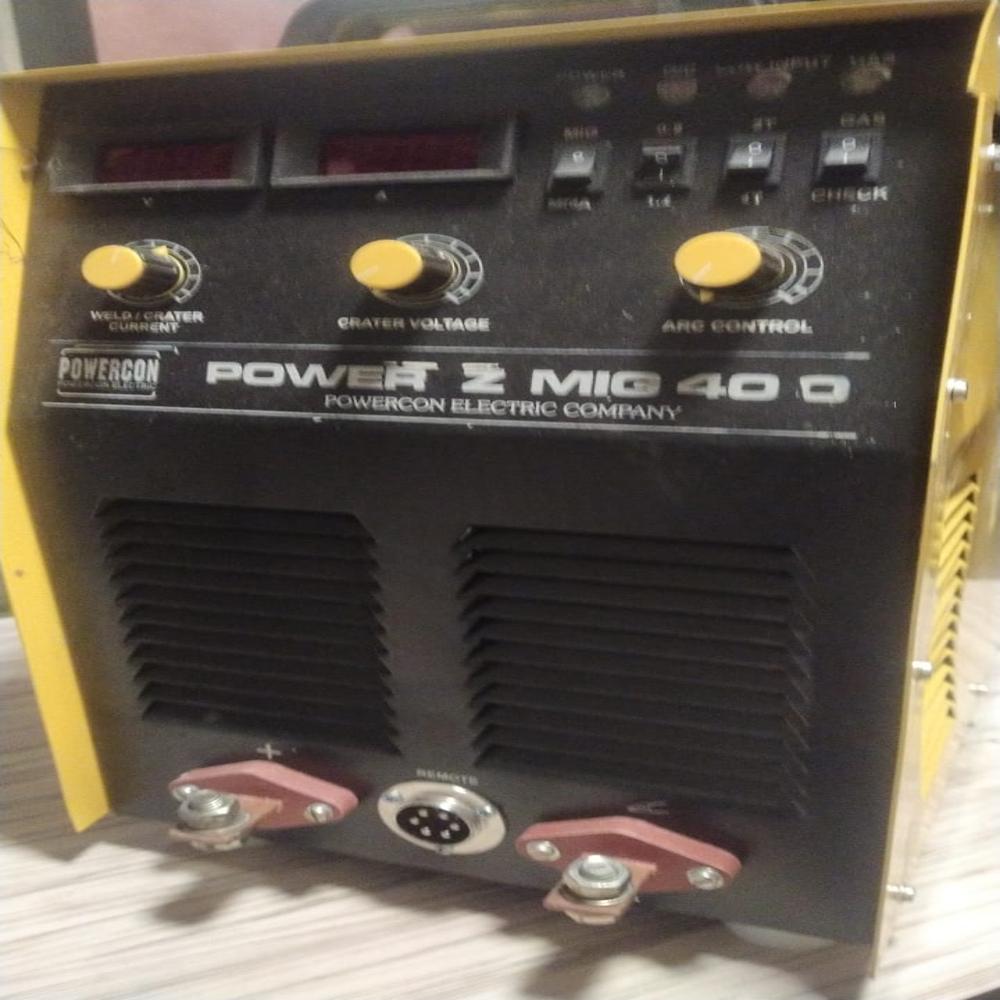

10. Thyristor MIG Welding Machine

Precision and hard ground parts of the highest quality are used in the production of these sorts of welding equipment. To mount or repair objects, this welding equipment is widely considered the best option. In particular, solid core and flux materials are ideal for these machines.

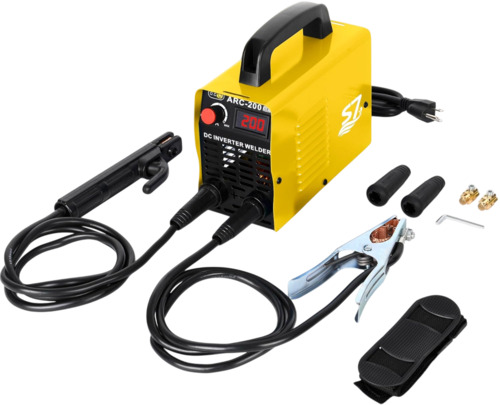

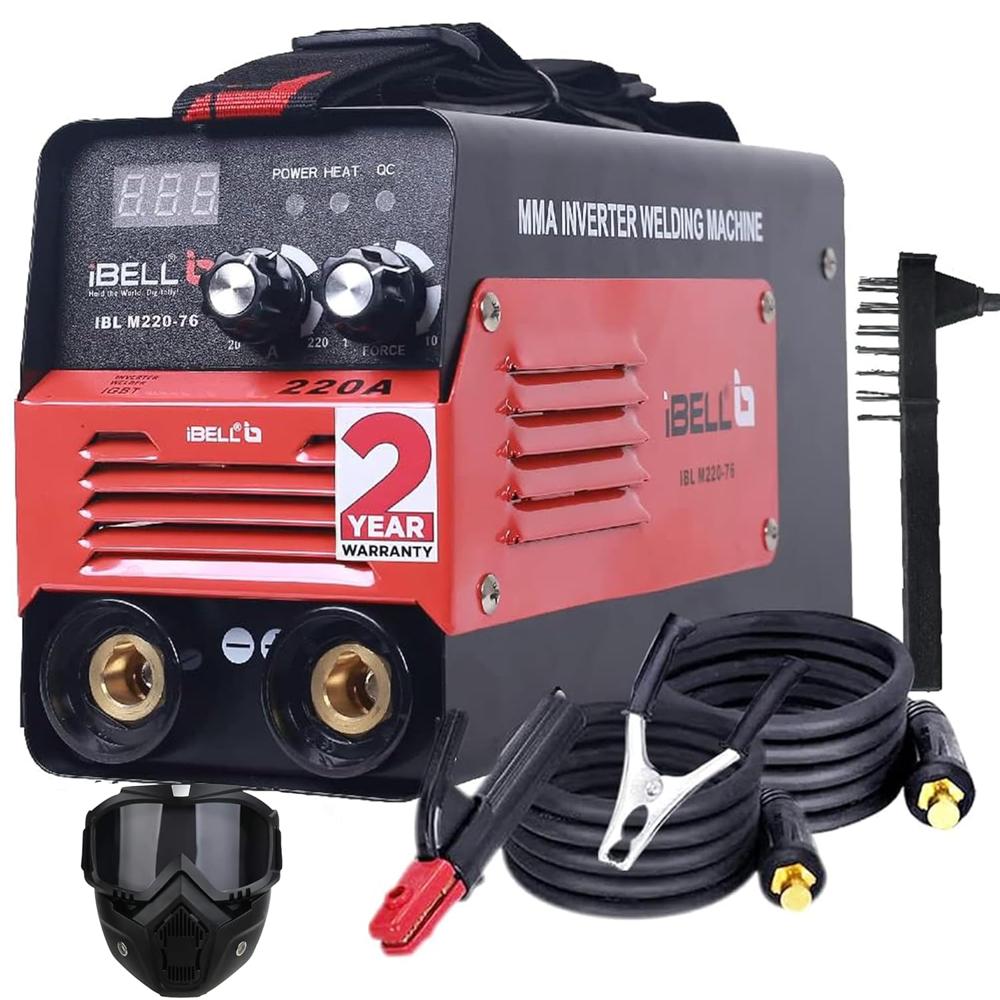

11. Shielded Metal ARC Welding Machine

Generally speaking, the heat generated by an electric arc is the driving force behind the operation of shielded metal arc welding devices. Stick welding refers to this method of joining metal together with a stick and an electric current (filler rod). Both alternating current (AC) and direct current (DC) can power SMAW machines.

12. Flux Core ARC Welding Machine

Most commonly, flux core welding equipment is used to join thick metals. Welding is accomplished by applying heat from an electric arc to the joint location to melt the base metal and permanently unite the two pieces.

13. Energy Beam Welding Machine

The machine employs a concentrated beam of fast-moving electrons, guided by magnetic fields, to combine the components. Energy beam welding equipment may join two different metals of different thicknesses together.

14. Atomic Hydrogen Welding Machine

The AHW device makes use of hydrogen gas from a cylinder and the arc created between two tungsten electrodes. Welding with atomic hydrogen is so-called because the arc breaks the hydrogen atoms apart.

Safety Tips while using Welding Equipment


Welders should always follow these basic safety procedures, which are based on industry standards:

1. Except in cases where exposure studies show that workers are not at risk of overexposure, all welders should wear a respirator that meets current regulations.

2. I'm checking out the electrode holder and other welding gear before getting started.

3. When using an electrode holder, welders should take care to avoid getting their skin or wet clothing in contact with the metal components.

4. Workers should safeguard their eyes and head by donning protective gear such as welding helmets and goggles when handling hot slag, sparks, bright light, or chemicals.

5. To check for any smoldering flames, welders should stay in the work area for at least 30 minutes after they've finished their shift.

6. Welding requires the use of gas cylinders, which are under tremendous pressure. Protect yourself and others from the intense heat by keeping a safe distance from any sparks or slag that may fly off.

7. Avoid slips, trips, and falls by keeping your workplace clear of debris. Work in dry places and avoid confined spaces.

8. Do not put on any synthetic fabrics.

9. You should put on some goggles or safety glasses after taking off your welding helmet to keep slag out of your eyes.

10. Welding on coated materials like galvanized or cadmium-plated steel will emit harmful vapors and should be avoided. Keep away from chemicals when welding.

FAQs: Welding Equipment


Q. What is the equipment required in welding?
Ans. Here is some common equipment for Welding:

1. Welder

2. Feeds

3. Safety Gear

4. Charged Electrode

5. Wire

Q. Which is the best welding equipment for home use?
Ans. Millmermatic 252 is the best welding equipment for home use. In terms of output current, the Millermatic 252 can deliver up to 300A. This makes it possible to maintain a higher welding output for a longer period of time, which is useful for prolonged procedures.

Q. What are some of the best welding equipment brands?
Ans. Here are some top reputable welding equipment manufacturing brands in India:

1. Electra

2. Vulcan

3. Panasonic

4. Esab India

5. Virdi

6. Akira Engineers

7. Arm Welders

Q. How does welding equipment work?
Ans. Welding equipment works where a metal workpiece is grounded to the welding machine and an electrode is hooked to the welding machine, creating a molten weld.
