Butterfly Valves

All About Butterfly Valves


Butterfly valves are a type of valve that can be used to stop flow in a pipeline by rotating a quarter of a turn. The flow can be controlled by using butterfly valves, as is commonly believed.

They can be found in a broad variety of processes media and sectors, including water supply, storage, and transmission, and pumping stations, where they are used mostly for flow isolation.

Parts of Butterfly Valves


1. Valves Body

Flanged, double lug, and wafer end connections are the most frequent, and the valve body fits in between the flanges.

2. Disc

The disc is affixed to the valve body and acts as a gate to restrict or restrict fluid flow; it is analogous to a gate in a gate valve or a ball in a ball valve. It is common practice to bore a hole in the disc to accommodate the stem or shaft.

3. Seat

When the disc is in the closed position, it is secured in place by a metal anti-leak seal or strong elastomer that lines the interior of the valve body.

4. Stem

The disc is attached to the actuation mechanism via the valve shaft, also known as the stem. The shaft transmits the torque from the disc to the actuation mechanism.

5. Seals

Many interfaces within the butterfly valves have seals to either provide a tight seal during operation or to isolate the process medium from the internal components of the valve for a more versatile and cost-effective design.

Working Principle of Butterfly Valves


Butterfly valves are designed to control the flow of fluid by isolating it using a disc that pivots over the bore of a ring body.

The pipe's disc sits smack dab in the middle. This disc is connected to an external actuator by a rod. By turning the actuator, the disc can be moved in a plane parallel or perpendicular to the flow. The disc is always in the flow, reducing pressure even when the valve is closed, unlike a ball valve.

Butterfly valves with a linear or equal percentage characteristic are available for use in modulating services.

Linear: The flow rate is X percent of its highest value when the disc is open X percent. By way of illustration, if the disc is opened 30 degrees, or one-third of the way, the flow rate will be 33.3% of maximum.

Equal: Distance traveled by the disc and the velocity of flow are related in a logarithmic fashion. If the disc is rotated 10 degrees, the flow rate increases by 70%, from 100 to 170 m3/h; if the disc is rotated another 10 degrees, the flow rate increases by another 70%, from 170 to 289 m3/h. This angle can range from 20 degrees to 90 degrees for modern butterfly valves (fully open).

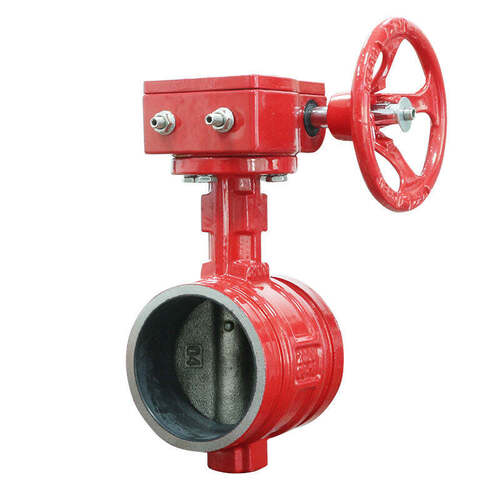

Types of Butterfly Valves

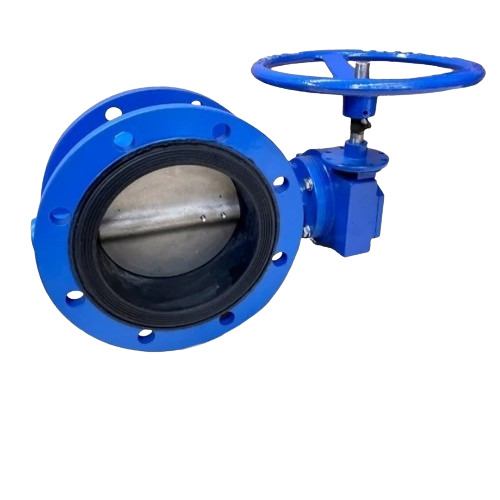

1. Double Flange Butterfly Valve

Flanged ends are included on both sides of the Double Flange Butterfly Valve. The valve is fastened to the piping flanges with bolts.

The butterfly valve can be installed with pinpoint accuracy thanks to its twin flange body, which can also serve as a pipe termination point if needed.

The short disc extension from the body laying length makes this valve suitable for use with lined pipes. Having the pipe fitting installed in close proximity to other pipe fittings is another benefit.

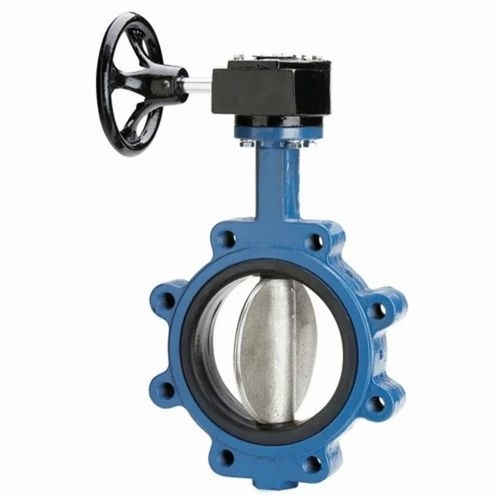

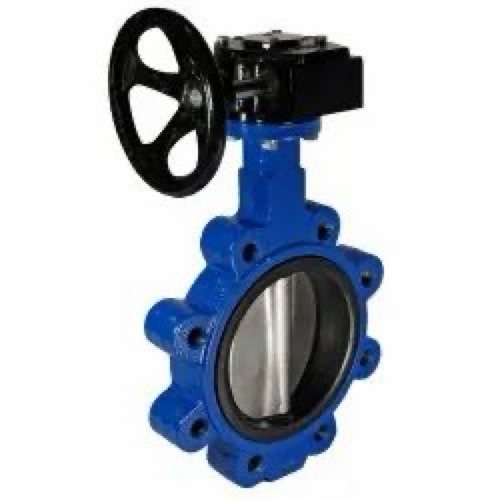

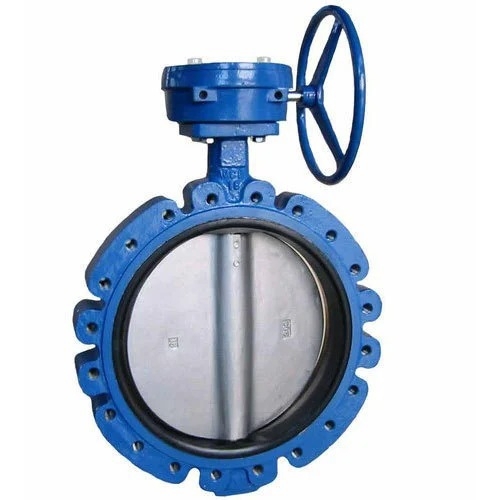

2. Lug style butterfly valve

The butterfly valve with threaded lugs is known as a lug style. Pipe flanges are attached to each side of the bolt inserts using bolts and nuts are not required.

This setup is perfect for dead-end service since it enables for one end to be disconnected without affecting the other.

A dead end service may require a lower pressure rating, which is why lug-style butterfly valves are commonly employed. As opposed to wafer-style butterfly valves, lug-style valves have a solid body that supports the piping's weight.

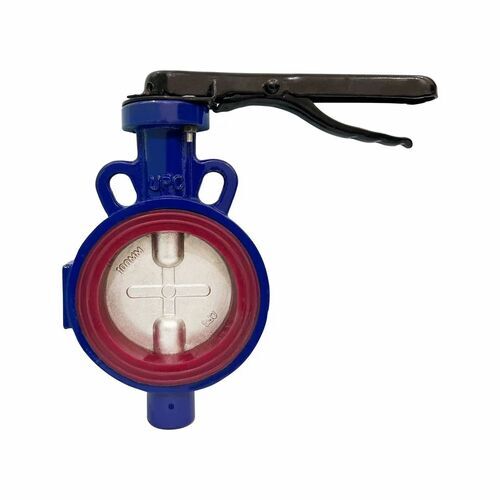

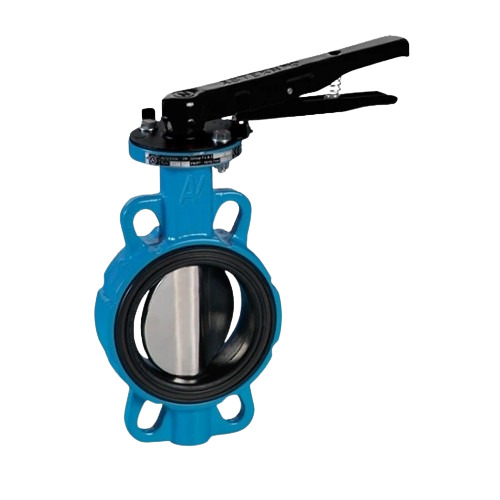

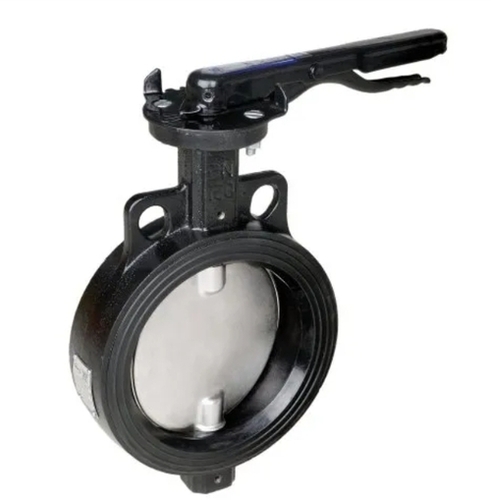

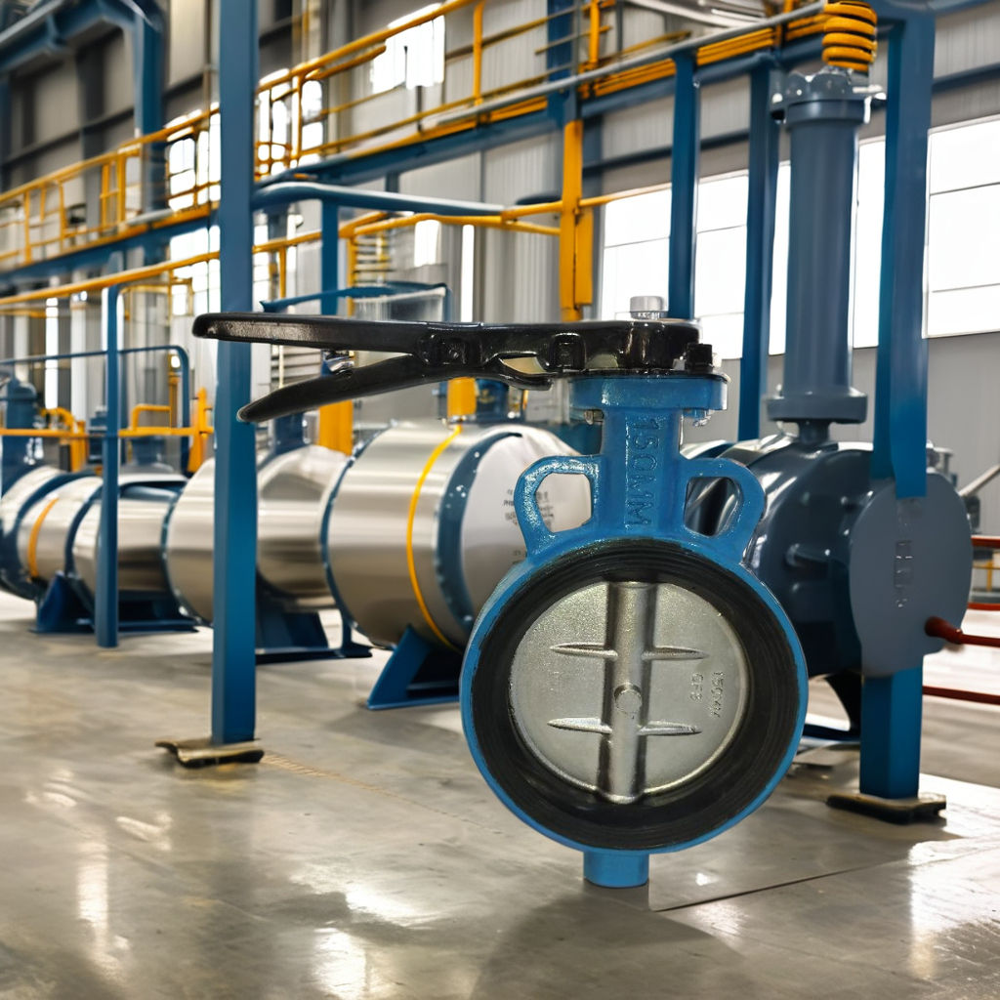

3. Wafer Type Ends

The cheapest option is a butterfly valve with a water type end, which consists of 2 pipe flanges held together by flange bolts. Long bolts, the length of which is equal to the breadth of the valve body, secure the pipe flanges together.

The valve and pipe flanges are sealed using a securely fitted seal, such as an O-ring or carefully machined gasket, and a flat valve face at both the downstream and upstream ends of the valve.

Sealing against differential pressure in both directions and blocking reverse flow in universal flow systems is the goal of this connection.

4. Butt Welded Types Ends

This type of end valve is typically seen in high-pressure applications and is welded directly to the pipe.

Butterfly Valve Vs Ball Valve


A. Butterfly Valve

Weight: Weight is not an issue with butterfly valves. Consequently, the stress on the pipe supports is reduced.

Structure: The butterfly valve has a narrow disk inside of a similarly slim body. The structure is now simpler.

Space Requirement: Installation The butterfly valve takes up less room than the alternative.

Leakage: Butterfly valves tend to leak under high differential pressure.

Flow Restriction: Because of the substantial pressure drop caused by the butterfly valve disc, flow is restricted.

Applications: Optimal for both on/off and proportional applications

Cost: A butterfly valve can save you money.

Connection: The lug or wafer design of the flange on a butterfly valve

Uses: Application of this technology is found in the field of liquid services.

Operating Condition: This material's primary function is in services requiring low temperatures and pressures.

No of ports: Only two outlets are possible on a butterfly valve.

B. Ball Valve


Weight: Ball Valves are characterized by their heaviness.

Structure: The disc in ball valves is shaped like a sphere, although the valve itself is quite large. Quite the intricate setup.

Space Requirement: When compared to butterfly valves, ball valves require greater room to be installed.

Leakage: A reliable seal can be found in ball valves.

Flow Restriction: When comparing ball and butterfly valves, ball valves have lower pressure drop.

Applications: Appropriate for both continuous and momentary control. However, their primary function is to create a private space for the occupant.

Cost: The price of ball valves is high.

Connection: Ball valves can be attached to a variety of systems.

Uses: Ball valves can be used for both liquid and gaseous applications.

Operating Condition: It is able to withstand extreme conditions of heat and pressure

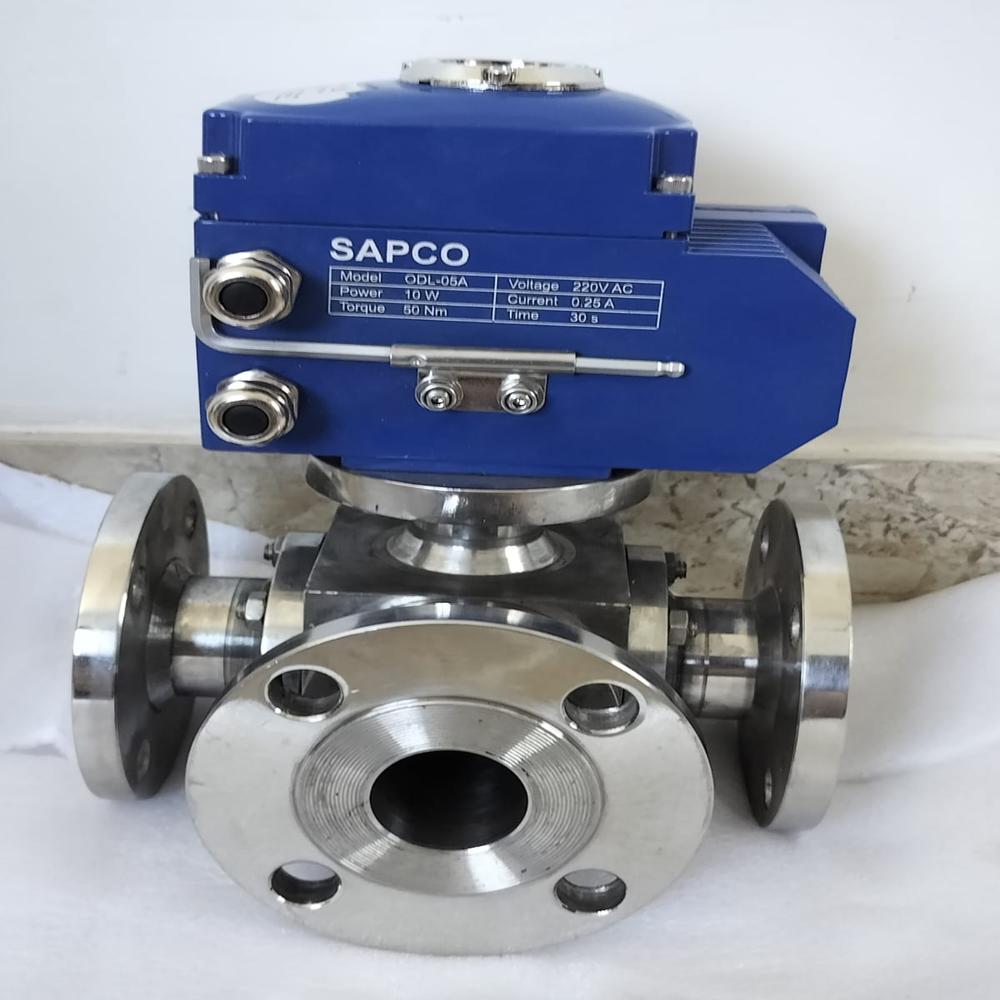

No of ports: A ball valve's port count is not limited to two

Best Quality Butterfly Valves Available Online with Price


Butterfly Valves are available online in all types of designs offered by different butterfly valve manufacturers. At the online marketplaces, buyers can find a number of sellers online that deal in a wide range of such valves. Interested buyers can check details, specifications, types, and designs as per their requirements.

Before purchasing butterfly valves buyers can butterfly valve price, features, and other details, such as:

- Quality standards
- Material durability
- Sizes
- Price
- Delivery time
- Minimum order quantity
- Stock availability
- Buy Butterfly Valve Online

Buyers planning to buy Butterfly Valve online should check the available stock at different eCommerce platforms. The online platforms provide a suitable avenue for the buyers to check the range of butterfly valves and compare prices.

Apart from these types of valves, interested buyers may also check other sub-categories:

a. Industrial Butterfly Valve
b. Triple Offset Butterfly Valve
c. PTFE Lined Butterfly Valve

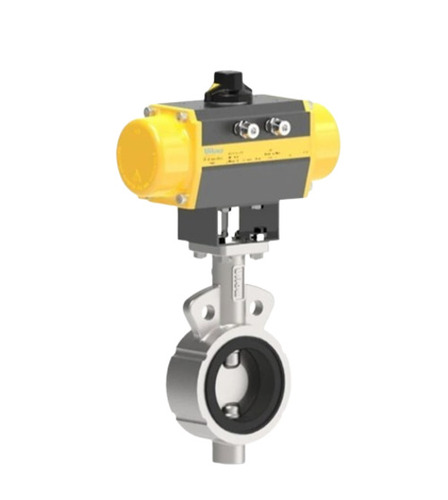

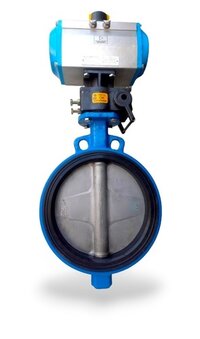

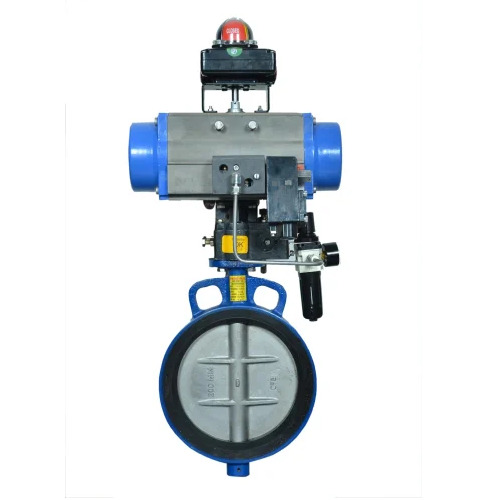

d. Pneumatic Butterfly Valves

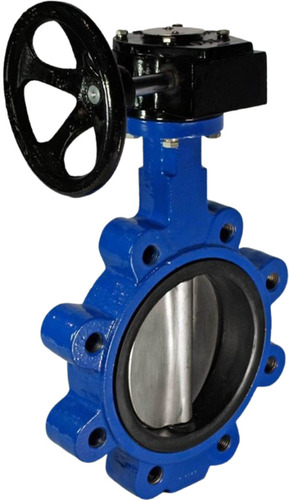

e. Cast Iron Butterfly Valve
f. Flange Butterfly Valve
g. Water Butterfly Valves

Buyers can check the contact details of butterfly valve manufacturers in India and suppliers of butterfly valves, and place their orders online.

FAQs: Butterfly Valves


Q. What is the purpose of butterfly valves?
Ans. Butterfly valves are used as a shut-off valve for controlling the flowing liquid or gas in a pipeline. These valves feature a disc for shutting off the media flow in the system.

Q. What is an actuator in a butterfly valve?
Ans actuator is another name for a handle in the valve which is the main component controlling the operation of valves, such as opening closing, or partial opening/closing.

Q. How actuators are operated in a butterfly valve?
Ans. Actuators are either manual-operated or power-operated. In manual operation, the valve is either operated by a hand lever or a gear. In a power-operated system, actuators are handled by the electric, pneumatic or hydraulic systems.

Q. Where buyers can buy butterfly valves?
Ans. Buyers can buy from a number of online marketplaces or standalone eCommerce sites or manufacturers and suppliers of butterfly valves.

Q. How can I find a butterfly valve supplier around my locality?
Ans. Finding a butterfly valve supplier nearby is very easy. Simply type ‘butterfly valve supplier near me’ in a search engine like Google or Bing and get classified suggestions on the suppliers nearby.
