CNC Machined Components

Overview of CNC Machined Components

CNC stands for Computer Numerical Control. These machines have computerised controls for operating and manipulating machine tools throughout the manufacturing process. CNC machines are widely utilised in a variety of industries, including aerospace, automotive, electronics, and medical because they can produce high-precision components with complex geometries. CNC machined components are basically parts or goods made utilising CNC machining processes. These parts are often constructed from a variety of materials, including composites, metals (such as titanium, steel, brass, and aluminium), and polymers.

CNC Machined Components | Definition & Functions

Computer-controlled machines known as CNC machines are used to create parts or pieces. These are also known as CNC machined components or Computer Numerical Control machined components. These tools can precisely cut, shape, drill, and finish a variety of materials, including composites, metal, plastic, wood, and wood-plastic composites. A very flexible and effective manufacturing technique, CNC machining is utilised extensively in a variety of sectors, including the automotive, aerospace, electronics, and medical fields.

Applications of these CNC machined components are as follows:

Precision Machining: CNC machines employ computer-aided design (CAD) files and specialised software to precisely and consistently control the cutting tools and movements. This makes it possible to produce complicated and sophisticated shapes that are challenging to produce with manual machining techniques.

Production and prototype: CNC machining is frequently utilised for both large-scale production and prototype. It provides a practical method for making affordable functioning prototypes so that concepts can be tested and improved before going into mass production. Additionally, identical components can be produced in bulk using CNC machines, ensuring uniformity and quality.

Surface Finishing: To acquire the appropriate surface polish, CNC machined components can go through additional processes. Sanding, polishing, grinding, and coating are some of these procedures. Engraving and embossing tasks can also be completed by CNC machines to add aesthetic or practical elements to the components.

Assembly and Integration: CNC machined components are frequently made to integrate with or fit into other components of a bigger assembly. CNC machining possesses high accuracy and dimensional consistency which guarantee precise fit and alignment.

Different Types of CNC Machined Components

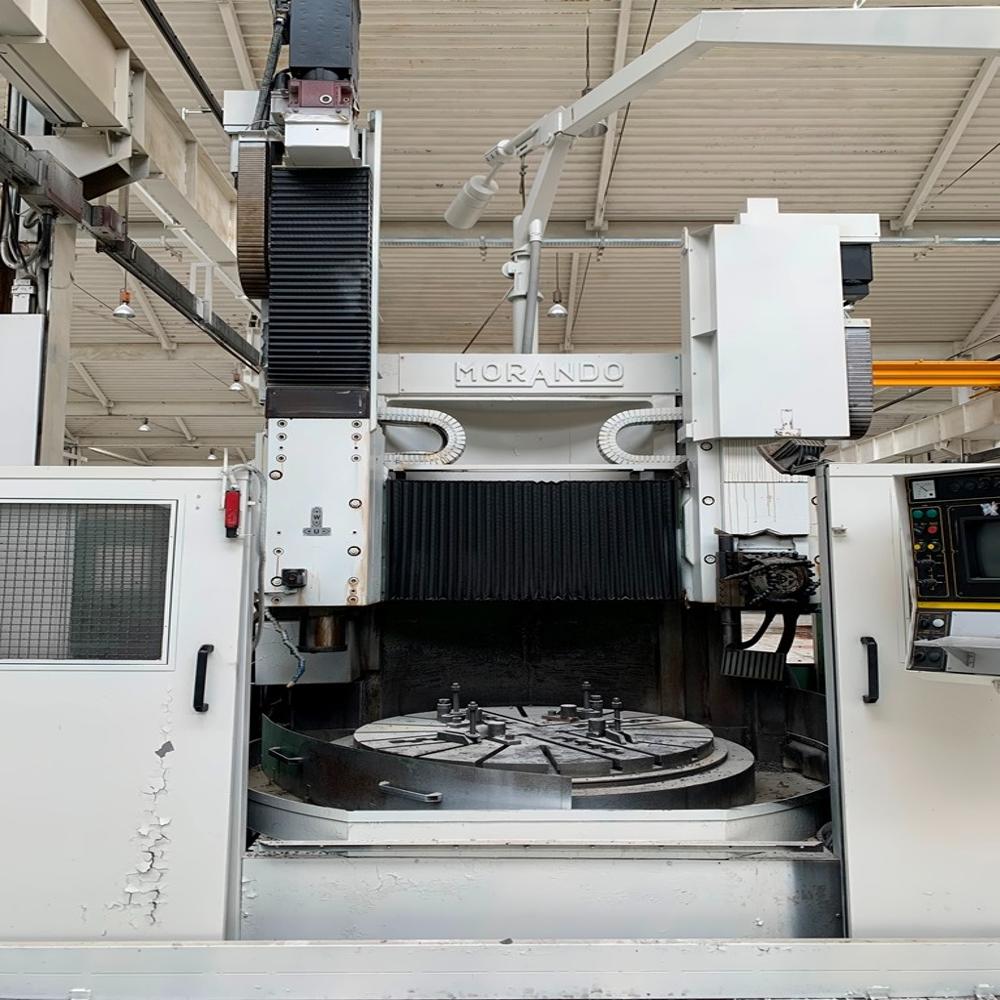

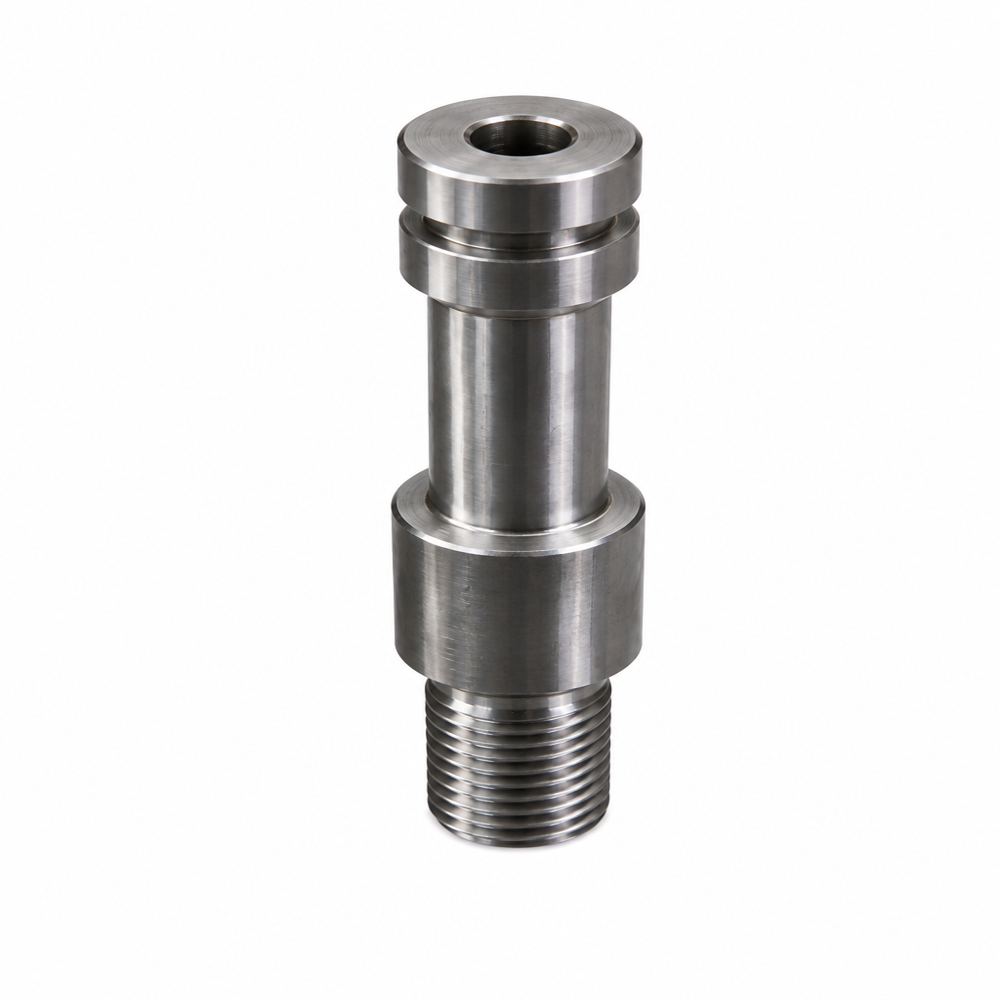

CNC Turned Components: These components include shafts, pins, and threaded parts that are manufactured using a CNC lathe that rotates the workpiece as a cutting tool removes material to mould it into the desired shape.

CNC Milled Components: These tools are used to manufacture milled components, which are used to remove material from workpieces by moving the cutting tool in a variety of directions such as brackets, enclosures, and mould cavities.

CNC Drilled Components: Revolving cutting tools are used in the process of making holes in a workpiece. These are capable of precisely positioning and drilling holes of different diameters and depths.

CNC Swiss Machined Components: Swiss machining is a specialised form of CNC machining that is excellent at creating small, very precise components. These are ideal for precision instruments, medical equipment, and electronics.

CNC Laser Cut Components: Laser cutting uses a strong laser beam to pierce a variety of materials, including wood, plastic, and metal.

CNC EDM Parts: Electrical discharge machining is a technique for removing material from a workpiece by using electrical sparks. It is perfect for shaping complicated designs that are difficult to produce with conventional cutting tools and for milling hard materials.

CNC Wire Cut Components: Wire EDM makes precise cuts in complex designs using a thin, electrically charged wire.

Functions of CNC Machined Components

Manufacturing, automotive, aerospace, electronics, and other industries depend heavily on CNC (Computer Numerical Control) manufactured parts. CNC machines, which are automated instruments that execute pre-programmed instructions to cut, shape, and finish the desired parts, are used to manufacture these components. These are some of the main purposes of components made with CNC machines:

Precision Manufacturing: production of complicated and sophisticated components is made possible by the high levels of accuracy and precision offered by CNC machines. These parts frequently have to adhere to strict dimensional specifications because of their tight tolerances. The parts are created with great accuracy thanks to CNC machining, ensuring their consistency in quality and compatibility.

Customization and prototyping: CNC machining allows for a degree of flexibility when making prototypes and custom parts. The capacity to programme the machines allows for the creation of distinctive components that are suited to particular needs. This skill is useful in fields where prototyping and customization are necessary since it enables quick iteration and the creation of new goods.

Mass Production: The mass production of components also employs CNC machining. The machine can produce huge numbers of parts with high efficiency if it has been configured to perform the same processes properly and consistently. Because of this, CNC machining is appropriate for manufacturing sectors that need high-volume production runs.

Versatility in Material Compatibility: CNC machines can deal with a variety of materials, including plastics, composites, wood, and metals (such as aluminium, steel, and titanium). Due to its adaptability, CNC machined components can be employed in a variety of settings and sectors. Various materials might need particular tools and machining processes, but CNC machines can handle them rather easily.

Complex Geometries: CNC machining makes it feasible to produce components with intricate shapes and geometries that are difficult or impossible to realise using conventional machining techniques. The machines' ability to carry out complex tasks like drilling, milling, turning, threading, and other operations enables the development of elaborate shapes and features.

High Quality and Consistency: Precision CNC machining assures high-quality components. CNC machines are automated, which removes human error and lowers production variability to produce reliable and uniform parts. This is crucial in sectors where component interchangeability and quality assurance are essential.

Cost-Effectiveness: CNC machining can be cost-effective in the long run, especially for high-volume production, despite having greater initial setup costs than alternative manufacturing techniques. Once the machine is configured and programmed, it can work independently, which lowers labour costs and boosts production.

Top CNC Machined Components suppliers in India

Some of the suppliers in India are:

• MIFA Systems PVT. LTD.

• Success Technologies

• Victor Enterprise

• Punit Industries

• Shanghai Ehan-Am Co., LTD.

• JNE Co., LTD

• R R Engineering

• A.R. International

• Zenith Industries

• Daksh Enterprises

• J.K. Machines

• Vardhaman Industries

• Ajanta Engineers

• D.K. Brothers

FAQs: CNC Machined Components


Q. What are machined components?

Ans. Machined components create parts or objects by using the machining process. The machining process uses a variety of cutting tools and equipment to shape and mould raw materials into the desired finished product. In the context of manufacturing, a variety of materials, including metals, polymers, and composites, can be used to create machined components.

Automotive, aerospace, electronics, machinery, and many other fields and applications frequently require machined components. Depending on the needs of the finished product, they might have simple or sophisticated designs. High precision and accuracy are made possible through machining, allowing for the creation of complex shapes, close tolerances, and flawless surface finishes.

Gears, shafts, valves, pistons, bearings, brackets, and connections are a few examples of machined parts. These parts are frequently assembled into bigger machinery or systems, where their exact measurements and functional attributes are essential to their proper performance.

Q. What parts are CNC Machined?

Ans. Computer Numerical Control is a flexible manufacturing technique used to make precise and complex pieces out of a variety of materials. CNC machining is possible for a wide range of components, including but not restricted to:

Prototypes: Before going into mass production, prototypes are often made using CNC machining for testing and validation.

Components for industrial machinery: CNC machining is used to make gears, shafts, housings, brackets, and structural parts for a variety of industrial machinery.

Automotive parts: CNC machining is used to create parts for the brake system, the suspension, the engine, and the gearbox.

Aerospace parts: The production of crucial parts including airplane engine parts, turbine blades, landing gear components, and structural components uses CNC machining extensively.

Medical devices: CNC machining is used in the production of medical equipment, such as orthopaedic parts, surgical tools, implants, and prostheses.

Electronics: CNC machining is used to create circuit boards, connectors, heat sinks, enclosures, and other precise parts for electronic equipment.

Tooling: Moulds, dies, and other tooling components needed for various manufacturing processes are made using CNC machining.

Jewellery: Using CNC machining, sophisticated and precise jewellery items made of materials like metals and gemstones can be produced.

Custom components: CNC machining is frequently used to create parts that are specifically developed for applications where high precision and complex geometries are necessary.

Q. Which motor is used in CNC?

Ans. Depending on the exact application and requirements, different types of motors can be used with CNC equipment. In CNC machines, the following motor types are most frequently used:

Stepper motors: Due to their ability to give precise movement control, stepper motors are frequently utilised in CNC machines. They rotate incrementally or in small amounts, enabling precise alignment. Applications that demand precise positioning, such 3D printers, laser cutters, and small to medium-sized CNC mills and routers, frequently use stepper motors.

Servo motors: These are a further common option for CNC machines, particularly for larger and more intricate systems. High torque, high-speed operation, and superb control are all features of these motors. The position, speed, and acceleration of servo motors are accurately controlled via a feedback system (such as encoders). They are frequently utilised in industrial-grade CNC systems, CNC lathes, and CNC milling machines.

Brushless DC motors: CNC machines are used due to their dependability and efficiency. They keep a small size while having excellent torque and speed capabilities. Since BLDC motors don't have brushes, they require less maintenance and have a longer useful life. They are utilised in CNC spindles for applications requiring high-speed milling and machining.

Q. How can I buy CNC machined components online?

Ans. These steps can be used to purchase CNC-machined components online:

Find out what you need: Decide what CNC-machined components you require, and take account of their dimensions, construction, number, and any other requirements.

Research suppliers: Find trustworthy online manufacturers or suppliers who specialise in CNC machining by doing some research on potential sources.

Evaluate suppliers: Review the websites and online profiles of possible suppliers to gauge their qualifications, experience, and client feedback. Take into account elements such as their experience, certifications, quality control procedures, and client happiness.

Request quotes: By getting in touch with the suppliers who made the shortlist and giving them the details of your component, request quotations. Asking about any minimum order quantity is also beneficial.

Comparing quotes: Consider the cost, quality, lead times, and other aspects that are crucial to your particular needs when comparing bids from various vendors.

Place an order: Decide on the order's specifics, such as the quantity, payment conditions, and delivery timetable, after selecting a provider.
