Rotary Valves

What You Need to Know About Rotary Valves

Star valves, which are a type of rotary valve, are another name for these devices. These rotary feeders offer greater "air locking" plus material handling abilities at the same time, preventing air pressure loss during the changeover from gravity feed to pneumatic feed.

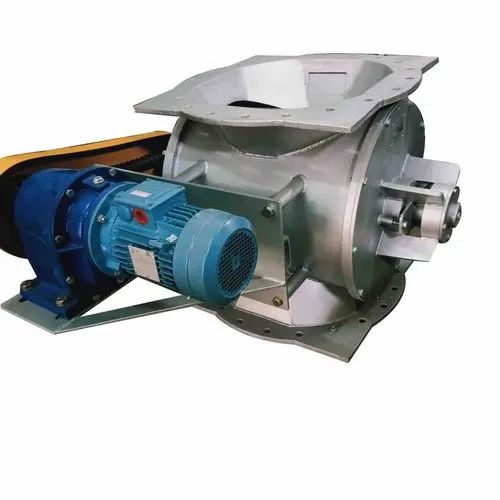

Rotary valves come in a variety of forms and functions. Here are some of the fundamental items and how they work:


1. Ceramic Rotary Valve

This device is regarded as a robust rotary valve because it is typically used to handle abrasive and tough materials.

2. Dust Collector Rotary Valve

An affordable rotary feeder, such items are a great option for those on a tighter budget. Cyclones, under hoppers, and dust collectors, it sees the most action.

3. Heavy Duty PAV Valve

Any application involving the control of a pressure differential and the handling of free-flowing, dry powders will benefit greatly from the installation of such rotary valves.

4. Quick Take Valve

Products like these are made for "Clean in Place" systems, which require the rotary valve to be removed at regular intervals.

Rotary Valves: Introduction

A rotary valve is only a mechanical mechanism for the uninterrupted release of powders and other bulk solids. The valve's operation inspired the name "rotary." Its name comes from the fact that the vanes inside it revolve to ensure a smooth functioning when handling bulk materials. In the field of bulk material management, the valve plays a key role.

Some of the things it's good at doing are:

• - (manage the circulation of large quantities of materials and
• - maintain a consistent air pressure within the system by blocking any air leaks. The rotary valve has two openings—an inlet port for admitting bulk material and an output port for discharging it.

At work, the rotor pockets on the rotor shaft carry the bulk material from the inlet across the housing surface and out the outlet. Each rotation can be broken down into two subtypes: load-side and return-side.

The former is defined as the rotation of the vanes and pockets from the inlet to the outlet, while the latter is defined as the reverse of the former but in the opposite direction. The valve's adaptability means it can be used in a wide variety of commercial settings.

Poor efficiency, premature equipment failure, hastened product deterioration, lost output due to process shutdowns, etc. can all result from a poorly operated valve.

Rotary Valves: Working Principles


Rotating valves consist of four main parts: the outer housing, the rotor, the rotor bearing and seal, and the drive.

 The valve's housing protects the valve's intake and outlet ports and the material going through the valve. The Rotary Valves is held in place by the bearing, and the shaft seal prevents debris from entering the inner housing of the valve.

The rotor's speed and direction are controlled by the driving mechanism (often an electric motor) that is externally installed on the rotor shaft. The product is introduced into the valve, dispersed uniformly across the outlets, and gathered in equal pockets between the rotor vanes.

These rotor vanes maintain pressure differentials thanks to their close clearance with the housing, which prevents pressure and material losses through the valve.

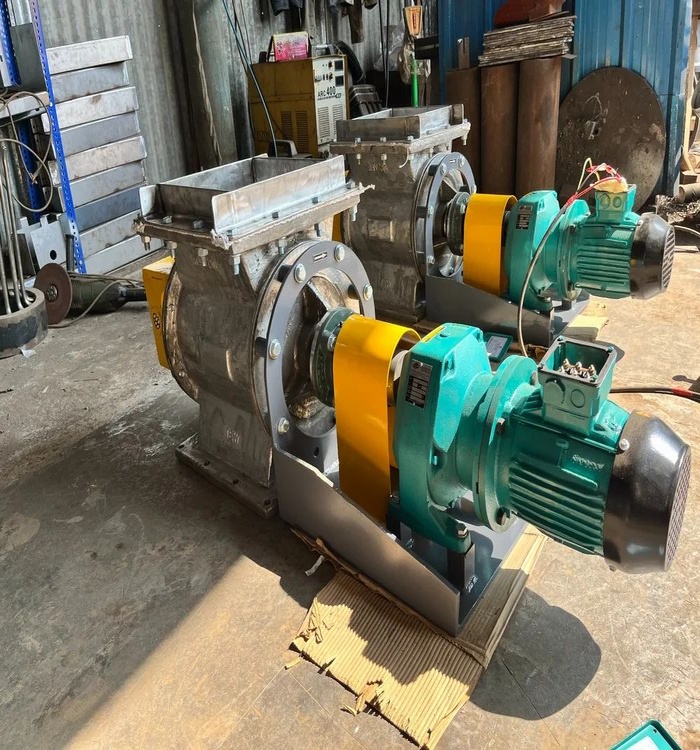

Rotary Valves: Types

1. Abrasion Rotary Airlock Valve

When dealing with extremely corrosive or abrasive materials, rotary airlock valves designed for such conditions are the best option. The housing is made of cast iron so that it can tolerate contact with corrosive and abrasive substances.

This rotary valve has the highest resilience to wear and tear and the longest lifespan of any on the market. Initially, it is lined, and then it is sharpened to a very precise tolerance.


2. Blow-Thru Rotary Airlock Valve

As a result of the rotor operating at lower speeds, wear is reduced, and efficiency is increased; this is especially true for very large rotors.

 Their low pressure drop, ease of maintenance, and minimal air leakage all contribute to a substantial ROI.


3. Heavy Duty PAV Series Rotary Valve

Just like their name implies, they are tough and long-lasting. To move dry, free-flowing powders from big bins into a pneumatic system while keeping pressure differential, manufacturers have created the heavy-duty PAV series.

Cast iron or stainless steel might be used for its construction.

High temperature applications call for the PAV family of heavy-duty rotary actuators. There is chrome, tungsten carbide coating for working with the corrosive or abrasive material.


4. Quick Take Rotary Airlock Valve

These was designed to improve production efficiency by cutting down on the time-consuming process of gapping the rotor during reassembly, as BAV Rotary Airlock valves are typically put to use in settings that call for frequent, in-and-out access to its rotary internal components for cleaning.

The materials utilized to make a Rotary Airlock are either stainless steel or cast iron.


5. Dust collector Rotary Valve

These series of rotary airlock valves find widespread application in dust collector and hopper discharge.

These rotary valves are ideal for use in environments with a low temperature and a small pressure difference

The rotary airlock valves in these series provide an air seal and do not require a set airflow rate for operation. They are a heavy-duty, cost-effective, and precise machine with eight-blade rotors.


6. BAV Rotary Airlock Valve

The BAV Rotary Airlock valve can be used in material handling applications that necessitate regular cleaning. The rail system and demountable rotor make it possible to remove the end plate and the rotor in one fell swoop without damaging either component. High efficiency is achieved in this type of rotor by:

• - Shorten the assembly and disassembly process by simply leaving a small gap in the rotor.
• - The rotor centers itself automatically for speedy construction.
• - Saves the operator from fatigue and the part from being damaged during handling
• - Assembling back together again after an inspection, maintenance, or cleaning is quick and straightforward.

7. Housing Rotary Valve

Depending on the use case, housings can be installed in either an inline or offset fashion. In most cases, the efficiency and practicality of inline housings, in which the intake is directly above the exit, win out.

The entrance and outlet of an offset housing are angled away from each other to prevent product shearing and overfilling.

There are additional plow-like designs and custom configurations available to get the best possible valve performance in a variety of circumstances.


8. Drive style Rotary Valve

Most rotary valves are powered by synchronous electric motors that are connected to reduction gearboxes and chains, allowing for precise control over rotational speeds.

The rotary valves' adaptability to rotary automation stems from the fact that their drives can accommodate extra speed monitoring devices and variable speed controllers.

Alternative power sources for larger rotary valves include hydraulic motors, which eliminate the need for a gearbox but are typically used only in niche situations.

It is usual practice to utilize rotary valves in air conveyor systems to limit the pressure drop across the valve, but they can also be used to control the flow of a variety of commodities. They have a wide variety of applications in the chemical, culinary, pharmaceutical, plastic, and other manufacturing sectors due to their ability to convey dry to fairly sticky products.

Each of these parts has a unique design. A rotor is also called a rotor assembly because it consists of a shaft and blades (or vanes) that are welded or cast together.

FAQs: Rotary Valves


Q. How to select the ideal rotary valves?

Ans: Here are the things to consider:

• - Blow-by air, or leakage: As materials travel through your system, an airlock maintains constant pressure. Nevertheless, leaking in your rotary airlock valve is par for the course.
• - Product Aeration: If you need to move materials quickly, you'll need a more powerful motor to run a pneumatic conveying system.
• - NFPA Standards: Due to their size, industrial valves can make it difficult to maintain the precise clearances necessary to meet NFPA standards; however, having several ports can make all the difference.
• - Shape: To prevent debris from being lodged in the rotors, the manufacturer creates U-shaped pockets. You won't have to spend as much time cleaning your machines, and you won't have to worry as much about material buildup that might cause blockages and poor material consistency.

Q. What is a rotary valve used for?

Ans: In the manufacturing industry, rotary valves can serve a variety of purposes, including bulk material handling, dust collection, and pneumatic conveying.

Q. Is a rotary valve better than a piston valve?

Ans: The sound of rotary valve instruments is claimed to be warmer and more expansive than that of piston valve instruments. Some tuba players, however, stick with piston valves because they allow for more crispness and definition in each note.

Q. How do rotary valves seal?

Ans: Similarly to the ceramic construction, the seals are of the floating variety. They have two piston rings and float in a cylinder-like chamber; when compressed, they seal with an efficiency of one hundred percent.

Q. How does a hydraulic rotary valve work?

Ans: Until it is necessary for the fluid in a system to move and fulfill its intended purpose, hydraulic rotary valves retain the fluid in a dormant state and stop its flow within the system.
