Automatic Seamless Cylinder Embossing Machine - Steel Plate Structure, 8 Tonne Weight, 1 Pcs/min Capacity | Cnc Technology, Mitsubishi Plc Control, Customized Color

Product Description
1. The fuselage is a steel plate welded structure, which requires good rigidity and stability. The fuselage weighs about 8 tons (excluding hydraulic system and loading and unloading systems).
2. The bottle body is positioned at the front, the electronic encoder is positioned accurately, the rear is positioned with a screw drive, and the rear cylinder pushes the front
The sliding seat moves back and forth on the guide rail.
3. The sliding seat moves back and forth on the guide rail, with automatic loading and unloading functions.
4. The production of cylinder with different diameters can be achieved by adjusting the center distance of the cylinder supporting rollers and the height of the roller base.

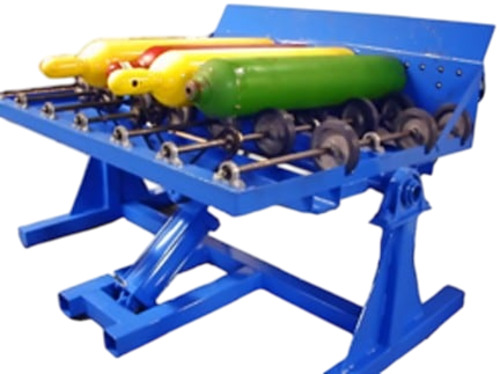

5. The rollers installed on the cylinder tray can move back and forth. When the workpiece is used for typing, the rollers of the cylinder tray can move up and down to protect the bottle from scratches on the workpiece.

Specification
Embossing
1.Embossing production beat (including loading and unloading time):
1)First row of 70-90pcs/hour
2)Second row 50i 70 pcs/hour
3)Three rows of 35i 45 pcs/hour
4)Four rows of 30-40 pcs/hour

2.The diameter of WORD rolling wheel is 650mm,The word code is arranged in a row, 200 characters can be arranged without spaces

Electrical control
1.Mitsubishi system PLC control, LED display, can realize automatic positioning, position value can also be input through the
keyboard, can realize automatic counting of class output.
2. Electronic encoder automatic detection-signal transmission-automatic editing, the detection accuracy is A 0.25mm (circumferential and radial), and the deviation of stamping line spacing is within 3mm.
3. The power supply is three-phase five-wire system, 415V, 50HZ
4. The total power of the equipment is about 15KW.
