All You Need to Know About Pipe Elbow


Introduction

Steel pipe elbows, also known as bends, are a crucial component of any pressure piping system. This fitting allows you to change the flow direction of a fluid by 45 or 90 degrees by joining two pipes of the same or different nominal diameters. Due to impact, friction, and re-acceleration, pressure losses are introduced into the system as a result of the fluid's flow changing direction.

Types of Pipe Elbow

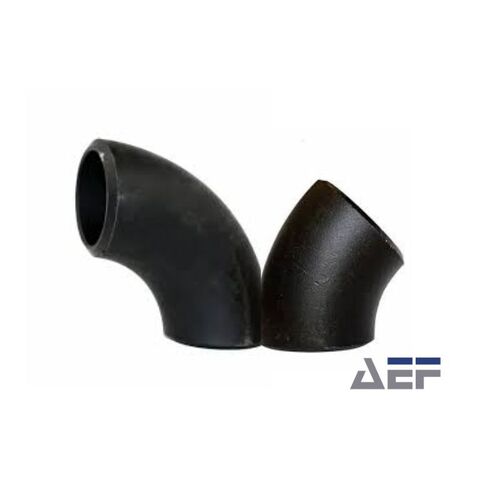

1. Butt Welded Elbow

An example of an elbow made of steel that is created by hot pressing or forging is called a butt weld elbow. The elbow and steel pipe are joined by being welded together directly. The ends of butt-welded elbows are beveled for convenience when welding. In the vast majority of instances, this bevel facilitates a full penetration weld. For greater pressure and temperature applications, butt welded elbows are typically the best choice.

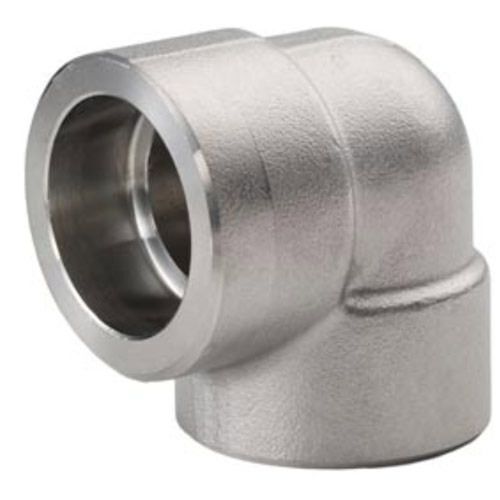

2. Socket Welded Elbow

There is a socket weld elbow welded onto the final section of pipe and fittings. The tip of a socket weld elbow is trapezoidal rather than round like that of a butt weld elbow. Welding will join the two pieces of pipe together once we insert the pipe end here (the SW elbow's inner diameter will match the pipe's outer diameter). Since the real diameter of the SW elbow end is larger than the diameter of the elbow, this is the case.

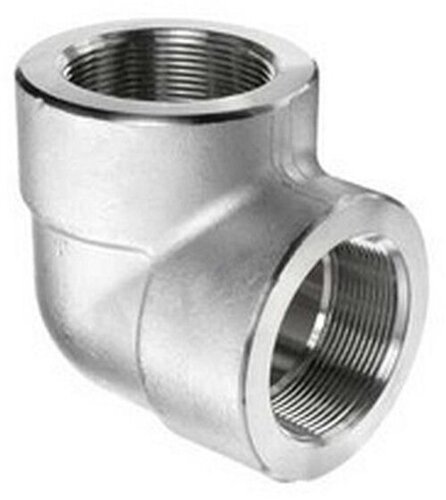

3. Threaded Elbow

A threaded elbow resembles a SW elbow, but its inner trapezoidal surface has been threaded. It is more convenient to set up and take down, which is ideal for rerouting and repairing pipes.

4. Grooved joint

Low-pressure drainage, service water at room temperature, and fire suppression systems all benefit from the use of grooved joints. Since they are easy to set up and dismantle, you can save money on labor.

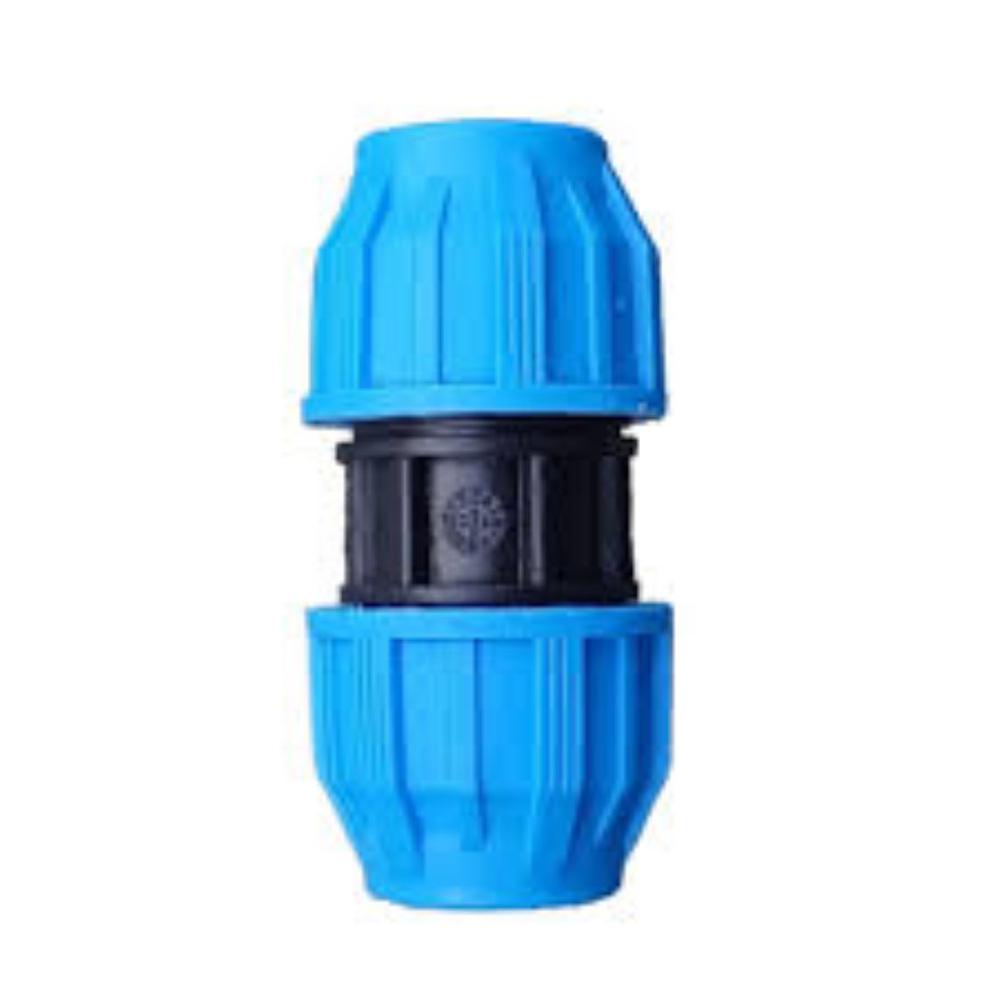

5. Compression joint

When joining two unfinished ends of pipe together, compression joints are the standard method. Such pipe connections can only tolerate a certain degree of thermal expansion and angular misalignment.

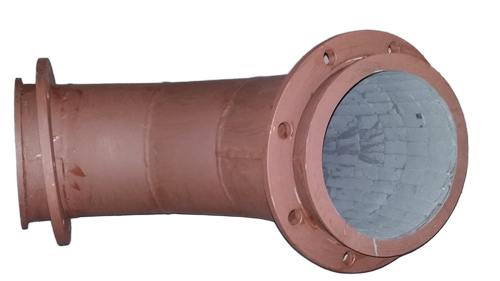

6. Flanged

Due to its ease of assembly and disassembly, flanged connections are commonly used in today's pipe and pipeline systems. The high price of the carbon steel flanges, the time and effort required to attach them to the pipe make this method prohibitively costly.

Choose The Thickness of Pipe Elbows


Some engineers incorrectly assume that carbon steel pipe fittings (elbows, tees, and reducers) require a thicker wall than the rest of the pipe to account for the increased stress they would experience.Even when using Pipe Elbow of the same pressure class, during field construction, the wall thickness of the elbows is slightly greater than that of the pipes. If the elbows are thickened, the wall thickness of the two pipes will not be constant, and the joints will not weld properly.

When a tube is bent at an angle (45 degrees, 90 degrees, 180 degrees, etc.), the exterior becomes more flexible than the inside. This can be avoided by specifying a "thicker" tube for the elbow, as per the pipe's outer thickness specification. To put it simply, the thickness needed on the inside is often double that on the outside.

The reason for this is that the thinnest part of the arm is at the back arc of the elbow, which is also the part that gets scoured the most. Wall thickness is raised exclusively to improve pressure bearing and scour resistance. Each component of a pressure piping system, such as an elbow or a valve, has its own application standard and must adhere to the principle of equal strength, which states that all elements within a given pipe must share the same medium adaptability, intensity, and life expectancy (removable parts, such as packing or gaskets, are excluded).

Classification of Pipe Elbows


There are a lot of ways to classify steel pipe elbows.

  • 1. Material of construction
  • 2. Connection with Pipe
  • 3. Direction Angle
  • 4. Length and Radius


Classification of elbows based on Direction Angel:

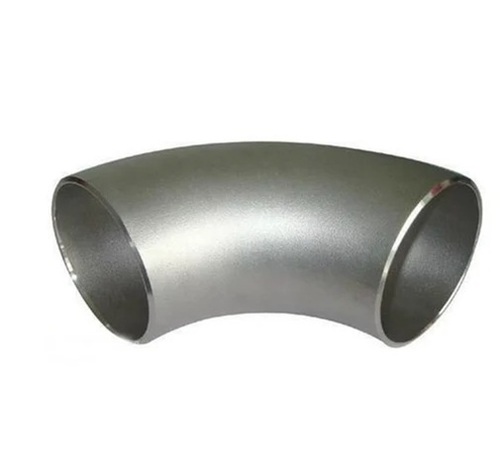

1. 90 Degree Pipe Elbow

a) - 90 Degree Elbow of Long Radius: This 90-degree steel pipe elbow connects two separate tubes or pipes. Changing course at a right angle (90 degrees) is useful. Hoses can be attached to the pump, drain, or valve on the deck with its help.

b) - 90 Degree Elbow of Sort Radius: The primary application is the same as the previously mentioned pipe, but the diameter is much smaller. So, this piping elbow is frequently employed when quarters are tight.

2. 45 Degree Steel Pipe Elbow

a) - 45 Degree Lr Steel Elbow: An elbow of this type is fitted at right angles to one of the pipes in order to effect a 45 degree direction change. As a result of reduced friction, pressure drops.

b) - 45 Degree SR Elbow: Elbows of this type are commonly used with metals like copper, plastic, steel, cast iron, and even lead. Clamps made of stainless steel and rubber might be used to secure it as well. Because of this, it has found extensive application in a wide variety of industries, including the chemical, food, water supply, electronic industrial, chemical, gardening, agricultural, solar power, and air conditioning industries.

3. 180 Degree Steel Elbow

This specific elbow can facilitate a 180-degree directional shift. Because of the low pressure it generates, it can only be used in systems with minimal deposit and little turbulence.

Pipe Elbow Dimensions


Nominal Pipe Size

Outside Diameter

Center To End





Inch

OD

A

B

C

3/4

26.7

38

19

-

1 1/2

48.3

57

29

38

2

60

70

38

56

2 1/2

74

90

46

68

3

89.0

118

56

75

3 1/2

101. 6

113

57

89

4

114.3

152

64

102

5

141.3

190

79

127

6

141.3

229

95

152

8

168.3

305

127

203

10

219.1

381

159

254

12

273.1

457

190

305

14

323.9

533

222

356

16

355.6

610

254

406

18

406.4

686

286

457

20

457.2

762

318

508

22

508

838

406

559

24

559

914

438

610

26

610

991

470

660

28

660

1067

502

711

30

711

1143

533

765


Different Applications of Pipe Elbow


A pipe joint is a device used to attach pipes together and act as a connection point for detachable parts and pipes. It's a crucial part of the hydraulic pipeline and one of the two main components. With the use of threaded connections or socket welding, instruments can be joined in a straight line at the pipe junction. Use it on a low-pressure pipeline with a small diameter for making fine changes to threaded pipe fittings or even for assembly and disassembly. Good integration of the connected products is fast and easy.

In terms of the structure, you should employ the surface contact sealing structure made of metal. Pipelines made of malleable cast iron often employ the gasket sealing structure for the transportation of water, oil, air, and other general fluids. Furthermore, costs and user requirements must be considered.

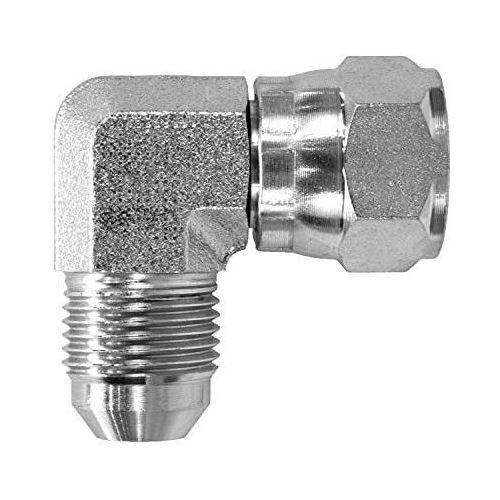

There are also variations in the hydraulic system's piping connection mode and piping junction. The thread of the screw matches the thread of the pipe connector. Because of its one-of-a-kind tightening and sealing action with polytetrafluoroethylene and other materials, taper thread is largely used in the intermediate and low-pressure hydraulic system. Although a combination washer, O-ring, and sometimes a copper washer are needed to seal the end face of a tiny thread, the thread's good sealing effect makes it a common choice for high-pressure systems.

The connecting pipe, joint body, and nut are the three main parts, and it is ideal for joining pipes with thicker walls. The gasket indicated above is used to seal the end face of the joint body once it has been implanted in the patient. The joint body and the connecting pipe are sealed with a rubber seal, and sometimes a spherical seal is used instead. The most common angles for pipe elbows are 45 degrees and 90 degrees. They are created for use in gas and fluid flow lines in a wide variety of industrial, medicinal, building, and other specialty applications. The elbows are made from robust materials for use in demanding environments, such as those requiring resistance to extremely high or low temperatures.

Buy Pipe Elbows Online


If someone is looking for affordable and high quality material pipe elbows for pipe fitting work, go for Trade India that offer one of the best pipe elbows and other pipe fitting items online in the best way.

FAQs: Pipe Elbows


Q. Where can we buy pipe elbows?

Ans. Pipe elbows can be bought from various online marketplaces and individual companies. A B2B platform is the best place to buy pipe elbows in bulk quantity. Buyers should look for the most trusted online markets having a credible track record.

Q. What is the purpose of a pipe elbow?

Ans. A pipe elbow is a type of pipe fitting designed for the purpose of changing the direction of liquid flow in a pipeline.

Q. What is meant by the radius of pipe elbow?

Ans. Radius of pipe elbow represents the radius of the circle which will be made by the arc of the elbow when completing a 360o turn. In such settings, the radius is taken as the centre line of one end of the elbow to the centre line of the opposite face.

Q. What is reducing elbow?

Ans. A reducing elbow is a type of elbow that connects two pipes of different sizes. Such elbows have one end smaller in diameter than the other end. These elbows are used to reduce pressure of the flow of liquid at the smaller end.

Q. What is the most common connection type of pipe elbows?

Ans. Butt weld connection is the most common type of elbow connection in which end to end connection is established by welding the two ends of elbow to the connecting pipes. In such connections, edges of the pipes with the edges of elbows are welded together unlike socket weld in which the end of pipes snugly fits inside the socket end of elbows and then welded.


Related Topic:

Pipe Elbow Manufacturers & Suppliers in India - Top 10 Companies
