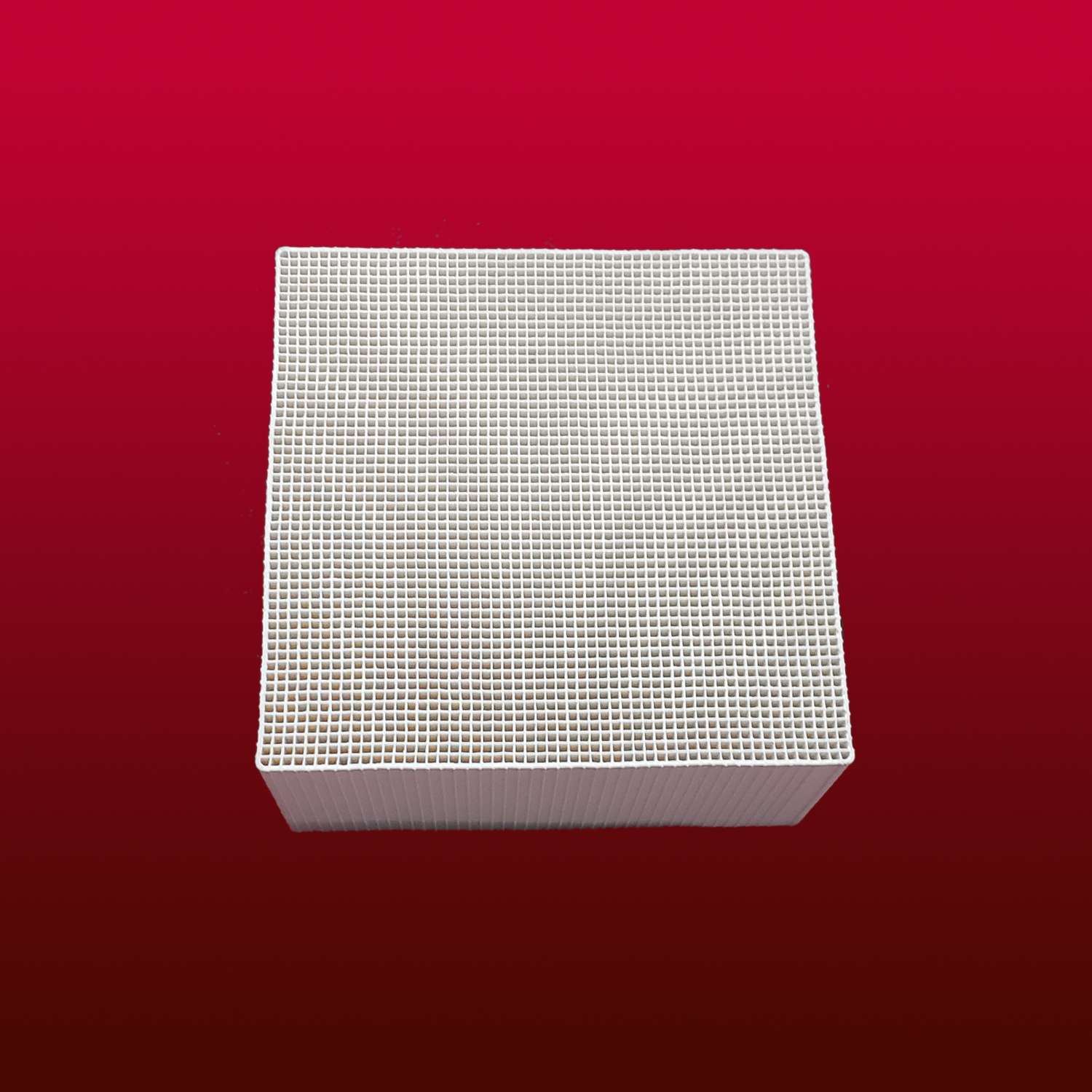

Htac Technology - Honeycomb Ceramic Regenerator, 80-150 Mm Diameter, White Color, 50-190 Mm Height, 80-90% Efficiency | Reduces Nox Emissions, Saves Fuel By 25%-30%, Increases Production Over 15%

5

5

put the filter into environment protect equipment

Put the catalyst carrier into the environmental protection equipment

Three years

Three years

0.8 mpa

1.2 mpa

2-45kg/s

2-45kg/s

80-90%

80-90%

80-150 Millimeter (mm)

150 Millimeter (mm)

80-150

150*150*50

80-150 Millimeter (mm)

150 Millimeter (mm)

80-150 Millimeter (mm)

150 Millimeter (mm)

80-150 Millimeter (mm)

150 Millimeter (mm)

white

white

All India

All India

hemical & Physical Analysis: Name Alumina Dense Cordierite Porous Cordierite Dense Alumina Mullite Corundum mullite Density(g/cm3) 2.0~2.3 2.1 ~2.5 1.7 ~2.0 2.4 ~2.7 2.0 ~2.5 2.3 ~2.7 Coefficient of heat expansion (A 10-6K-1) (20~800A C) a 5 a 3.5 a 3.0 a 5 a 5 a 6 Specific Heat (J/Kg.K) (20~1000A C) 900-1150 900-1100 900-1150 1000-1150 1000-1150 1100-1300 Thermal Conductivity (W/m.k) (20~1000A C) 1.5-2.0 1.5-2.5 1.2-1.8 1.5-2.5 1.5-2.0 1.5-2.5 Impact Thermal Resistance (A C/min) a Y450 a Y500 a Y500 a Y450 a Y500 a Y450 Max. Working Tem.(A C) 1350 1320 1320 1350 1450 1550 Water absorption(%) 15-25 a 1 15-25 a 1 15-25 15-25 Compressive strength(MPa) A axis a Y32 a Y29 a Y34 a Y36 a Y28 a Y39 B axis a Y8 a Y6 a Y8 a Y8 a Y8 a Y10 Chemical composition (%) Al2O3 55-65 25-38 28-38 55-65 60-70 70-80 SiO2 25-35 50-60 45-55 25-35 25-35 15-25 MgO 1-3 5-10 12-14 3-5 0-1 0-2 others <5 <5 <5 <5 <5 <5 Available sizes for honeycomb ceramic (mm) Quantity of channels Wall thickness Channel Width Surface area Void section Packaging density Weight per piece 150A 150A 300 25x25 1.0mm 4.96mm 580m2/m3 68% 696kg/m3 4.7kg 150A 150A 300 40x40 0.7mm 3.03mm 891m2/m3 65% 814kg/m3 5.5kg 150A 150A 300 50x50 0.6mm 2.39mm 1090m2/m3 63% 903kg/m3 6.1kg 150A 150A 300 60x60 0.5mm 1.99mm 1303m2/m3 63% 932kg/m3 6.3kg 150x100x100 40x40 1mm 2.5mm 784m2/m3 49% 799kg/m3 1.2kg 150x100x100 33x33 1.1mm 3.0mm 691m2/m3 52% 750kg/m3 1.13kg 150x100x100 20x20 2.0mm 5.0mm 392m2/m3 49% 692kg/m3 1.04kg 100x100x100 40x40 1.0mm 2.5mm 784m2/m3 49% 810kg/m3 0.81kg 100x100x100 33x33 1.1mm 3.0mm 691m2/m3 52% 750kg/m3 0.75kg 100x100x100 20x20 2.0mm 5.0mm 392m2/m3 49% 680kg/m3 0.68kg Other shapes, size, specification and material are available.

Advantages Large specific surface area Low coefficient of thermal expansion High temperature stability & Excellent thermal shock resistance Rapid light-off System cost most efficiency Chemical & Physical Properties Items Parameters Chemical composition (%) SiO2 49-15 Al2O3 33-35 MgO 13-14 Wall thickness(mm) 100 cpsi 0.43 200 cpsi 0.32 300cpsi 0.30 400cpsi 0.18 600cpsi 0.15 Compressive Strength (MPa) A--Cut (Parallel to Channels) >16 B--Cut(vertical to Channels >3 Water Absorptioin(%) 25+- 2 Coefficient of Thermal Expension 0.8-2.0 Maximum Operating Temperature 1370 C Bulk Density (kg/L ) 0.43-0.75

Sample costs shipping and taxes has to be paid by the buyer

Free samples available with shipping and taxes paid by the buyer

Days after Acceptance (DA)

Letter of Credit at Sight (Sight L/C)
