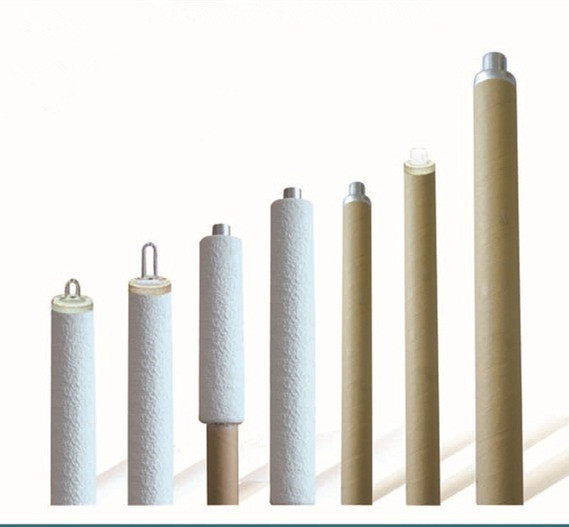

Fast Immersion Consumable Thermocouple For Steelmaking And Foundry Density: 2.2 Gram Per Cubic Meter (G/m3)
Price: nan USD / Piece
Get Latest Price
Minimum Order Quantity :
5000 Piece
Brand Name :
Sf
In Stock
Product Specifications
| Weight | 26=-800 Grams (g) |
| Color | grey |
| Product Type | mass production |
| Capacity | 11 Pcs/min |
| Material | fiber casing pipe |
| Usage | Industrial |
| Theory | Temperature Sensor |
| Customized | Length of protect tube |
| Density | 2.2 Gram per cubic meter (g/m3) |
| Measuring Range | 800-1700 Celsius (oC) |
| Precision | 3 |
| Protecting Tube Material | Straight poll paper tube ,obliqe poll paper ,flame-resistant fiber tube |
| Sensor Type | temperature sensor |
| Temperature Range | 0-1700 Celsius (oC) |
| Tensile Strength | 1.2 Megapascals (MPa ) |
| Tolerance | 5 Millimeter (mm) |
| Wire Length | 300-1200 Millimeter (mm) |
| FOB Port | TIANJIN SHANGHANG ,CHINA |
| Payment Terms | Letter of Credit (L/C), Western Union, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Delivery Point (DP), Days after Acceptance (DA) |
| Supply Ability | 400000 Per Year |
| Delivery Time | 15-25 Days |
| Sample Available | Yes |
| Sample Policy | Free samples available with shipping and taxes paid by the buyer |
| Packaging Details | carton and pallet |
| Main Export Market(s) | Western Europe, Australia, Eastern Europe, Central America, Middle East, South America, Asia, North America, Africa |
| Main Domestic Market | All India |
| Certifications | Features1. The world standard thread is the "heart" of the thermocouple tip and even the entire thermometer.2. Excellent accuracy. Tolerance within 1.5 degrees Celsius.3. It can be handled safely.4. Long service life, three to five times that of multi-immersion type; about 10 times that of multi-immersion type splash proofing, with high safety and splash resistance.5. Range: 0 --- 1760 degrees Celsius.6. Rapid response, measuring time no more than 3 seconds, low thermal inertia, easy operation and maintenance.7. Standard length: 300mm, 400mm, 600mm, 900mm, 1200mm. The length has been changed according to your actual requirements. Paper tube outer diameter: 31mm, inner diameter: 18mm.8. Type: Decentralized proof type and non-decentralized proof typeUsage1, To select the appropriate length of protective paper tube and temperature measuring gun according to the object and scope of the measurement2, Attach the disposable thermocouple to the temperature measuring gun, make the pointer of the secondary instrument (or digital display) back to zero. Begin to measure.3, It is recommended to insert the disposable thermocouple in to the molten steel at the depth of 300-400mm. Do not touch the furnace wall or scum. Bring up the temperature measuring gun immediately after the secondary instrument get results. The soak time of disposable thermocouple in molten steel should less than 5 seconds, otherwise the gun may be burned out.4, Change the used thermocouple into a new one, and pause for a few minutes to get ready for the next measurement. Transport and storageBe careful when assembling and disassembling parts. Keep dry during transportation. Products should be put in boxes and stored in a warehouse with a relative humidity below 80%. Keep air circulation. The air should not contain harmful gases that may corrode products |
Product Overview
Key Features
The fast immersion consumable thermocouple is mainly composed of a temperature probe and a large paper tube. Weld the positive and negative poles of the temperature measuring probe to the compensation wire, which is embedded in a support frame covered by a small paper tube.
Company Details
Cangzhou Saifu Ceramic New Materials Co., LTD. is located in the guanting industrial park of Cangzhou city. Our company is a professional manufacturer that specializes in researching, developing, producing and selling. It has approved by ISO9001 quality system certification. Sefu company mainly produce and sell ceramic foam filter, honeycomb ceramic filter, foundry thermocouple, ceramic fiber products and etc. Its products are mainly used in iron casting, aluminum casting,steel casting, water treatment, air purification and other fields. Technical innovation is the soul of the enterprise. Relying on technology center, using advanced management method, the company provides quality of casting materials to customers all over the world. It has made high quality brand of ceramic filters in china. The company has the self-management import and export rights, products have been exported to Western Europe, North America, the Middle East, Southeast Asia and other countries and regions. We take pride in serving our customers. pursuing excellence, customer first " is the aim of the company. To create more economic benefit for clients is our goal.
Business Type
Exporter, Importer, Manufacturer, Supplier
Employee Count
300
Establishment
2013
Working Days
Monday To Friday
Payment Mode
Telegraphic Transfer (T/T)
Certification
ISO 9001:2015
