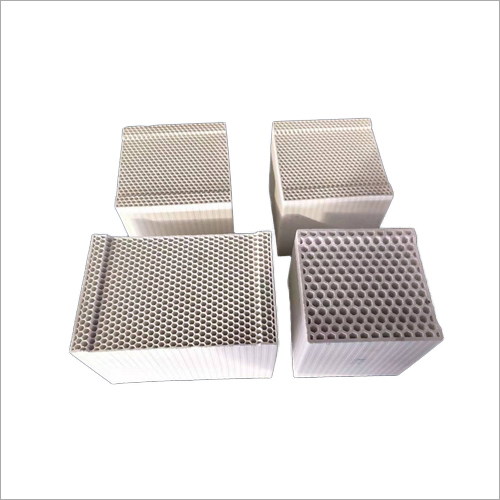

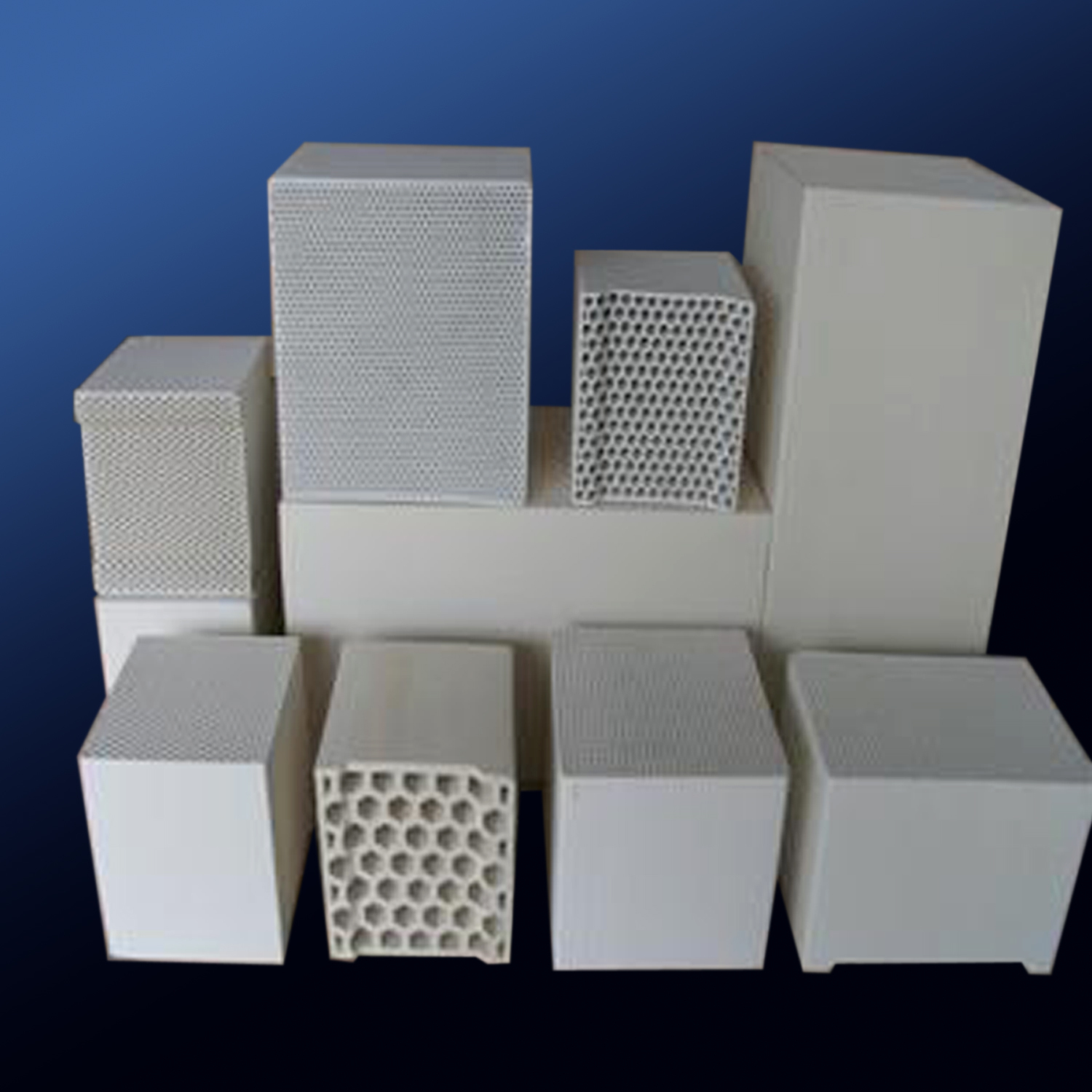

Honeycomb Ceramic Regenerator As Heatexchange Media For Rto Diameter: 150 Millimeter (Mm)

500 Piece/Pieces

2000 Piece/Pieces

Put it in large environmental protection equipment.

Put the catalyst carrier into the environmental protection equipment

white

white

rectangle

Round ,square ,custom geometric shapes

0.8 mpa

1.2 mpa

150 Millimeter (mm)

150 Millimeter (mm)

Three years

Three years

150 Nanometer (nm)

150 Millimeter (mm)

7-400csi

100-300CSI

2-45kg/s

2-45kg/s

It is mainly used for air filtration

Air filtration

2000000 Per Year

2000000 Per Year

carton and pallet

carton and pallet

All India

All India

Geometric data Size 150*150*300mm 150*150*300mm 150*150*300mm 150*150*300mm 150*150*300mm Number of channels 25*25 40*40 43*43 50*50 60*60 Channel width 4.9mm 3.0mm 3.0mm 2.4mm 2.0mm Inner walls 1.0mm 0.7mm 0.6mm 0.5mm 0.45mm Surface area 540m2/m3 825 1000 1050 1310 porosity 67% 65% 72% 63% 64% Product Benifit: High surface area High porosity ratio Small airway resistance Low thermal expansion coefficient Good resistance to chemical corrosion and thermal stability.high working temperature Material :Cordierite Cells Density :7A A A 400 CPSI Size :Customize Usage :Industrial Ceramic Honeycomb Color :white Shape :Squareness

Advantages Large specific surface area Low coefficient of thermal expansion High temperature stability & Excellent thermal shock resistance Rapid light-off System cost most efficiency Chemical & Physical Properties Items Parameters Chemical composition (%) SiO2 49-15 Al2O3 33-35 MgO 13-14 Wall thickness(mm) 100 cpsi 0.43 200 cpsi 0.32 300cpsi 0.30 400cpsi 0.18 600cpsi 0.15 Compressive Strength (MPa) A--Cut (Parallel to Channels) >16 B--Cut(vertical to Channels >3 Water Absorptioin(%) 25+- 2 Coefficient of Thermal Expension 0.8-2.0 Maximum Operating Temperature 1370 C Bulk Density (kg/L ) 0.43-0.75
