Ablation-resistant Fiberglass Mesh Filter Capacity: 10 Kg/hr

3000 Piece/Pieces

5000 Piece/Pieces

10 Kg/hr

1500 m3/hr

0.5-1.5 Millimeter (mm)

0.25-1 Millimeter (mm)

20-500 Millimeter (mm)

25-1000 Millimeter (mm)

20-500

25-1000

20-500 Millimeter (mm)

25-1000 Millimeter (mm)

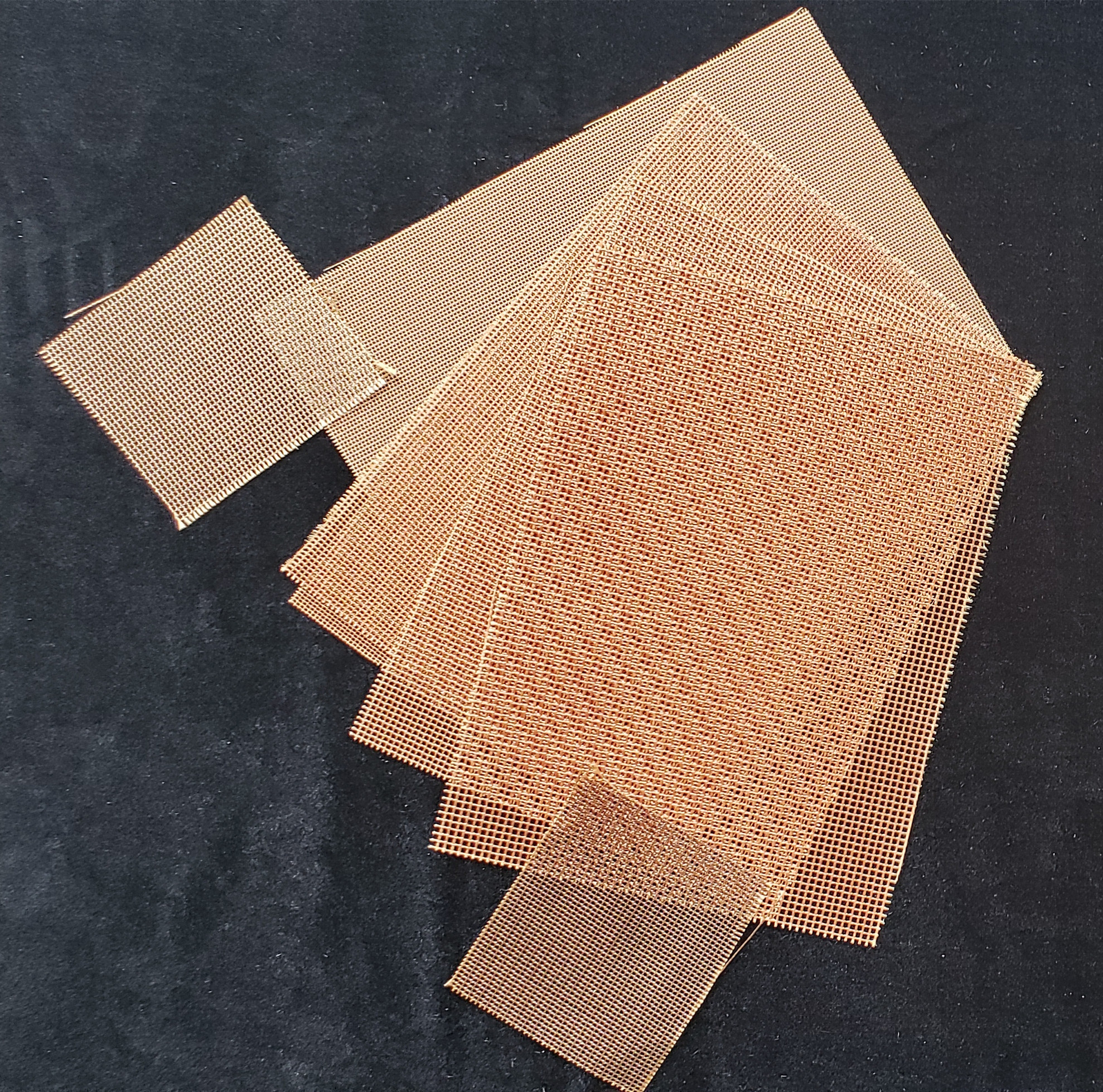

Fiberglass mesh filters are designed for filtration of iron,aluminum ,steel and ohter castings metal liquid.

for filtration of molten iron and steel

70%

55%

Yes

Yes

All India

All India

Advantages of silica glass fiber mesh filter: i . Effectively remove air bubbles in the molten metal, clamp ash oxides and other harmful impurities such as inclusions, thereby fundamentally eliminating pores, slag, sand hole castings, greatly increasing the output of castings, and improving internal quality and quality. The appearance of the casting. i .Improve the mechanical properties of the casting: it can increase the hardness of the casting, the surface hardness is uniform, and the bending strength of the casting can be improved. i . Change the graphite shape of the casting to reduce the graphite size, thin thickness and slightly curved shape. i . Change the processing performance of castings and improve processing efficiency. Product Size Item Dimensions & Color Color White and gold Aperture 5 mesh, 7mesh, 8mesh, 9mesh, 10mesh, 12mesh, 14mesh, 16mesh, 18mesh, 20mesh, 25mesh, and special specifications can be customized. Dimensions Size and shape of fiberglass filter bag, according to customer's requirement, and also drawing or samples. Mesh Size From 1.5mm to 3mm

Advantages: 1.Low cost and easy 2.A ImprovesA metalA distributionA 3.Removes micron sized inclusions and impurities 4.ProducesA minimalA odorA andA smokeA 5.Can be used with existing pattern equipment 6.Eliminates inclusions created by ceramic chips Applications: Cut pieces for in mold filtration like sand casting, gravity casting, etc. Cut pieces for riser sleeves, bottom or across ports in walls Cut pieces for provide a weakened plane for riser knock-off Cup shapes for investment castings filtration Technical data ITEM Molten A iron A filter MoltenA steel A filter Copper alloy A filter Aluminium alloyA filter Work temperature (A CA ) 1450 1600 1200 850 Lasting working timeA (MinuteA ) 10 5 10 10 The tensile strength of A normal atmospheric temperature Kg/4 > 8 > 16 > 6 > 6 Emit the quantity ofA gas (CmA /gA ) < 60 < 60 < 60 < 30 Available size Molten iron filter 1.5A 1.5mm, 2A 2mm, 2.5A 2.5mm Molten steel filter 1.5A 1.5mm, 2A 2mm, 2.5A 2.5mm

4000000 Per Month

2000000 Per Year
