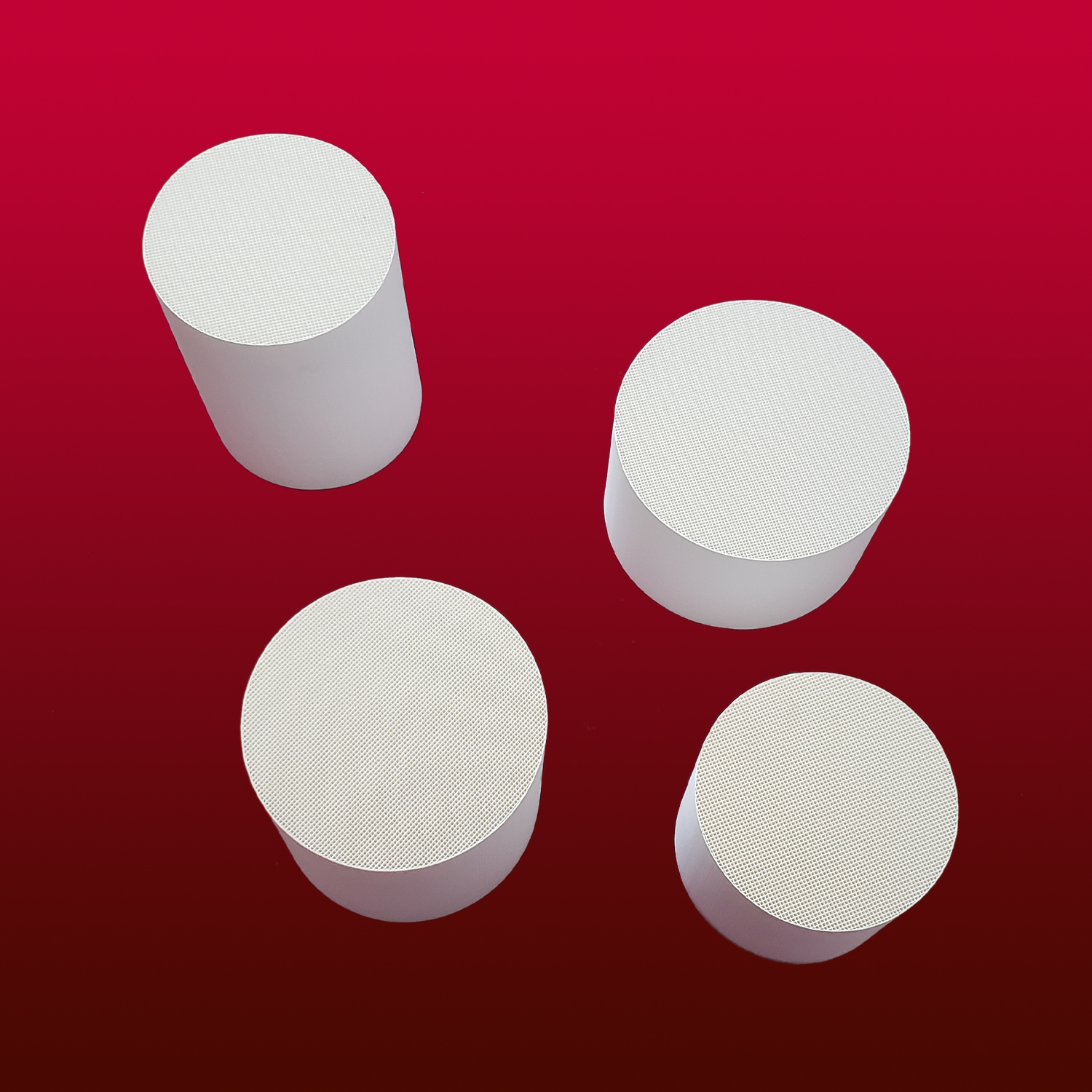

Voc Honeycomb Ceramic Catalyst Carrier Application: Mainly Used For Air Filtration

500 Piece/Pieces

2000 Piece/Pieces

100-5000 Grams (g)

800 Grams (g)

mass production

mass production

80-144

150*150*50

70-152 Millimeter (mm)

50 Millimeter (mm)

2-45kg/s

2-45kg/s

yellow ,white

white

Put it into environment protection equipment

Put the catalyst carrier into the environmental protection equipment

All India

All India

VOC substrate product function: 1). Good thermal performance: small thermal expansion coefficient (TEC), high resistance to thermal shock. 2). Good coating performance: good water absorption, small fluctuations, strong adsorption to the catalyst, and large surface area. 3). Good preheating performance: low material density, fast ignition, low pressure and high conversion rate. 4). High surface area: high CPSI, thin wall, low back pressure, high compressive strength. Application 1. VOCs waste gas treatment in petrochemical industry 2. VOC waste gas treatment in packaging and printing industry 3. VOC waste gas treatment in surface coating industry 4. VOC waste gas treatment in footwear industry 5. VOC waste gas treatment in the pharmaceutical industry 6. VOC waste gas treatment in other related industries 7. It can be used as a heat exchanger in the heat recovery device RTO. 8. It can be used as a catalyst to purify automobile exhaust and motorcycle exhaust to remove peculiar smell. 9. Applicable to food service industry, environmental protection industry, metallurgy industry, etc. Technical data: Material: cordierite, mullite ceramic Gasoline size: Diameter: 80-144, length: 70-152mm, Diesel size: Diameter: 170-330, length: 101.6-152.4mm Working temperature: 150A C-1200A C Channels: Circular, Oval Gasoline cell density: 50-400 CPSI Diesel cell density: 300 CPSI usage: Catalytic converter application: Catalytic gasoline and diesel particulate filter

Advantages Large specific surface area Low coefficient of thermal expansion High temperature stability & Excellent thermal shock resistance Rapid light-off System cost most efficiency Chemical & Physical Properties Items Parameters Chemical composition (%) SiO2 49-15 Al2O3 33-35 MgO 13-14 Wall thickness(mm) 100 cpsi 0.43 200 cpsi 0.32 300cpsi 0.30 400cpsi 0.18 600cpsi 0.15 Compressive Strength (MPa) A--Cut (Parallel to Channels) >16 B--Cut(vertical to Channels >3 Water Absorptioin(%) 25+- 2 Coefficient of Thermal Expension 0.8-2.0 Maximum Operating Temperature 1370 C Bulk Density (kg/L ) 0.43-0.75
