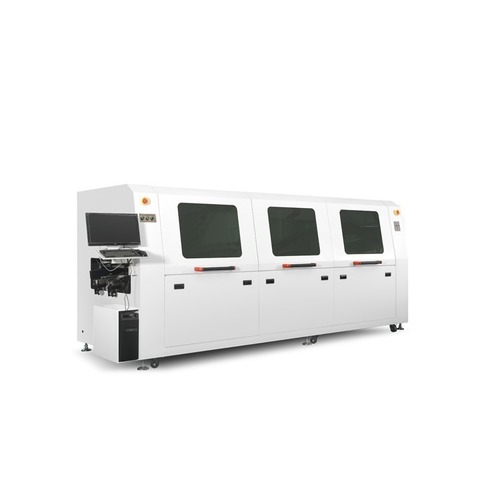

Smt Wave Soldering Machine

Working with high leadership in industrial competition, we are engaged as manufacturer and exporter of SMT Wave Soldering Machine in Shenzhen, Guangdong, China.

Specification:
Model No.
JAGUAR N300
Number of heating zones
3
Length of heating zones
1450mm
Body size
2950(L)*1250(W)*1560(H)
Outside dimension
3750(L)*1250(W)*1560(H)
Weight
1000KG
Total/running power
19KW/5-7KW
Air supply
0.5MPa
Preheating method
IR(standard)/Hot air
Preheating power
220V 6KW
Control method
PC +PLC/press keys/Touch screen
Range of temp. control
Room temperature---300A C
Preheating time
About 10-15mins for setting 150A C
Solder type
Lead-free / Sn-Pb
Solder pot capacity
280KG
Solder pot temperature
300A C
Solder power
380V 9KW
Solder temp. control method
PID&SSR
Wave crest drive power

1KW 220V
Warm-up time of solder
About 120mins for setting 250A C
PCB width
50-300mm
Convey speed
0-1800mm/min
Convey direction
La R (Ra L optional)
Convey angle
4-7 A
Flux pressure/capacity
3-5 bar/5.2L
