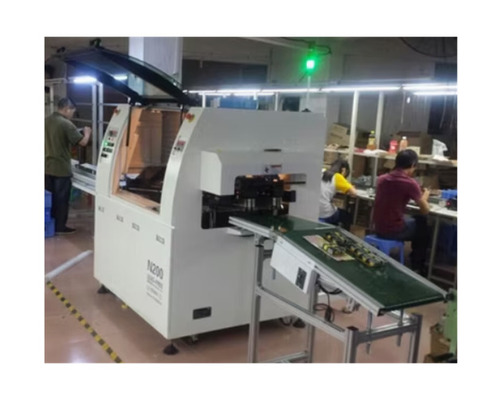

Lead Free Wave Soldering Machine For Dip Insertion Line

Being a developed and reputed company, we are engaged as manufacturer and exporter of Lead Free Wave Soldering Machine For Dip Insertion Line in Shenzhen, Guangdong, China available with following details.

Specification:
Model No JAGUAR N200
Number of heating zones 1
Length of heating zones 450mm
Body size 1400*1200*1600
Outside dimension 2100*1200*1600
Weight 500KG
Component lead Within 10 mm
Total/running power 9KW/3-5KW
Air supply 0.5MPa
Preheating method IR(standard)
Preheating power 220V 5KW
Control method Press key +PLCi Option: touch screen, PCi
Range of temp. control Room temperature---300A C
Preheating time About 10-15mins for setting 150A C
Solder type Lead-free / Sn-Pb
Solder pot capacity 180KG
Solder pot temperature 300A C
Solder power 380V 6KW
Solder temp. control method PID&SSR
Wave crest drive power 500W 220V
Warm-up time of solder About 120mins for setting 250A C
PCB width 50-250mm
Convey speed 300-1800mm/min
Convey direction La R (Ra L optional)
Convey angle 4-7 A
Flux pressure 3-5 bar
Flux capacity 3.2L
Introduction:
1. Automatic conveying power system and auto synchronous board feeding functions.
2.Tin stove peak uses frequency conversing speed adjustment which can independently control the wave peak height.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
