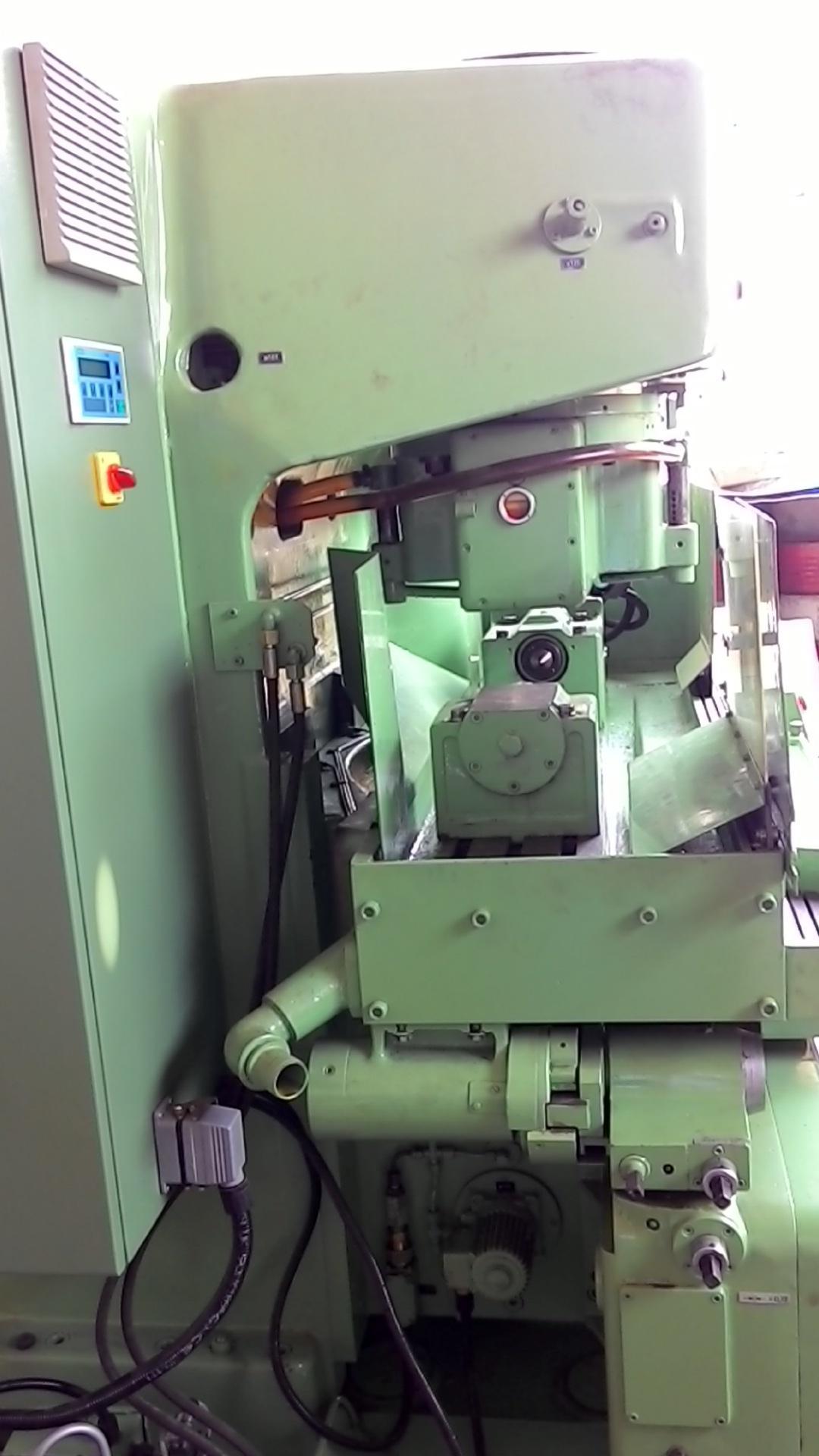

Hurth Zsa 220 Gear Shavers Machine For Sale

Machine Id:960
Model:ZSA 220
Make:Hurth
Year:0
Dimensions:
Power:
Location:Mumbai Warehosue, India

Category:Gear Shavers
Serial No:
Country:Germany
Type of Machine:Gear Related Machine
Weight:0.0
Asking Price:onrequest

Specification:
Rebuilt 2014 Machine, Like New.
Hurth Machine is ideal for parallel shaving,
cross shaving, and diagonal shaving of unhardened spur gears with straight or helical teeth



Centre height of tailstocks 115 mm

Clamping length between centres 750 mm



Gear 25 220 mm

Module 1 - 6

Gear width, max. 150 mm

Shaving cutter head swivelling +/- 23

8 speeds of cutter spindle 36 - 220 rpm

Dimensions of shaving cutter x width x bore 175 260 x 20 x 100 mm



Table swivelling 180



Table size, approx. 200 x 1100 mm

Table movement, horizontal 150 mm

Table movement, cross 20 mm

table movement, vertical 175 mm

automatic Vertical infeed 0,02 0,2 mm

8 Horizontal table feeds 14 130 mm/min



Total electrical load, approx. 5.5 kW - 380 V - 50 Hz

Weight, approx. 5,000 kg



Accessories / Special Features:

* Built-on under table mechanical Crowning Device, also for Taper Shaving

* Parallel Shaving Process / Diagonal Shaving Process / Underpass Shaving Process

* Semi-automatic Work Process Start by Hydraulic Closing of the Splash Guards

* Hydraulic tailstock on the right.

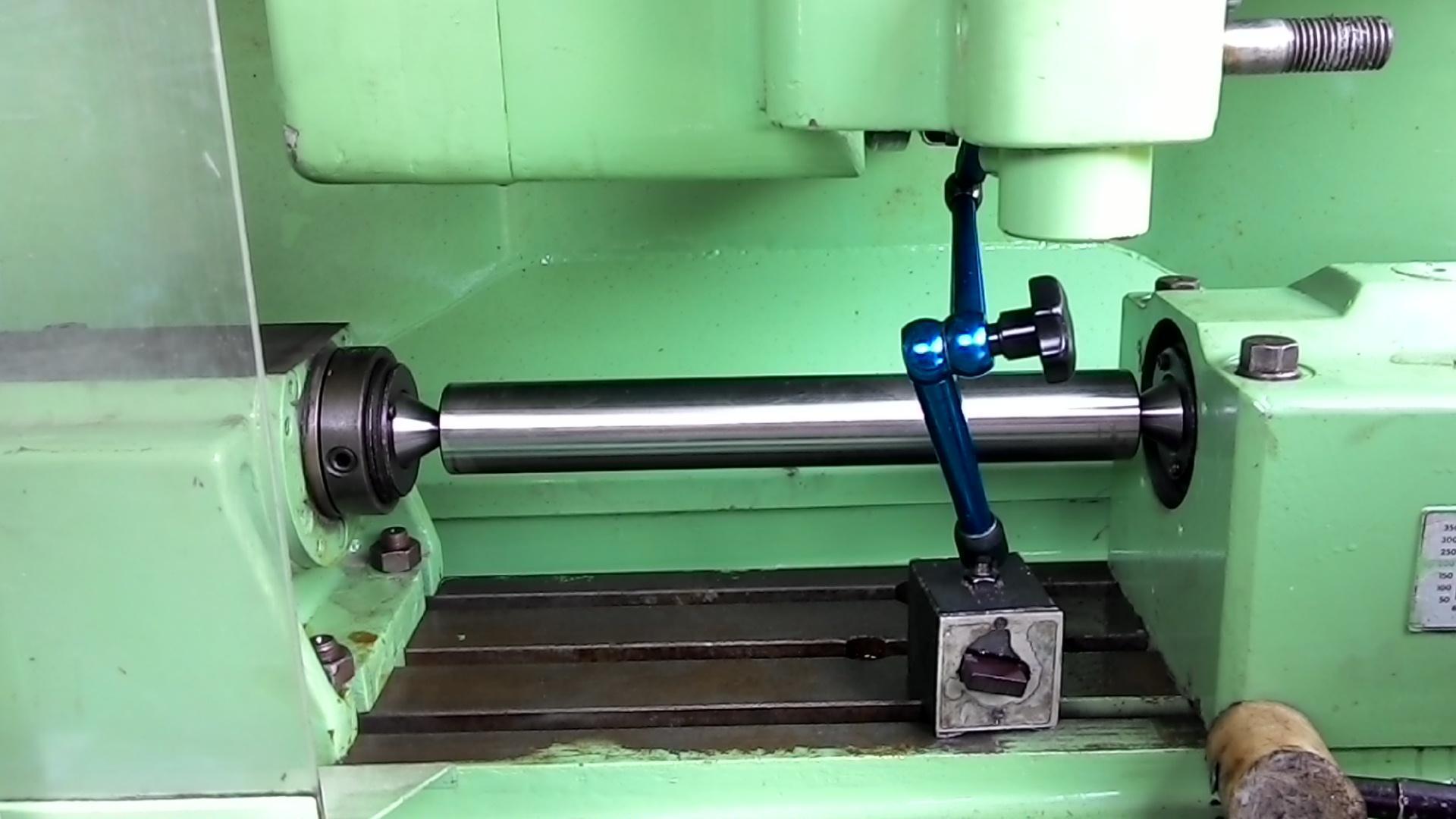

* Workpiece setting gauge.

* various change gears for speeds and table stroke.

* Cooling oil filter unit with pump and built-on centrifuge Model Z 15.

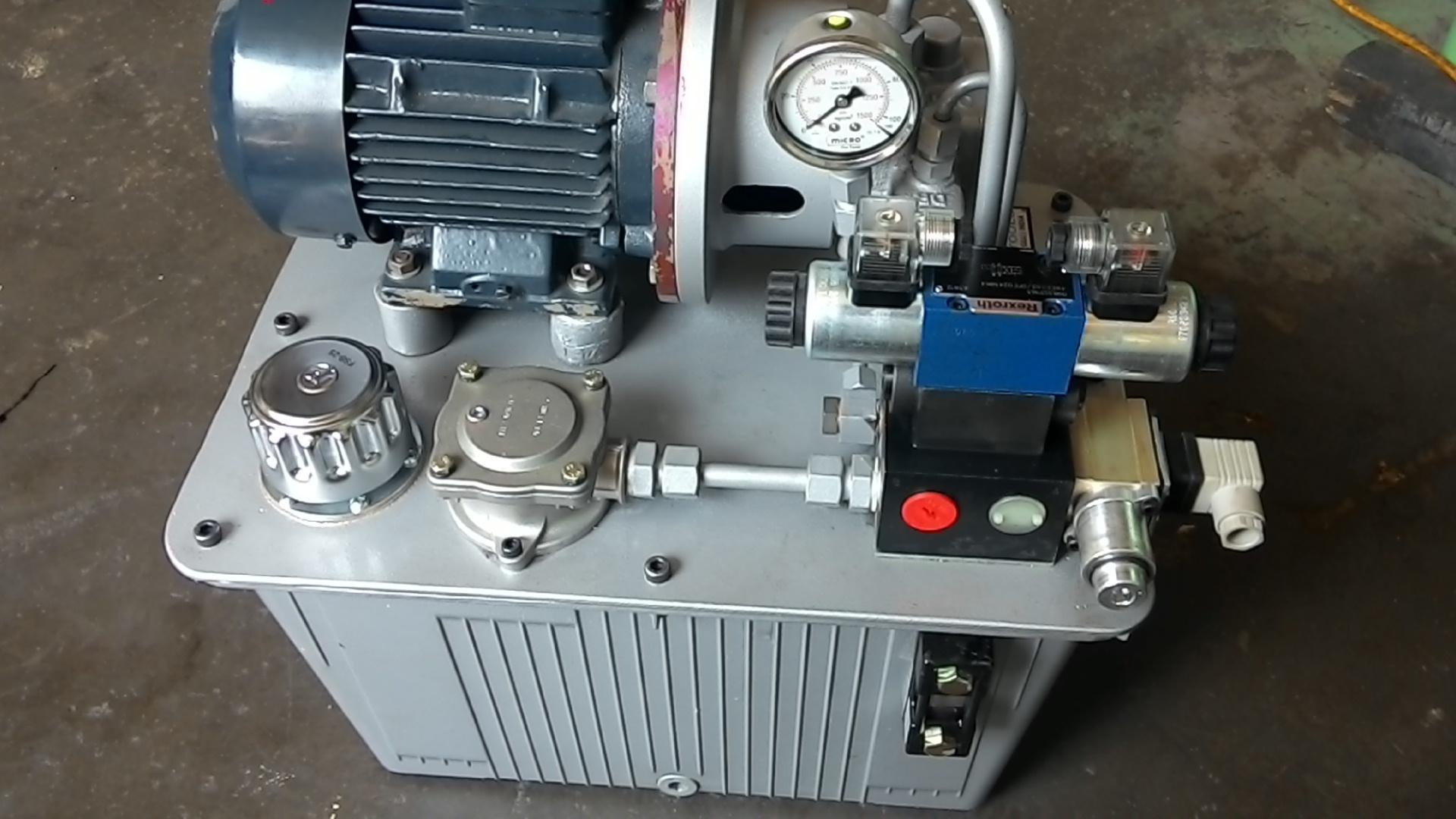

* Separate hydraulic unit.

* For and extra charge: selection of shaving cutters.





Machine is ideal for parallel shaving, cross shaving, and diagonal shaving of unhardened spur gears with straight or helical teeth.

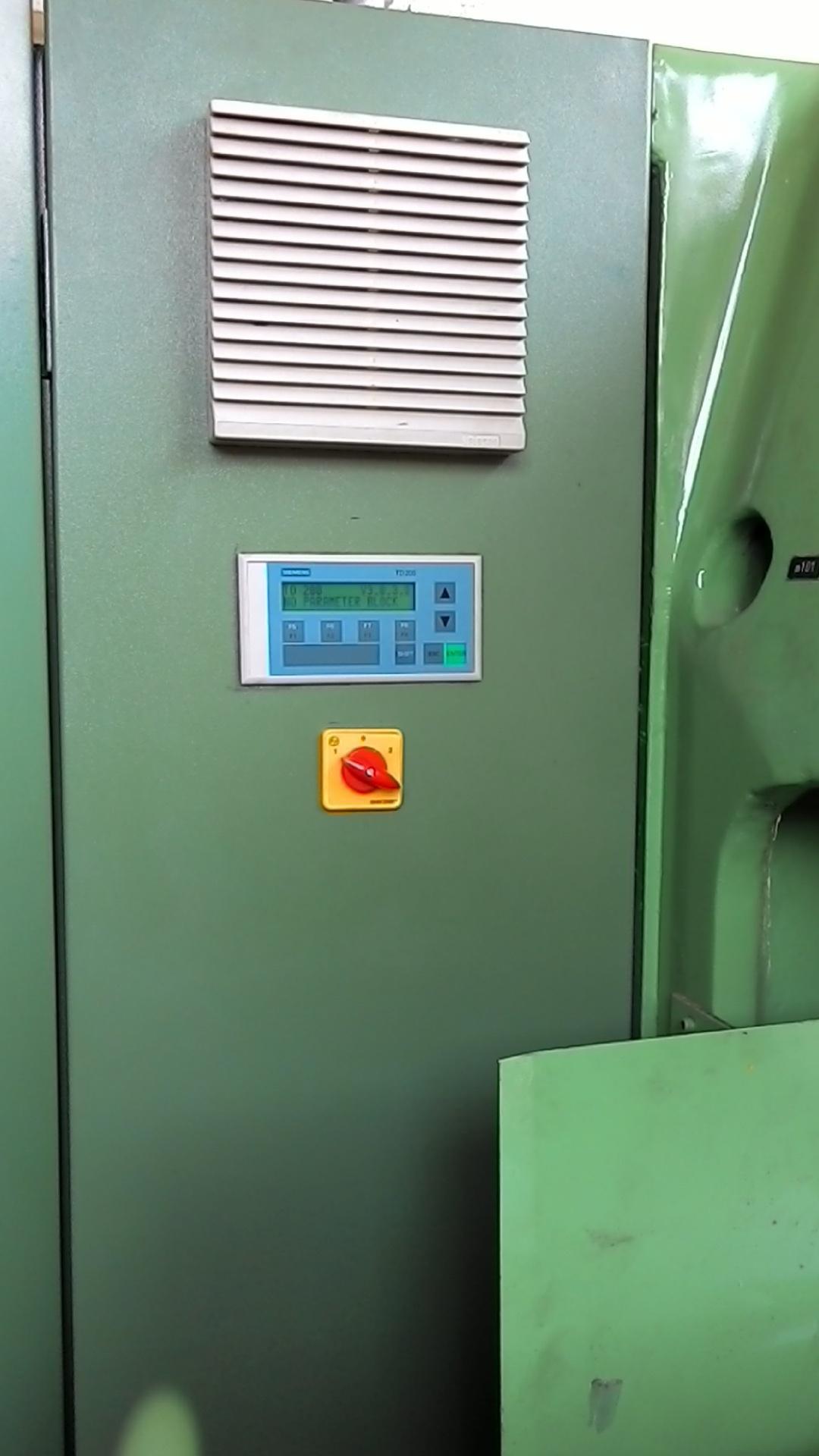

Machine is having AC VFD for Spindle Speed and Table traverse speed.



You can change Spindle speed and Table feed by POT.



For a particular change gears of both drive, Operator can change speed and feed up to certain limit practically it can take load.



This is a feature added to shaver m/c and prepared as an advance shaver machine
