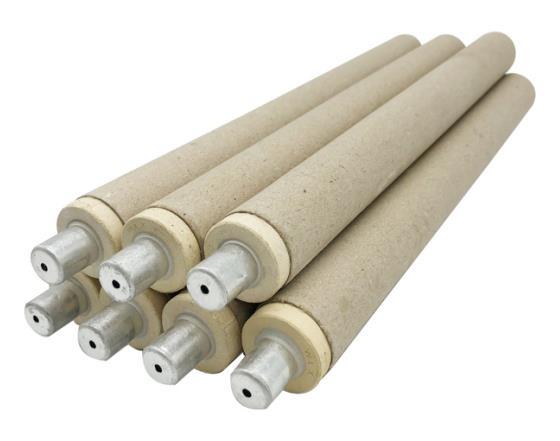

Fast Immersion Consumable Thermocouple For Steelmaking And Foundry Density: 25 Gram Per Cubic Meter (G/m3)
Price Trend: - 50.00 USD ($)
Get Latest Price
Minimum Order Quantity :
3000 Piece
Brand Name :
Sf
In Stock
Product Specifications
| Operate Method | It is recommended to insert the disposable thermocouple in to the molten steel at the depth of 300-400mm. Do not touch the furnace wall or scum. Bring up the temperature measuring gun immediately after the secondary instrument get results. The soak time of disposable thermocouple in molten steel should less than 5 seconds, otherwise the gun may be burned out. |
| Power | 250 Watt (w) |
| Usage | It is recommended to insert the disposable thermocouple in to the molten steel at the depth of 300-400mm. |
| Product Type | mass production |
| Weight | 19-500 Grams (g) |
| Capacity | 50 Pcs/min |
| Color | GREY |
| Classification | B |
| Dimension (L*W*H) | (300-1200)*31 Millimeter (mm) |
| Application | The disposable thermocouple is used to measure the temperature of molten steel and high-temperature molten metal. Based on the thermoelectric effect of metal, it works according to the temperature difference between its two sides. |
| Material | The fast immersion consumable thermocouple is mainly composed of a temperature probe and a large paper tube |
| Theory | Temperature Recorder |
| Connection Method | welding |
| Customized | the length of protect tube |
| Density | 25 Gram per cubic meter (g/m3) |
| Measuring Range | 0-1760 Celsius (oC) |
| Melting Point | 1800 |
| Precision | 1.5 |
| Protecting Tube Material | Straight poll paper tube ,oblique poll paper |
| Sensor Type | temperature |
| Size | 300-1200 |
| Temperature Range | 0-1760 Celsius (oC) |
| Tensile Strength | 1.0 Megapascals (MPa ) |
| Tolerance | 0 - 3 Millimeter (mm) |
| Wire Length | 50-1200 Millimeter (mm) |
| FOB Port | TIANJIN SHANGHANG ,CHINA |
| Payment Terms | Letter of Credit (L/C), Western Union, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Delivery Point (DP), Days after Acceptance (DA) |
| Supply Ability | 2000000 Per Month |
| Delivery Time | 15-25 Days |
| Sample Available | Yes |
| Sample Policy | Free samples available with shipping and taxes paid by the buyer |
| Packaging Details | cartons and pallet |
| Main Export Market(s) | Australia, North America, Eastern Europe, Central America, Middle East, South America, Western Europe, Asia, Africa |
| Main Domestic Market | All India |
| Certifications | Features1. The world standard thread is the "heart" of the thermocouple tip and even the entire thermometer.2. Excellent accuracy. Tolerance within 1.5 degrees Celsius.3. It can be handled safely.4. Long service life, three to five times that of multi-immersion type; about 10 times that of multi-immersion type splash proofing, with high safety and splash resistance.5. Range: 0 --- 1760 degrees Celsius.6. Rapid response, measuring time no more than 3 seconds, low thermal inertia, easy operation and maintenance.7. Standard length: 300mm, 400mm, 600mm, 900mm, 1200mm. The length has been changed according to your actual requirements. Paper tube outer diameter: 31mm, inner diameter: 18mm.8. Type: Decentralized proof type and non-decentralized proof typeUsage1, To select the appropriate length of protective paper tube and temperature measuring gun according to the object and scope of the measurement2, Attach the disposable thermocouple to the temperature measuring gun, make the pointer of the secondary instrument (or digital display) back to zero. Begin to measure.3, It is recommended to insert the disposable thermocouple in to the molten steel at the depth of 300-400mm. Do not touch the furnace wall or scum. Bring up the temperature measuring gun immediately after the secondary instrument get results. The soak time of disposable thermocouple in molten steel should less than 5 seconds, otherwise the gun may be burned out.4, Change the used thermocouple into a new one, and pause for a few minutes to get ready for the next measurement. Transport and storageBe careful when assembling and disassembling parts. Keep dry during transportation. Products should be put in boxes and stored in a warehouse with a relative humidity below 80%. Keep air circulation. The air should not contain harmful gases that may corrode products |
Product Overview
Key Features
The fast immersion consumable thermocouple is mainly composed of a temperature probe and a large paper tube. Weld the positive and negative poles of the temperature measuring probe to the compensation wire, which is embedded in a support frame covered by a small paper tube.
