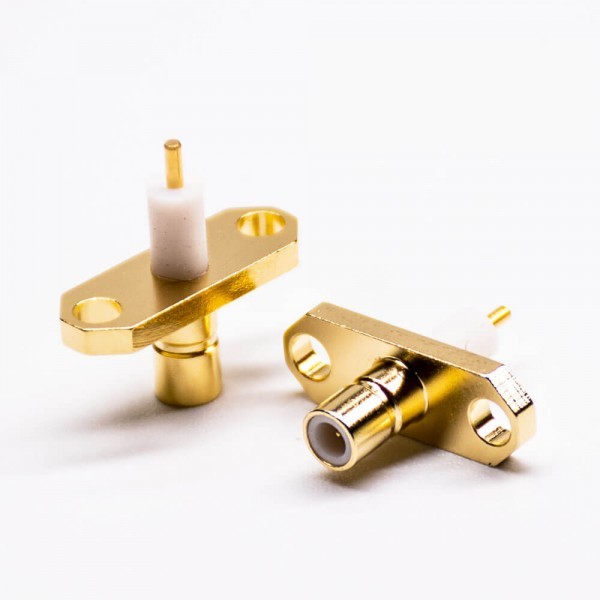

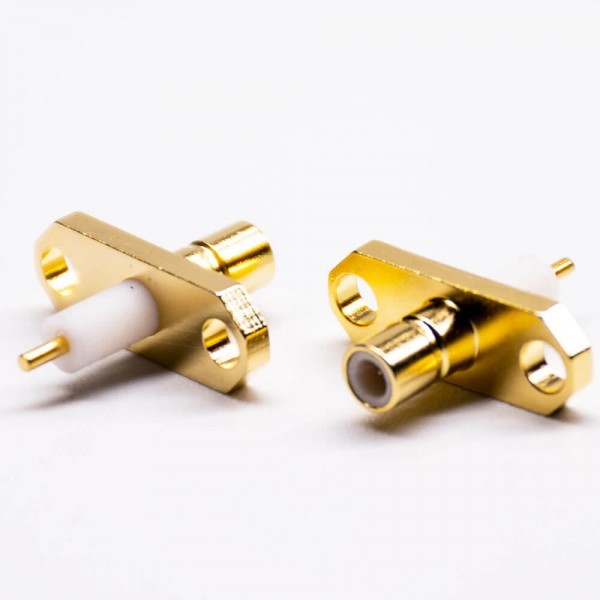

Smb Connector Female Pcb Straight Through Hole 2 Holes Flange With Extended Ptfe
Share

Smb Connector Female Pcb Straight Through Hole 2 Holes Flange With Extended Ptfe

Price: 65 INR / Piece

Get Latest Price

Minimum Order Quantity :

5 Piece

Brand Name :

3an Telecom

In Stock

In Stock

Product Specifications

Conductor TypeSolid
InsulationExtended PTFE
Locking TypeSnap-on (Push-on)
Tensile StrengthNot rated for tensile load
Number of Conductor1
Rated Temperature-65AdegC to +165AdegC
Install TypePCB Through Hole, Flange Mount
Operating Temperature-65AdegC to +165AdegC
Conductor ShapeOther, Straight pin
Impedance50 Ohms
DiameterOuter body approx. 6.4mm
WeightApprox. 3 grams
FeaturesCompact design, easy installation, high frequency performance, reliable locking mechanism, extended PTFE dielectric
Usage & ApplicationsRF PCB mount, communication devices, test equipment
Core MaterialBrass/Phosphor bronze
Core NumberSingle core
Dielectiric Strength1000V RMS min at sea level
Product TypeSMB Female PCB Straight Through Hole Connector
LengthStandard PCB Mount Length
VoltageOther, 335V RMS max at sea level
Insulation MaterialOther, PTFE (Extended)
ApplicationOther, RF communication, antenna connections, instrumentation, PCB mounting
Conductor MaterialOther, Brass/Phosphor bronze (Gold plated)
Storage Temperature-55AdegC to +165AdegC
Connector ColorGold plated and white PTFE
Shield MaterialBrass (Nickel or Gold plated)
Dimension (L*W*H)Approx. 20mm x 10mm x 8mm
ColorGold, White (PTFE)
MaterialBrass, PTFE, Phosphor Bronze
SizeStandard SMB flange size
Main Domestic MarketAll India

Product Overview

Key Features

Description:SMB Connector,Straight,Female,Through Hole,2 Holes Flange,50 Ohm,Gold plating
Features:
SMB Connector,Straight,Female,Through Hole,2 Holes Flange,50 Ohm,Gold plating;
Snap-on coupling design for fast installation;
With boardband performance and low reflection;
To reduce your Cost by using die casting process in non-critical areas.
From the OEM Original Factory, same quality with much better price.
Main Application of SMB Connectors:
Aerospace and Defense: Test Stands
Medical: Telemetry
Commercial Vehicle: GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications: Routers, WIFI, Radio Boards
Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation
