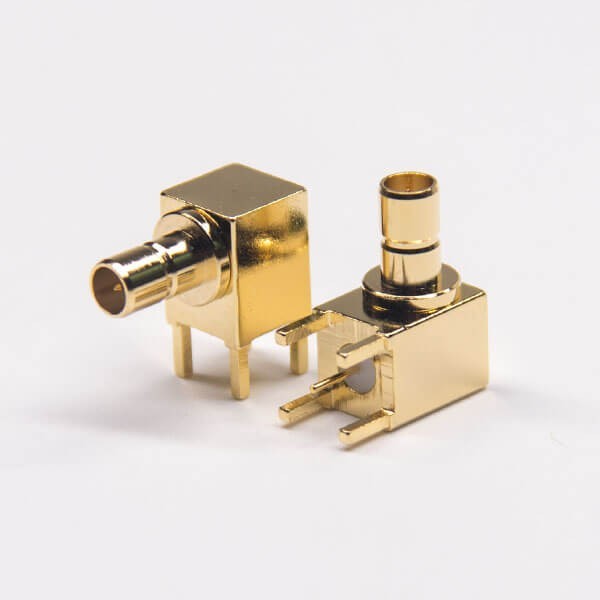

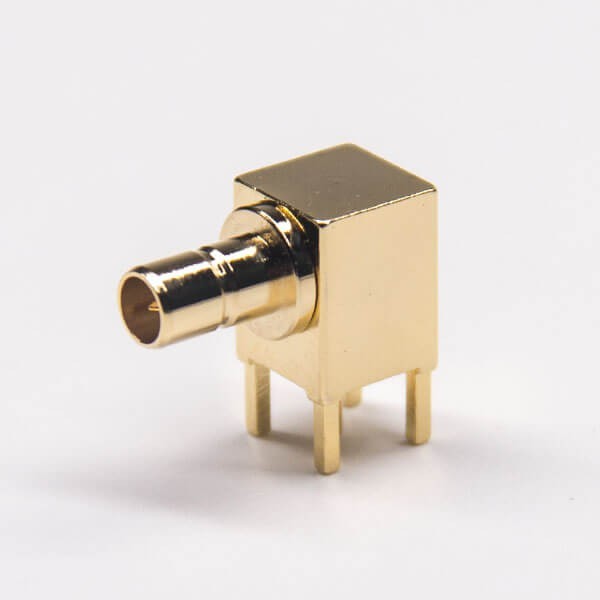

Female Smb Angled Throegh Hole Connector For Pcb Mount
Price: 65 INR / Piece
Get Latest Price
Minimum Order Quantity :
5 Piece
Brand Name :
3an Telecom
In Stock
Product Specifications
| Install Type | Through-hole soldering to PCB |
| Operating Temperature | -65AdegC to +165AdegC |
| Conductor Shape | Other, Straight pin |
| Impedance | 50 Ohms |
| Conductor Type | Solid |
| Insulation | PTFE dielectric |
| Locking Type | Snap-on push fit |
| Tensile Strength | High mechanical durability; tested as per MIL-STD |
| Number of Conductor | 1 |
| Rated Temperature | -55AdegC to +155AdegC |
| Cable Type | NA (PCB mount type) |
| Core Number | Single-core |
| Dielectiric Strength | a%0Y=1000 V RMS (50 Hz) |
| Diameter | Outer body approx. 4mm |
| Weight | Approx. 3 grams |
| Features | 90-degree right angle design, snap-on coupling mechanism, gold-plated contacts, low signal loss, compact size, durable build |
| Usage & Applications | RF modules, wireless communication, instrumentation, satellite receivers |
| Core Material | Brass |
| Product Type | Female SMB Angled Through Hole Connector for PCB Mount |
| Length | Standard for PCB mounting, custom lengths available upon request |
| Voltage | Other, 335 V RMS (maximum) |
| Insulation Material | Other, PTFE (Polytetrafluoroethylene) |
| Application | Other, RF signal transmission, PCB-to-PCB interconnection, antennas, test equipment, WLAN adapters, communication devices |
| Conductor Material | Other, Brass, gold-plated |
| Jacket Material | Other, None (typically PCB mounts do not have an external jacket) |
| Storage Temperature | -55AdegC to +155AdegC |
| Connector Color | Gold/Brass |
| Shield Material | Brass with nickel or gold plating |
| Jacket Color | Other, Not applicable (no jacket) |
| Dimension (L*W*H) | Approx. 18mm x 8mm x 10mm |
| Color | Gold/Brass |
| Material | Brass, PTFE insulation |
| Size | Standard SMB size (approx. 8mm width, 18mm length) |
| Main Domestic Market | All India |
Product Overview
Key Features
Features:
SMB Connector,Female,Angled,PCB Mount,Through Hole,Copper,Gold Plating;
Snap-on coupling design for fast installation;
With boardband performance and low reflection;
To reduce your Cost by using die casting process in non-critical areas.
From the OEM Original Factory, same quality with much better price.
Main Application of SMB Connectors:
Aerospace and Defense: Test Stands
Medical: Telemetry
Commercial Vehicle: GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications: Routers, WIFI, Radio Boards
Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation
