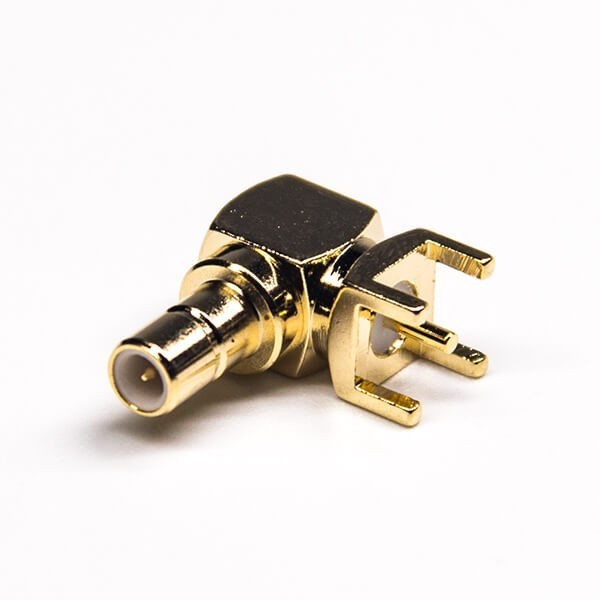

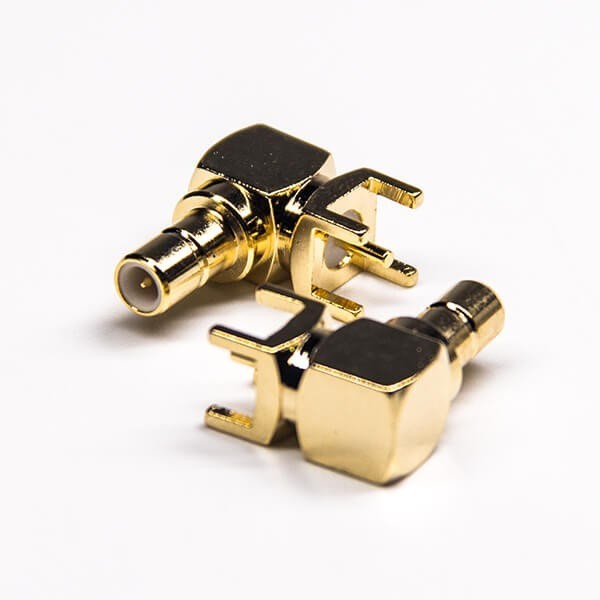

Smb Connector Male Right Angled Through Hole For Pcb Mount
Share

Smb Connector Male Right Angled Through Hole For Pcb Mount

Price: 56 INR / Piece

Get Latest Price

Minimum Order Quantity :

5 Piece

Brand Name :

3an Telecom

In Stock

In Stock

Product Specifications

Number of Conductor1
Conductor ShapeOther, Round pin
Usage & ApplicationsPrinted circuit board RF module connection, telecom, wireless, testing, and measurement equipment
FeaturesCompact design, snap-on coupling, high frequency performance, easy PCB mounting, right-angled type, secure connection
Cable TypePCB mount (not cable type)
Operating Temperature-65AdegC to +165AdegC
Tensile Strength60N min (center contact retention)
InsulationPTFE
Dielectiric Strength1000V RMS min
Diameter6mm (body outer diameter approx.)
WeightApprox. 2g each
Impedance50 Ohm
Conductor TypeSolid
Rated Temperature-65AdegC to +165AdegC
Install TypeThrough Hole, PCB Mounting
Locking TypeSnap-on coupling
Core NumberSingle core
Core MaterialBrass, Gold Plated
Product TypeSMB Connector Male Right Angled
LengthStandard as per design (Contact for custom length options)
VoltageOther, 500V RMS max
Insulation MaterialPTFE
ApplicationOther, RF signal transmission, PCB mounting for communication equipment, instrumentation, broadcast, wireless, GPS, and testing devices
Conductor MaterialOther, Brass, Gold Plated
Jacket MaterialOther, Gold-plated brass shell
Storage Temperature-40AdegC to +85AdegC
Connector ColorGold
Shield MaterialBrass, Gold Plated
Jacket ColorOther, Gold
Dimension (L*W*H)Approximately 18mm x 6mm x 12mm (varies by manufacturer)
ColorGold
MaterialBody: Brass, Gold Plated; Insulator: PTFE
SizeMiniature (standard SMB size)
Main Domestic MarketAll India

Product Overview

Key Features

Techinial Datasheet:
Electrical Characteristics
Impedance75 ohm
Frequency Range: 0~3 GHz
VSWR: Straight type 1.3max / R/A type 1.5max
Dielectric Withstanding Voltage: 1500 V rms
Working Voltage: 500 V rms
Center Contact Resistance:3mW
Outer Contact Resistance:25mW
Insultation Resistance:5GW
Mechanical Characteristics
Coupling: Snap-on
Contact Retention: 4 lbs min.
Mating Durability: 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
Environmental Characteristics: -65C ~ +165C
Vibration: MIL-STD-202 Meth.204
Corrosion Resistance: MIL-STD-202 Meth. 101
