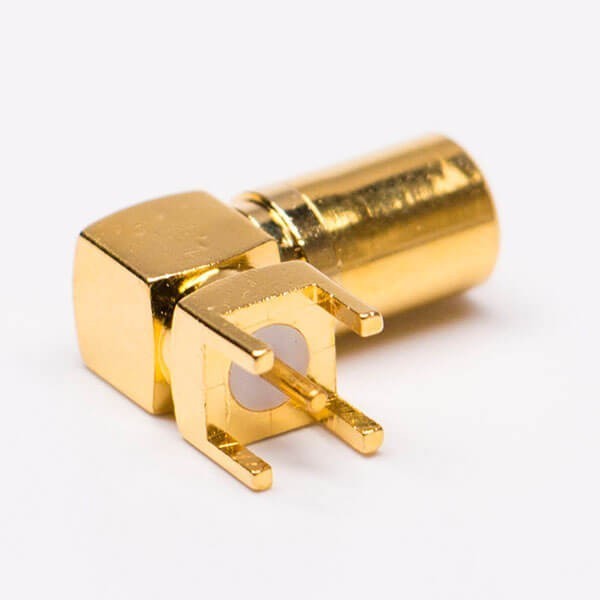

Smb Connector Male Angled Through Hole For Pcb Mount
Share

Smb Connector Male Angled Through Hole For Pcb Mount

Price: 55 INR / Piece

Get Latest Price

Minimum Order Quantity :

5 Piece

Brand Name :

3an Telecom

In Stock

In Stock

Product Specifications

DiameterOuter: ~7mm
InsulationPTFE
Tensile StrengthStandard mechanical strength, as per SMB spec
Cable TypeN/A (connector only)
Impedance50 Ohm
Operating Temperature-55AdegC to +155AdegC
Conductor TypeSolid
Core NumberSingle Core
Usage & ApplicationsRF, microwave, high-frequency signal PCB, test equipment, telecom
WeightApprox. 2aEUR"4 g
Install TypeThrough hole PCB mounting
Rated Temperature-55AdegC to +155AdegC
Armored MaterialN/A (connector only)
Dielectiric Strength1000 V RMS min
FeaturesQuick disconnect, snap-on coupling, suited for high-frequency PCB applications
Locking TypeSnap-on coupling
Number of Conductor1 (center pin)
Conductor ShapeRound
Core MaterialBrass
Product TypeAngled Male SMB Connector (Through Hole PCB Mount)
LengthStandard, as per connector body (~18mm)
VoltageOther, Up to 335 V RMS (typical)
Insulation MaterialOther, PTFE (Polytetrafluoroethylene)
ApplicationOther, RF circuit, wireless modules, GPS, communications
Conductor MaterialBrass
Jacket MaterialOther, N/A (connector only)
Storage Temperature-40AdegC to +85AdegC
Connector ColorGold/Tin plated
Shield MaterialBrass, Nickel or Gold Plated
Jacket ColorOther, N/A (connector only)
Dimension (L*W*H)~18mm x 7mm x 13mm (approx)
MaterialBrass body, PTFE insulator
ColorGold/Nickel finish
SizeStandard SMB (approx. 7mm body diameter)
Main Domestic MarketAll India

Product Overview

Key Features

Techinial Datasheet:
Electrical Characteristics
Impedance50 ohm
Frequency Range: 0~4 GHz
VSWR: Straight type 1.3max / R/A type 1.5max
Dielectric Withstanding Voltage:
1000 V rms min for RG316, RG402
750 V rms min. for RG178
Working Voltage:
335 V rms max. for RG316, RG402
250 V rms max. for RG178
Center Contact Resistance 6.0 m (Milliohms max.)
Outer Contact Resistance 1.5 m (Milliohms max.)
Insultation Resistance 1000 m(Megohms min.)
Mechanical Characteristics
Coupling: Snap-on
Contact Retention: 4 lbs min.
Mating Durability: 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
Environmental Characteristics: -65C ~ +155C
Vibration: MIL-STD-202 Meth.204
Corrosion Resistance: MIL-STD-202 Meth. 101
