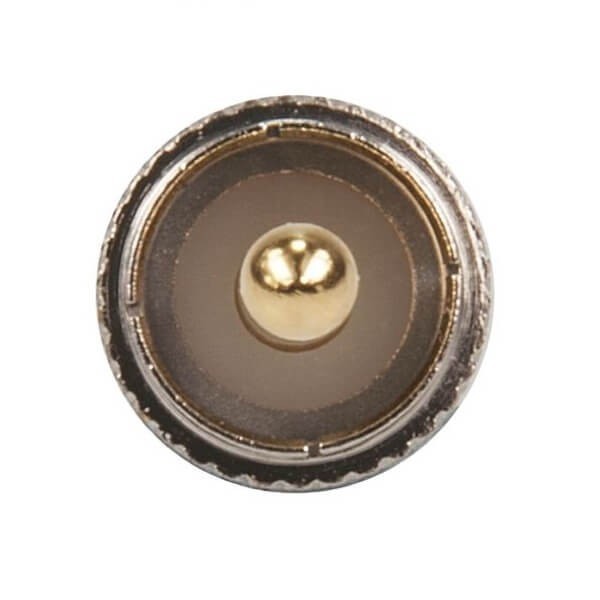

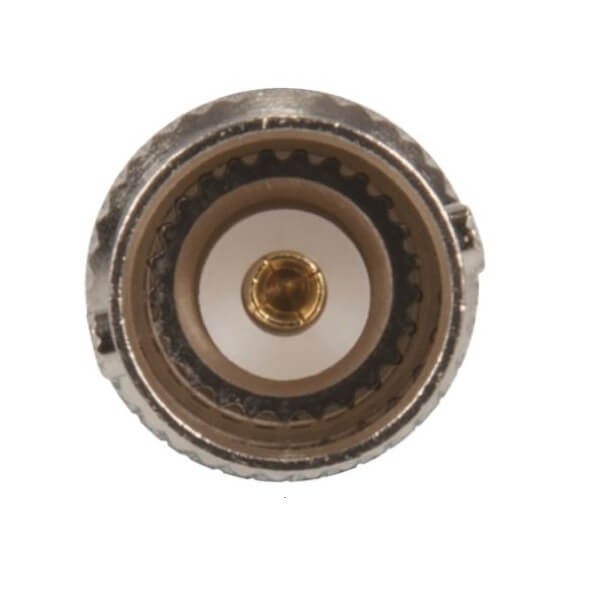

Rca Plug To Bnc Socket Straight 75ic Rf Adapter 250mhz
Price: 120 INR / Piece
Get Latest Price
Minimum Order Quantity :
5 Piece
Brand Name :
3an Telecom
In Stock
Product Specifications
| Operating Temperature | -20AdegC to +60AdegC |
| Frequency | DC to 250MHz |
| Power Supply | Passive (no power required) |
| Model | RCA-BNC-75RF |
| Features | Low signal loss, corrosion-resistant, easy installation |
| Size | Standard |
| Connectivity Type | Coaxial |
| Range | 75I(c) impedance matching |
| Interface Type | RCA Male to BNC Female |
| Mounting Type | In-line, panel mount not supported |
| Product Type | RCA Plug To BNC Socket Adapter |
| Application | RF, video, and audio signal conversion |
| Dimension (L*W*H) | Approx. 32mm (L) x 10mm (Dia) |
| Material | Nickel-plated brass with gold-plated contacts |
| Weight | Approx. 10 grams |
| Capacity | Supports up to 250MHz bandwidth |
| Main Domestic Market | All India |
Product Overview
Key Features
Impedance50 ohm
Frequency Range: 0~18 GHz
VSWR: Straight type 1.3max / R/A type 1.5max
Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
750 V rms min. for RG316, RG402
500v rms min. for RG178
Working Voltage: 500 V rms max. for RG142, RG405
375 V rms max. for RG316, RG402
170 V rms max. for RG178
Center Contact Resistance 6.0 m (Milliohms max.)
Outer Contact Resistance 2.0 m (Milliohms max.)
Insultation Resistance 5 x 10 m (Megohms min.)
Mechanical Characteristics
Coupling: 1/4-36 thread
Contact Retention: 15 in-lbs min.
Coupling nut torque: 30 in-lbs. min.
Durability(mating) 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
Temprature Range: -65C ~ +165C
Vibration: MIL-STD-202 Meth.204
Corrosion resistance: MIL-STD-202 Meth. 101
