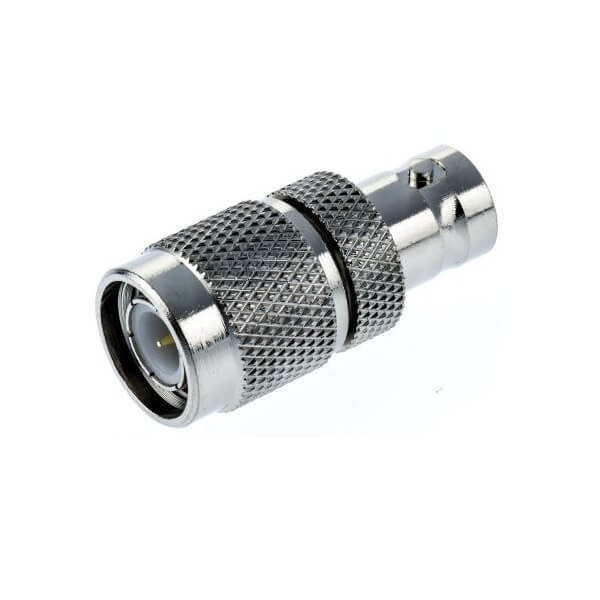

Tnc Plug To Bnc Socket Straight 50 Rf Adapter - Brass Nickel Plated, 32x17x17mm, 0-3 Ghz, Gold Plated Contact, Ptfe Insulator, 500 Mating Cycles

Tnc Plug To Bnc Socket Straight 50 Rf Adapter - Brass Nickel Plated, 32x17x17mm, 0-3 Ghz, Gold Plated Contact, Ptfe Insulator, 500 Mating Cycles

Price: 120.00 INR / Piece

(120.00 + 0% GST)

Get Latest Price

1 Pack Contains :

1

Minimum Pack Size :

5

In Stock

In Stock

-5+

Product Specifications

Connectivity TypeCoaxial
FeaturesHigh frequency performance, low signal loss, corrosion resistant, easy installation
Operating Temperature-55AdegC to +155AdegC
SizeStandard (TNC/BNC)
ModelTNC Plug to BNC Socket Straight Adapter
Mounting TypeCable/In-line
Interface TypeTNC Plug (Male) to BNC Socket (Female)
Shelf LifeNA (no shelf life limit for hardware adapter)
FrequencyUp to 3 GHz
RangeDC to 3 GHz
Product TypeRF Adapter
ApplicationRF signal transmission, Test equipment, Communication systems
Dimension (L*W*H)Approx. 32mm x 17mm x 17mm
MaterialBrass with Nickel Plating
Weight12 grams
CapacitySingle adapter
Coverage AreaPoint-to-point, within cable and device limits
Main Domestic MarketAll India
Packsize1
Price120.00 (Approx.)
Moq5
Unit TypePiece/Pieces
ReturnableNo
Stock Quantity25
Mop5
Minimum Order Quantity5
Minimum Ordered Packs5
GSTIN0%

Product Overview

Key Features

Electrical Characteristics
Impedance50 ohm
Frequency Range: 0~18 GHz
VSWR: Straight type 1.3max / R/A type 1.5max
Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
750 V rms min. for RG316, RG402
500v rms min. for RG178
Working Voltage: 500 V rms max. for RG142, RG405
375 V rms max. for RG316, RG402
170 V rms max. for RG178
Center Contact Resistance 6.0 m (Milliohms max.)
Outer Contact Resistance 2.0 m (Milliohms max.)
Insultation Resistance 5 x 10 m (Megohms min.)
Mechanical Characteristics
Coupling: 1/4-36 thread
Contact Retention: 15 in-lbs min.
Coupling nut torque: 30 in-lbs. min.
Durability(mating) 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
Temprature Range: -65C ~ +165C
Vibration: MIL-STD-202 Meth.204
Corrosion resistance: MIL-STD-202 Meth. 101
