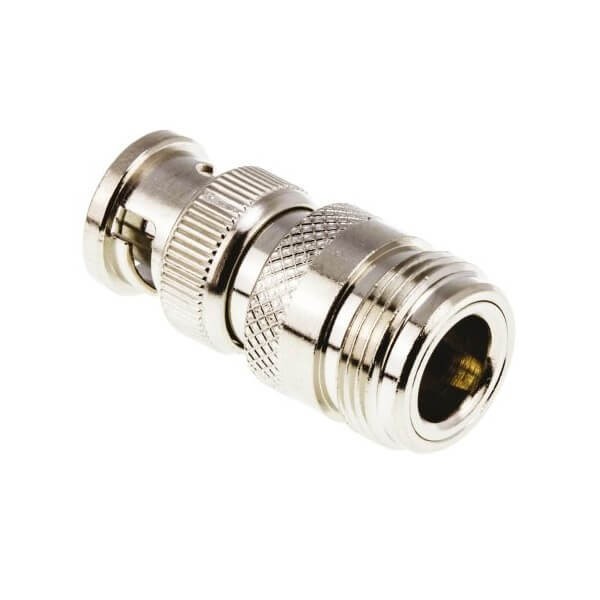

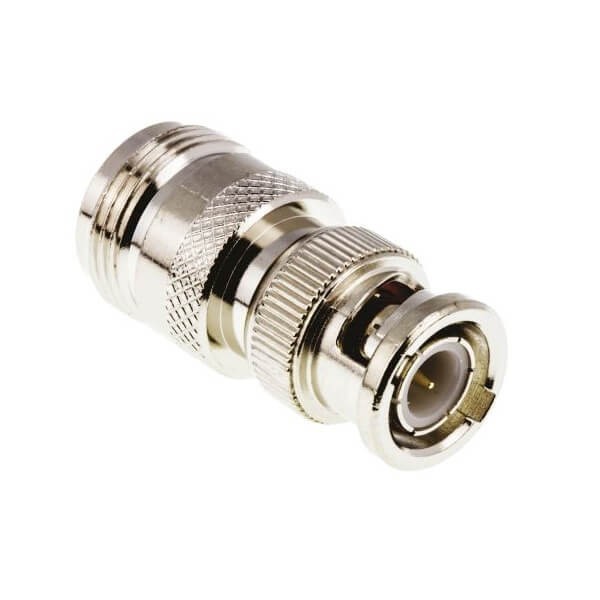

Bnc Plug To Type N Socket Straight 50î© Rf Adapter - Brass Body Nickel-plated, 37mm, 50î©, Up To 3 Ghz, Gold-plated Contacts, Ptfe Insulation, Bayonet & Threaded Coupling
Price: 140.00 INR / Piece
(140.00 + 0% GST)
Get Latest Price
1 Pack Contains :
1
Minimum Pack Size :
5
In Stock
Product Specifications
| Connectivity Type | Coaxial RF |
| Size | Standard BNC and N type interfaces |
| Operating Temperature | -55AdegC to +155AdegC |
| Model | BNC-M to N-F Adapter |
| Interface Type | BNC Plug (Male) to N Socket (Female) |
| Mounting Type | In-line, straight |
| Features | Impedance-matched 50I(c), corrosion-resistant, high durability |
| Range | DC to 3 GHz typical |
| Frequency | Up to 3 GHz |
| Product Type | BNC Plug to N-Female (Socket) Adapter |
| Application | RF, Data transfer, Broadcast, Instrumentation, Telecommunication |
| Dimension (L*W*H) | Length: 37 mm approx. (including both ends) |
| Material | Brass body with nickel plated finish |
| Weight | 18 grams approx. |
| Main Domestic Market | All India |
| Price | 140.00 (Approx.) |
| Mop | 5 |
| Stock Quantity | 25 |
| Returnable | No |
| Moq | 5 |
| Packsize | 1 |
| Unit Type | Piece/Pieces |
| Minimum Ordered Packs | 5 |
| Minimum Order Quantity | 5 |
| GSTIN | 0% |
Product Overview
Key Features
Impedance50 ohm
Frequency Range: 0~18 GHz
VSWR: Straight type 1.3max / R/A type 1.5max
Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
750 V rms min. for RG316, RG402
500v rms min. for RG178
Working Voltage: 500 V rms max. for RG142, RG405
375 V rms max. for RG316, RG402
170 V rms max. for RG178
Center Contact Resistance 6.0 m (Milliohms max.)
Outer Contact Resistance 2.0 m (Milliohms max.)
Insultation Resistance 5 x 10 m (Megohms min.)
Mechanical Characteristics
Coupling: 1/4-36 thread
Contact Retention: 15 in-lbs min.
Coupling nut torque: 30 in-lbs. min.
Durability(mating) 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
Temprature Range: -65C ~ +165C
Vibration: MIL-STD-202 Meth.204
Corrosion resistance: MIL-STD-202 Meth. 101
