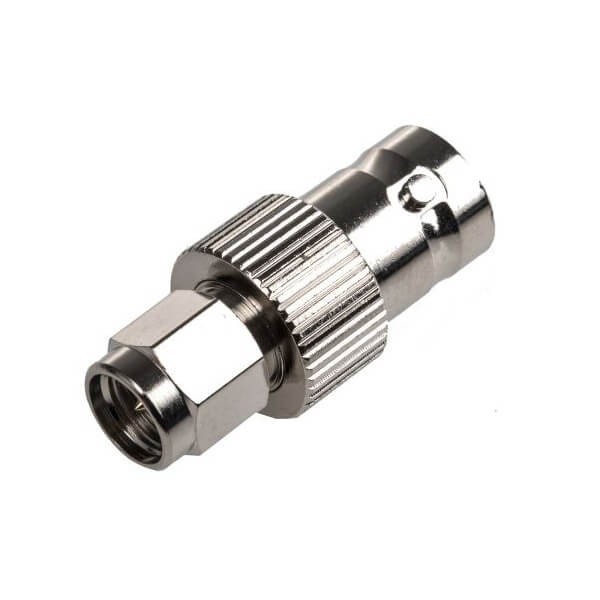

Bnc Socket To Sma Plug Straight 50ic Rf Adapter
Price: 120 INR / Piece
Get Latest Price
Minimum Order Quantity :
5 Piece
Brand Name :
3an Telecom
In Stock
Product Specifications
| Model | BNC-SMA-50I(c) |
| Size | Standard Connector Sizing |
| Power Supply | Passive - No power required |
| Mounting Type | Cable or Panel Mount |
| Connectivity Type | BNC Socket to SMA Plug |
| Operating Temperature | -55AdegC to +165AdegC |
| Interface Type | RF Coaxial |
| Frequency | Max Frequency 6 GHz |
| Shelf Life | 10 Years |
| Range | DC to 6 GHz |
| Features | Straight design, High Reliability, Low VSWR |
| Product Type | RF Adapter |
| Application | RF Signal Transmission, Test Equipment, Communication Systems |
| Dimension (L*W*H) | Standard size - Custom on request |
| Material | Brass (Nickel-Plated) |
| Weight | Approx. 8 grams |
| Capacity | 50I(c) Impedance |
| Coverage Area | Up to device specification |
| Main Domestic Market | All India |
Product Overview
Key Features
Impedance50 ohm
Frequency Range: 0~18 GHz
VSWR: Straight type 1.3max / R/A type 1.5max
Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
750 V rms min. for RG316, RG402
500v rms min. for RG178
Working Voltage: 500 V rms max. for RG142, RG405
375 V rms max. for RG316, RG402
170 V rms max. for RG178
Center Contact Resistance 6.0 m (Milliohms max.)
Outer Contact Resistance 2.0 m (Milliohms max.)
Insultation Resistance 5 x 10 m (Megohms min.)
Mechanical Characteristics
Coupling: 1/4-36 thread
Contact Retention: 15 in-lbs min.
Coupling nut torque: 30 in-lbs. min.
Durability(mating) 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
Temprature Range: -65C ~ +165C
Vibration: MIL-STD-202 Meth.204
Corrosion resistance: MIL-STD-202 Meth. 101
