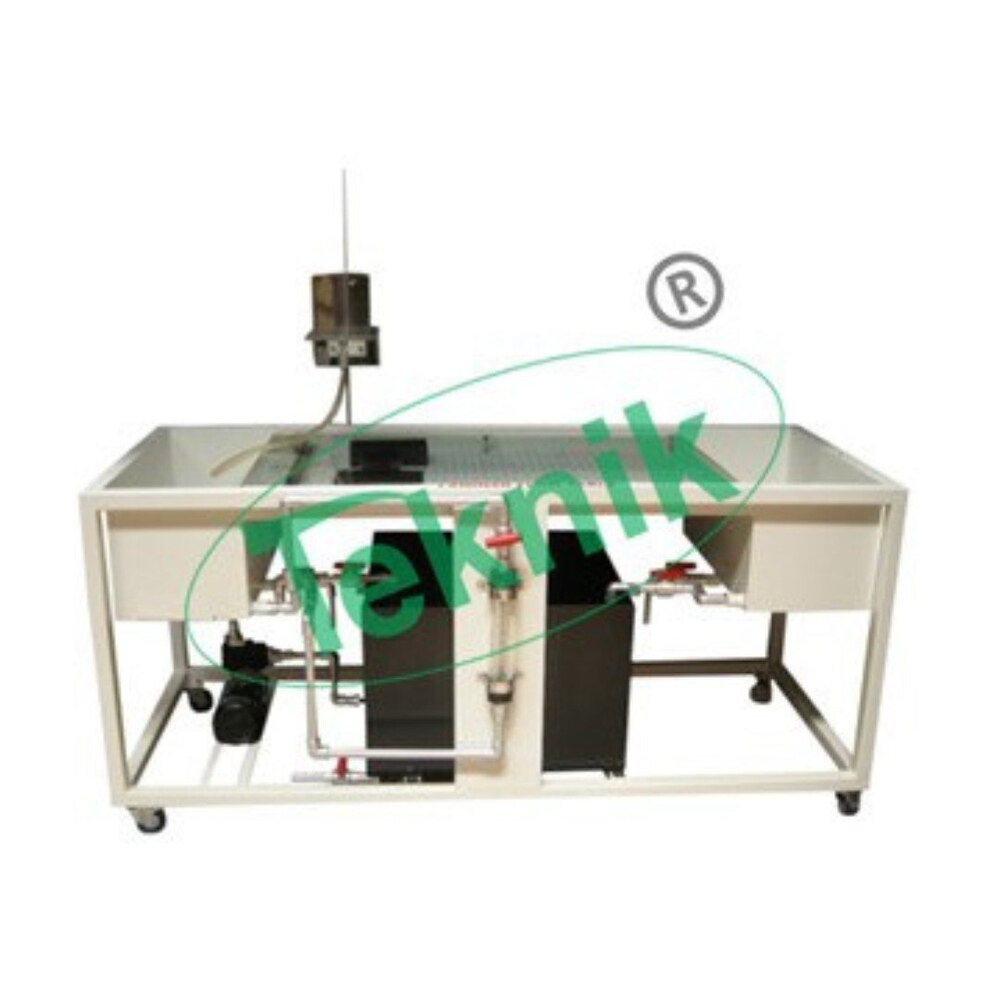

Laminar Flow Table Apparatus - Application: Fluid Mechanics Equipment

Laminar Flow Table is an improved version of the classical Heel-Shaw apparatus with the addition of sinks and sources. It consists of two closely spaced sheets of laminated glass, arranged horizontally on a glass fiber molding. An inlet tank and discharge tank are incorporated in the molding, which is supported on a floor standing, metal frame.
Three adjustable feet enable rapid leveling off the flow table. Eight miniature tapings, which may be used as sinks or sources, are arranged about the centre line of the lower glass plate in a cruciform configuration. A doublet is located at the centre of the pattern.
A system of pipes, valves and manifolds enables any combination of the sinks and sources to be used.
A row of control valves mounted above the flow table is used to adjust the flow through each individual source. A row of sink control valves is used to adjust the flow through each individual sink.
A row of hypodermic needles attached to a manifold is positioned between the glass plates at the inlet edge. To visualize the flow of water between the glass plates dye is injected through the equally spaced needles. The position of each streamline is clearly indicated by the dye, which is supplied from a reservoir fitted with a flow control valve.
A black reticule on a white background is printed on the underside of the lower glass plate to aid visualization of the streamlines.
The patterns created by the potential flow may be recorded by tracing on the top glass sheet or by photography if required.
A diffuser in the inlet tank and an adjustable weir plate in the discharge tank help to promote a uniform flow of water. Valves are incorporated in the base of these tanks to aid draining.
The flow of water is controlled by an inlet flow control valve. A pressure regulator reduces the mains water pressure and helps to minimize variations in flow.
The top glass plate may be raised at the front edge and retained in this position to enable models to be placed in the working section. A set of models are supplied for basic flow studies. These models are manufactured from plastic sheet and are trapped in the required position when the top glass plate is lowered.
Alternative models can be fabricated from any convenient material and used to investigate the associated flow patterns. Two-dimensional laminar flow is created between the two glass plates by the combination of low fluid velocity and the narrow gap between the plates
