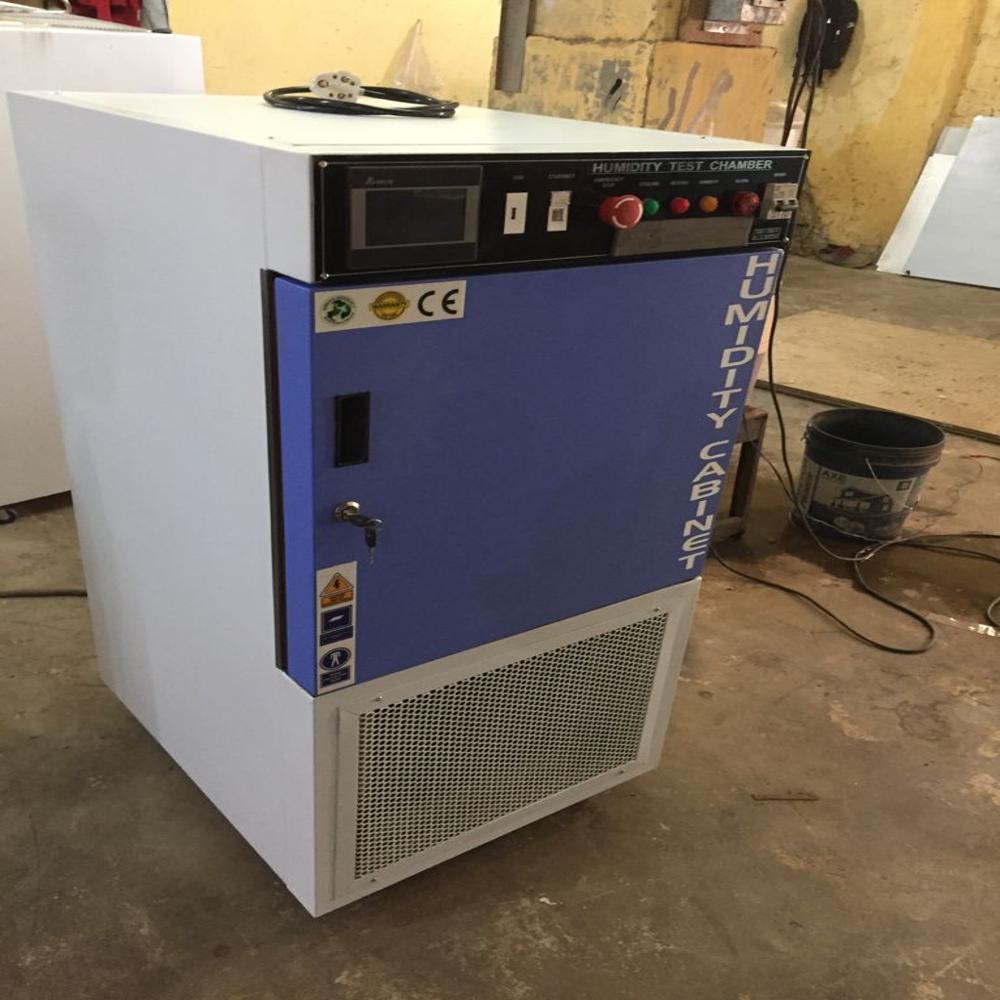

Humidity Chamber

Humidity Chamber

Temperature andhumidity regulated chambers offer stable storage settings. Those two primary parameters (temperature and humidity) may be manipulated, allowing customers to research and assess the durability of their goods. The Humidity Chamber has been designed to function as humidity and temperature control chamber is maintained at a predetermined dew point temperature before being warmed to a certain air temperature. Keeping the dew point and air temperature constant will result in highly consistent relative humidity (RH).

(A) Air Is Added To The Water Spray

A part of the air returning from the conditioned area is routed via a temperature-controlled water spray area. The water spray is controlled to keep the dew point temperature at the desired level. The air is cooled to the temperature of the water as it passes through the water spray and reaches saturation.

(B) Spray Chamber For Air Leaves

The air is then mixed with air through the spray region before exiting the spray chamber via a mist eliminator, eliminating any extra water vapor.

(C) The Air Is Returned To The Air-Conditioned Space

The air is returned to the conditioned room after passing through an electric heater to heat it back to the required dry bulb temperature.

The technology described above allows for highly fine humidity control. The system does not differentiate between humidifying and dehumidifying; it always sets a dew point and reheats.

The response from an RH sensor in the controlled environment automatically adjusts the temperature of the water spray. If the set point is lower than the actual situation, the water spray temperature will drop until the RH set point is reached. When the relative humidity set point is higher than the actual situation, the water spray temperature gradually rises until the RH set point is reached.

Sellers at Tradeindia deal in superlative quality Humidity Chamber which is known for long long functional life, easy operation and low maintenance requirements. These chambers are used to conduct product testing under certain environmental conditions that do not influence the testing process. Buyers may check the available Humidity Chambers and send us their purchasing requirements.

FAQs:

What is the function of a humidity chamber?

A humidity chamber is used for product testing at various setpoints, such as medicine storage in the pharmaceutical business, circuit board testing in the electronics sector, and paper testing in the paper industry.

What exactly is a humidified chamber?

The humidification chamber is an essential component of the breathing system, allowing it to communicate with the heated humidifier base. The collection includes three chamber variants that may be utilized with humidifier bases often seen in critical care units.

How is humidity in a chamber controlled?

You'll need a mechanical mechanism to dry or "dehumidify" the chamber. It is best accomplished using a refrigerated system. In the chamber, a cold cooling coil draws moisture into the air, causing it to condense into water, which can drain away.

What is the definition of a temperature and humidity chamber?

Temperature and humidity chambers (also known as climatic or climate test chambers) replicate the effects of varying temperature and humidity conditions on a product or material, such as telecommunications equipment or photovoltaic solar panels exposed to external temperature and humidity conditions.

What exactly is humidity control?

Regulation of the degree of saturation (relative humidity) or amount (absolute humidity) of water vapor in an air-water combination is called humidity control

Is nitrogen capable of absorbing moisture?

Nitrogen entrains water and helps it flow out of the system, enabling the liquid water to warm, evaporate, and raise the water vapor pressure without bringing extra moisture into the system.

What causes a room's humidity to rise?

To enhance humidity in a space, place water containers on raised surfaces. Placing bowls or saucers of water on different surfaces throughout the home is one of the simplest methods to introduce moisture to the air.
