Industrial Break Drum Machines

We are successfully established exporter, manufacturer and supplier of a wide range of Break Drum Machines in Rohtak, Haryana, India available with following details.


Specifications:

Model: BDD-18
DISC
Facing Capacity on diameter Max. (mm): 458
Facing Capacity on Width Max. (mm): 45
Total travel of tool (cross wise): 140
No. of automatic cross feeds available (for roughing and finishing): 2
DRUM
Drum Skimming Capacity on diameter (mm): 152.4 to 660.4
Max. tool slide travel (mm): 205
Each division of cross slide micrometer takes a cut of: per side / on diameter (mm): 0.025 / 0.05
Spindle Speeds (rpm): 120 / 80 / 54
Self feed travel / minute (mm): 24 / 16 / 10.8
GENERAL
Electric Motor (HP): 1
Net / Gross Weight (kgs.): 460 / 575
Overall Dimensions (m): 1.7 x 0.92 x 0.76
Shipping Volume (m3): 1.20

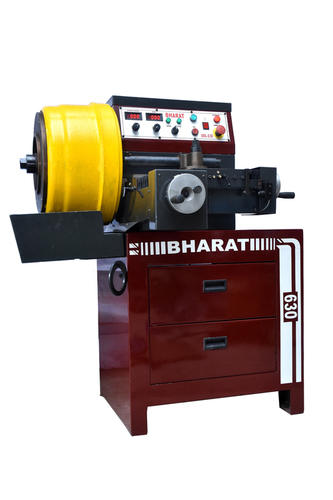

Brake Drum Disk & Lathe Machine
Standard Accessories: Electric Motor, Starter, Mandrels (2 pcs.), Mandrel extractor nuts (2 pcs.), Mandrel Spanner, Set of Cones for Discs, Cones for Drums (16 pcs.), Distance pieces (6 pcs.), Flanged Bushes (7 pcs.), Drum Silencer Belt, Tungsten Carbide Tipped tool, Overload safety pin
Optional Accessories: Dry grinding attachment complete with 0.25 HP motor, Diamond Dresser and a Grinding Wheel, Clutch and Flywheel machining attachment
