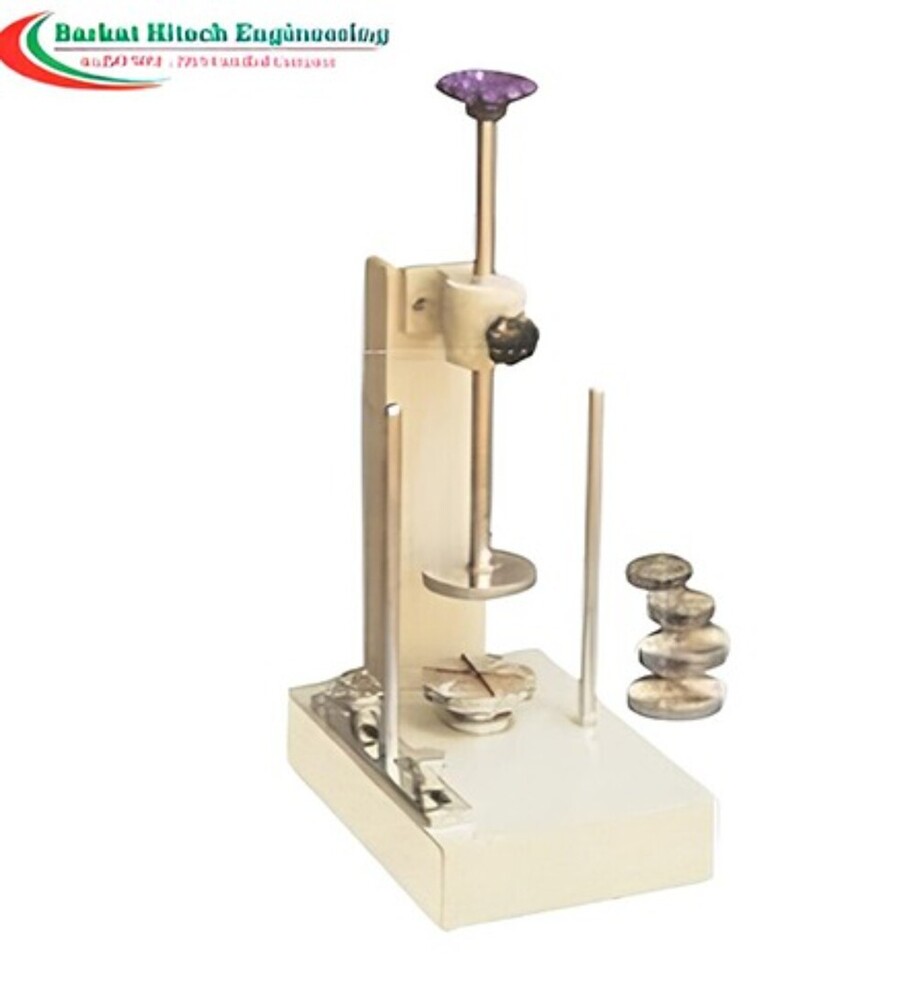

Hand And Electronically Operated Soil Trimmer - Application: Laboratory

1. Mechanical & Structural

Frame Material: Heavy-duty steel or cast iron for stability and long service life.

Operation Modes:

Hand-operated: Manual trimming using a wire saw and grips.

Electronically assisted: Electric motor drives trimming action (if motorized option included).

Specimen Grips: Adjustable vane or plate grips to hold samples during trimming.

Sample Diameter Support (typical):

Hand trimmer: Supports multiple diameters (e.g., 38 mm, 50 mm, 75 mm and 100 mm).

Accessories Provided (typical):

Wire saw

Trimming knife

Set of grip plates for different specimen sizes

2. Electrical / Electronic Features (for motorized version)

Motor Type: Electric motor (AC or DC), providing smoother trimming with reduced manual effort. (Varies by model check specific datasheet)

Power Supply:

AC mains (e.g., 220 V, 50 Hz) for workshop use, or

DC/battery options if designed portable (less common).

Control: On/Off switch, speed control (if available) improves trimming finish. (Specification depends on manufacturer)

3. Performance & Cutting

Trimming Method:

Wire saw or blade cuts around specimen circumference to achieve required diameter.

Precision guides ensure consistent trimming.

Specimen Sizes Supported: Typically up to 100 mm diameter (hand trimmers) larger if adjustable top platen assembly included.

Cutting Accuracy: Designed for accurate preparation with minimal soil disturbance critical for test reliability. (Precision dependent on build and guides)

4. Physical

Dimensions: Varies by model (compact table-top for lab; floor-mounted for larger work).

Weight:

Manual types are lighter (<15 kg) for portability.

Motorized units may be heavier with added motor and frame support.

Mounting: Fixed base or bench-mounted for stability during operation.

5. Compliance & Application

Standards Support:
Not specifically standardized but typically used as a preparatory tool for tests compliant with geotechnical standards (like ASTM or AASHTO soil specimen preparation).

Application:

Preparing samples for triaxial compression tests

Unconfined Compression Strength (UCS)

Direct shear tests

Other lab tests requiring precise soil cylinders.

Usage Notes

Hand-operated models are low-cost, require physical effort, and are ideal for modest test labs.

Electronically assisted versions reduce operator fatigue, improve trimming speed and surface consistency but are generally more expensive.

Always verify specific datasheet and model details from the manufacturer to match your exact application needs.
