Buhler H 400 D2 Horizontal Cold Chamber Die Casting Machine For Sale

Machine Id:1066
Model:H 400 D2
Make:Buhler
Year:0
Dimensions:
Power:
Location:Mumbai Warehouse,India

Category:Pressure Die Casting Machines (PDC)

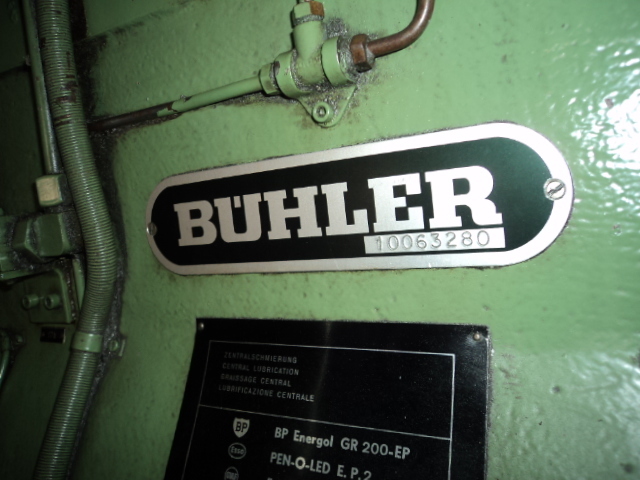

Serial No:10063280
Country:
Type of Machine:Horizontal Cold Chamber Die Casting Machine
Weight:0.0
Asking Price:onrequest

Specification:

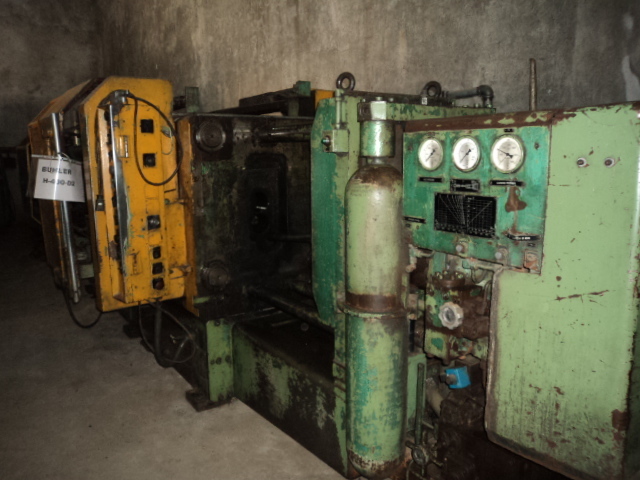

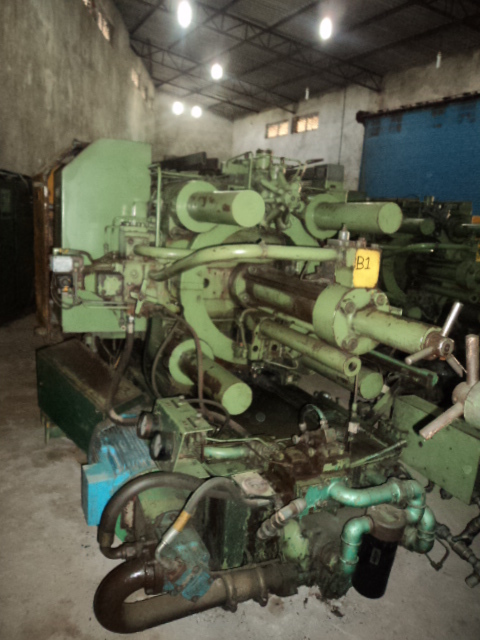

Buhler Horizontal Cold Chamber Die Casting Machine Model H-400-D2 with Direct Injection System

Specifications:

Locking force (nominal) Mp 400

Locking Force (strain gauge) Mp 400+ max.10%

Injection force (with intensifier) adj. Mp 38,5

Hyd. Ejection force Mp 22

Die Mounting Plates H X V mm 920 x 980 in 36 1/4 x 38 1/2

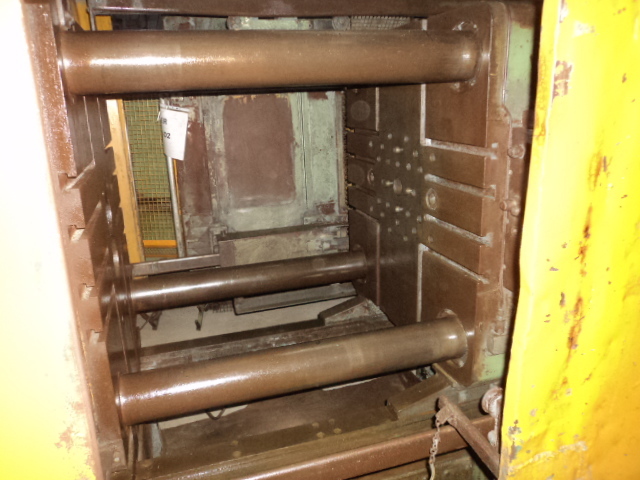

Space Between tie bars H X V mm 580 x 640 in. 22 7/8 x 25 1/4

Tie bar Diameter mm 120 in 4 3/4

Max. Die height mm 750 in 29 1/2

Max. Die height ( With mot. Die height) mm 725 in 28 1/2

Min. die height mm 200 in 7 7/8

Die opening stroke mm 600 in 23 5/8

Injection Plunger stroke mm 400 in 15 3/4

Ejector Stroke, adj. mm 145 in 5 3/4

Free cycle time sec. 7

Motor Capacity (22 kw) Hp 30 (22KW)

Machine area m 6.1 x 1.65 ft. 20 1/4 x 5 1/2

Machine Weight * tons 12,5

Hydraulic fluid contents litres (+,-) 650 lmp. Gallons (+,-) 121

Production data

Plunger Diameter

60mm

2.36 in.

70mm

2.76 in.

80mm

3.15in.

90mm

3.54 in.

100mm

3.94 in

110mm

4.33 in

Short capcity for Aluminum

2 kp

4.4 lbs.

2.7 kp

5.9 lbs.

3.6 kp

7.9 lbs.

4.5 kp

9.9 lbs

5.6 kp

12.3 lbs

6.8 kp

15 lbs

Max. injection pressure

1360 Kp/cm2

19300 lbs/sq.in

1000 Kp/cm2

14200 lbs/sq.in

765 Kp/cm2

10870 lbs/sq.in

605 Kp/cm2

8700 lbs/sq.in

490 Kp/cm2

6950 lbs/sq.in

405 Kp/cm2

5750 lbs/sq.in

Nom. Casting area at above injection pressure

290 cm2

45 sq.in.

400 cm2

62 sq.in.

520 cm2

80.5 sq.in.

660 cm2

102 sq.in.

815 cm2

126 sq.in.

985 cm2

155 sq.in.





* Metric tons at 2205 lbs.

* Shot capacity is calculated: plunger area x plunger stroke x 75% filling rating specific gravity for liquid Aluminum = 2,5 or 0,09lbs/sg.in.

For magnesium alloys multiply by 0.65 for zinc alloys multiple by 2.5

For copper base alloys multiply by 3.2

* Nom. Casting area at injection pressure of 250 kp/cm2 (3500 lbs/sq.in.) = 1600 cm2 (154 sq.in)

Specifications are subject to modifications with notice.
