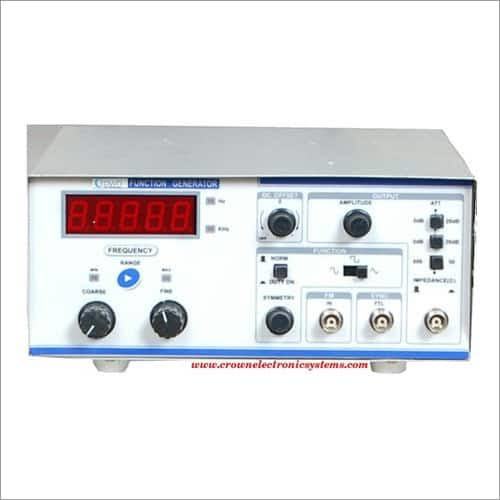

Am/fm Signal Generator 100khz To 110mhz With Digital Counter Usage: Industrial

AM/FM SIGNAL GENERATOR 100KHz TO 110MHz WITH DIGITAL COUNTER -
MODEL - CES 311D
SPECIFICATION : -
Frequency range :100KHz to 110MHz
Fundamental : 100 KHz to 55 MHz
Second Harmonic : 55MHz to 110 MHz
AM oscillator
Frequency range continuously variable over th e whole range with coarse & fine frequency control.
(a) 100 KHz - 250KHz
(b) 250 KHz - 700KHz
(c) 700KHz - 1.5 MHz
(d) 1.5 MHz - 5 MHz
(e) 5 MHz - 15 MHz
(f) 15MHz - 25 MHz
(g) 25MHz - 55MHz
Modulation frequency - 400Hz (nominal)
Modulation depth : (a) Internal Modulation 30 % (b) External Modulation adjustable.
Output Amplitude : 100 mVpeak to pe+ak2 dB in to 75 ohm
FM Oscillator
Frequency Range (Continuously variable over the whole ra n g e with course and fine frequency control.
(a) 3 MHz - 10 MHz
(b) 10 MHz - 25 MHz
(c) 25MHz - 55 MHz
50 MHz - 110 MHz second harmonic of the 25 MHz to 55 MHz band.
Modulation frequency : 400 (nominal ) frequency Deviation
(a) Internal - Adjustable from 0 to grea t e r t h a n 22.5 KHz from 5 MHz to 55 MHz
(b) External -Adjustable from 0 to greater than 40 K H z f r o m 3 MHz to 55 MHz
for Audio input frequency range of 300 Hz to5 KHz and a maximum input of 8 V peak to peak.
Output Amplitude 75mV p-p+ 2 dB in to 75 Ohm.
Attenuation (for AM/FM) : - a step attenuator 5 s t e p (20dB) and variable attenuator
Frequency Display : - Readout LED Display - 4 digit seven segment
GENERAL
Main voltage : 230 Volts 50 Hz operation
Current Consumption : 05 mA (Approx.)
