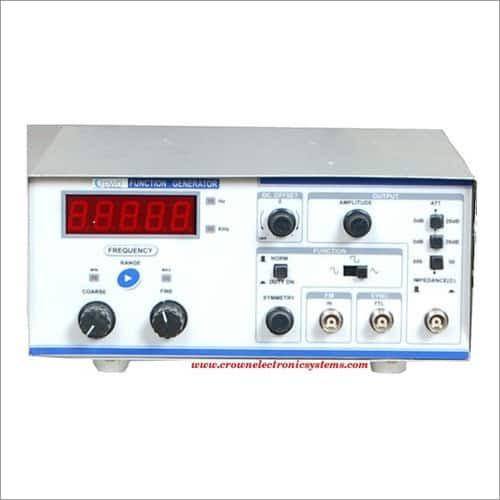

0.1hz To 1mhz Function Generator Application: Industrial

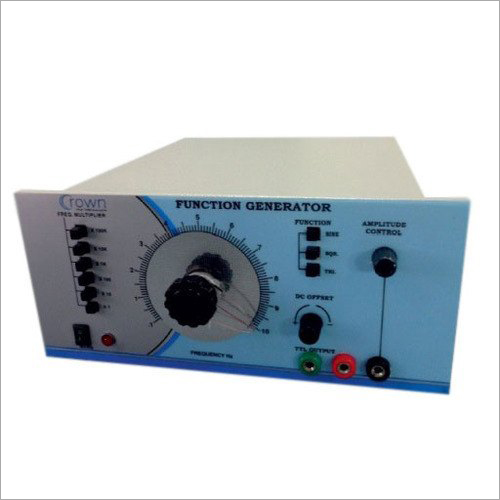

FUNCTION GENERATOR
FUNCTION GENERATOR is capable of providing
SINE , SQUARE , TRIANGLE Wave form . It has linear
frequency scale very low Distortion & constant signal amplitude
with the output signal symmetry about Zero . The DC coupled
output provides square wave without any appreciable Sag at
low frequency . It has a maximum 20V P/P amplitude . The
output is protected against short circuit . It has a offset control
provided to shift the base line of signal by + 10V . The
continuously variable DC offset control further enhance the
versatility of the instrument . The equipment is used in Audio
Electronics & other Laboratory & Research work .
SPECIFICATION :
FREQUENCY RANGE : 0.1 Hz to 1 MHz in six decade range
DEAL ACCURACY : + 5% of range
AMPLITUDE : 0 - 20V P/P for all function
WAVE FORMS : SINE , SQUARE & TRIANGLE , TTL
SQUARE WAVE (SEPARATE O / P)
SINE WAVE DISTORTION : Less than 1% from 100 Hz to 100KHz
SQUARE WAVE DUTY CYCLE : 49% To 51%
SQUARE WAVE RISE TIME : Less than 100 nano Sec. At maximum amplitude
OUTPUT IMPEDANCE : 600 Ohm + 5%
POWER REQUIRED : 230V AC + 10%
