Aluminium Load Cell

A load cell is a type of transducer that converts a mechanical force, such as tension, compression, pressure, or torque, into a measurable electrical current. Essentially, it's the heart of most electronic weighing systems and force measurement devices.

How They Work

The most common type, the strain gauge load cell, operates on the principle that the electrical resistance of a wire changes when it's stretched or compressed. A precisely machined metallic body, often called the "spring element" (usually made of aluminum, alloy steel, or stainless steel), deforms slightly when a force is applied. Strain gaugesthin, electrically conductive wires or foilsare meticulously bonded to this body. As the body deforms, the strain gauges also deform, leading to a proportional change in their electrical resistance.

Types and Applications

Load cells come in various shapes and sizes, each suited for specific applications. Common types include:

• S-Type Load Cells: Shaped like an "S", ideal for both tension and compression measurements.

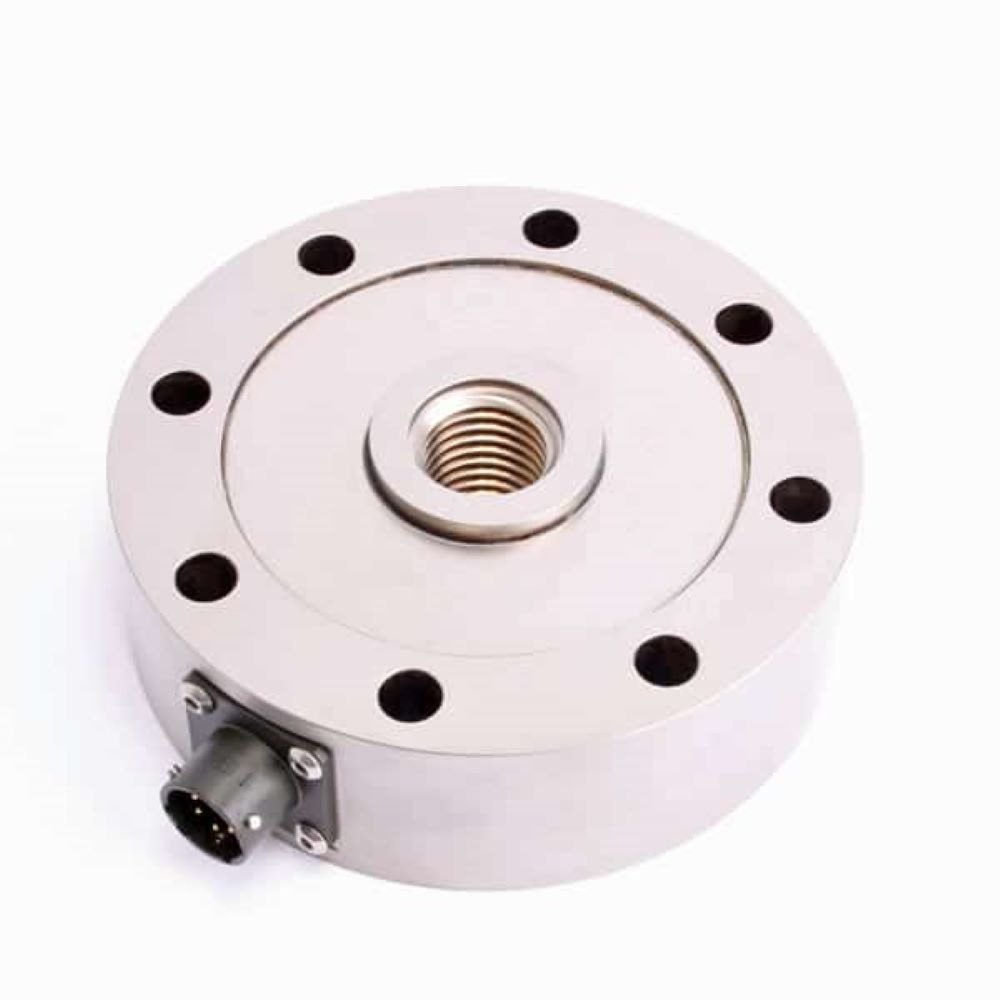

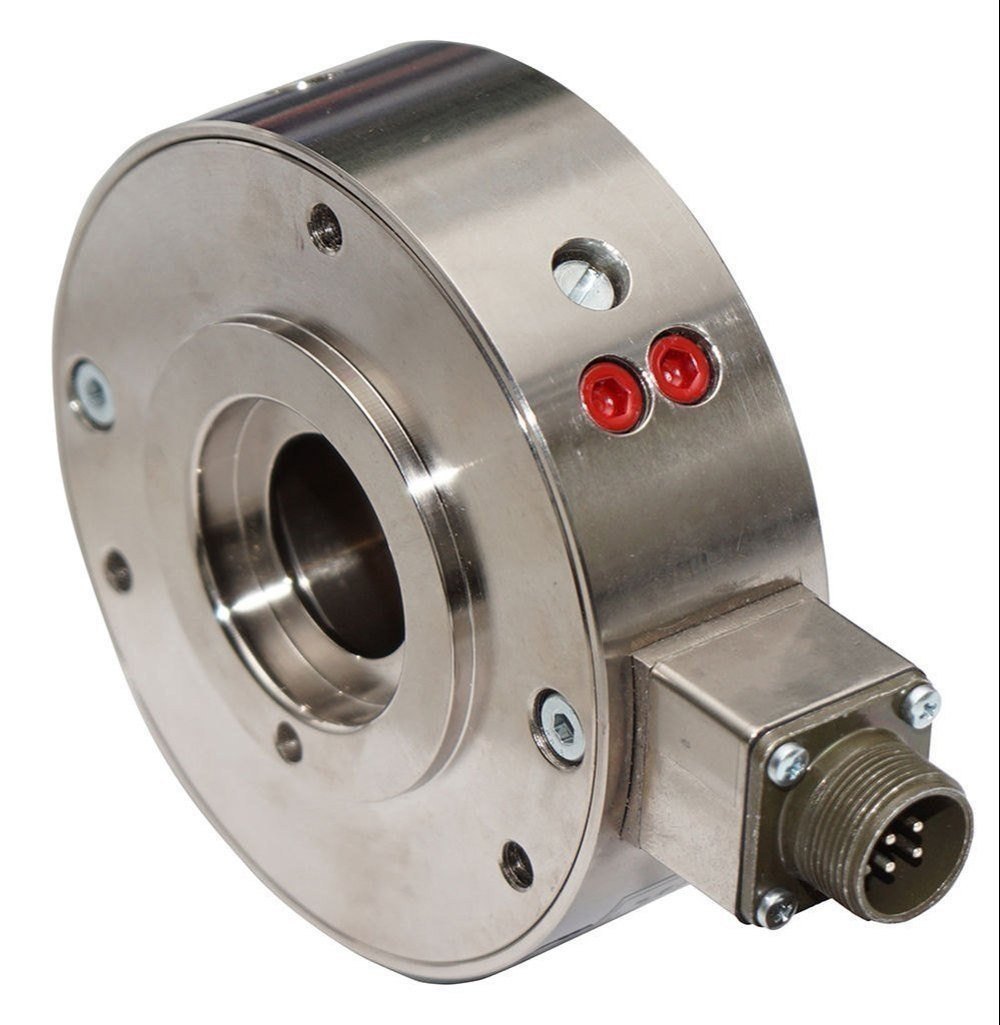

• Pancake Load Cells: Low-profile, disc-shaped, used for high-accuracy applications in confined spaces.

• Shear Beam Load Cells: Rectangular beams, often used in platform scales and industrial weighing.

• Compression Load Cells: Designed to measure pushing forces, often found in heavy-duty applications like tank weighing.

• Single-Point Load Cells: Can accurately measure loads even if applied off-center, making them popular in retail scales.
