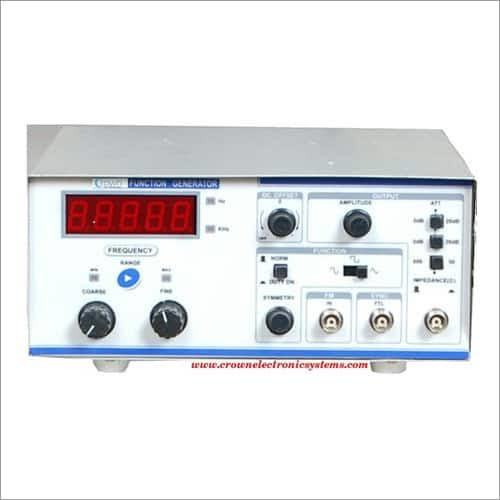

Blue 0.3hz To 3mhz Function Generator With Digital Counter

0.3Hz To 3MHz FUNCTION GENERATOR WITH DIGITAL COUNTER -
MODEL - CES 306D-3
Type -DIGITAL
The function generator offers wide functional capability at a modest price. This compact unit has ranges from 0.3Hz to 3MHz. Range & function selection adds convenience to versatility. Added features not found in function generators of this price range are voltage control and a separate pulse output suitable for synchronization or driving TTL logic circuits.The instrument is designed using easily available components resulting in ease of serviceability. Greater emphasis has been put on ruggedness & reliability with the use of single pcb for complete circuit. The lower frequencies are of special interest to servo manufacturers. Offers sine, square, triangle functions upto 3MHz.
TECHNICAL SPECIFICATIONS :
Frequency Range: 0.3Hz - 3MHz.
Functions : Sine, Square, Triangle,Ramp, Pulse & TTL pulse output.
Display Frequency : Digital (4 digit 7 segment display) automatic decimal position
Accuracy Freq : better than + (1% + 3digit)of F.S
Amplitude : 20 V p-p into open circuit (variable).
10V p-p into 50 ohms
Attenuator : 2 steps attenuators 20dB each
(Total 60dB) and variable 20dB
Amplitude flatness + 3dB
DC Offset(switchable: Upto + 10V into open circuit.
& continuous) + 5V into 50 ohm.
Output Impedance: 50 ohms & 600 Ohms
(Switchable)
WAVEFORM CHARACTERISTICS
Sine wave
a) Distortion : < 1%
Square wave
a) Rise time : < 100 nsec approx.
( 10% to 90%)
b) Over shoot : < + 5%
Triangle
a) Non Linearity : <1% ( 100KHz.)
Ramp & Pulse : Duty cycle 20:80
upto 200KHz
Trigger Pulse output
a) Sync Output : TTL
General
a) FM / VCO : available
b) Power Supply : 230V , 50Hz, AC.
c)Accessories : Instruction Manual.
d)Test Leads : 1x BNC to Crocodile.
1x Power cord.
