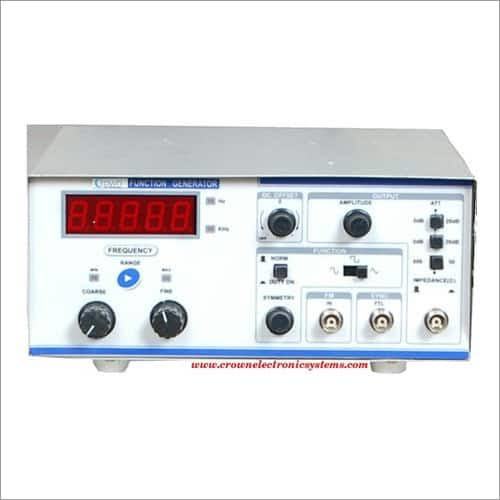

0.2Hz To 2MHz FUNCTION GENERATOR WITH DIGITAL COUNTER -
MODEL - CES 306D-2
The function generator offers wide functional capability at a modest price. This compact unit has ranges from
0.2Hz to 2MHz. Range & function selection adds convenience to versatility. Added features not found in function generators
of this price range are voltage control and a separate pulse output suitable for synchronization or driving TTL logic circuits.The
instrument is designed using easily available components resulting in ease of serviceability. Greater emphasis has been
put on ruggedness & reliability with the use of single pcb for complete circuit. The lower frequencies are of special interest
to servo manufacturers. Offers sine, square, triangle functions upto 1MHz.
TECHNICAL SPECIFICATIONS
Frequency Range: 0.2Hz - 2MHz. with coarse and fine
variable control between steps.
Functions : Sine, Square, Triangle,Ramp, Pulse
& TTL pulse output.
Display Frequency
Freq : Digital (4 digit 7 segment display)
automatic decimal position
Accuracy Freq : better than + (1% + 3digit)of F.S
Amplitude : 20 V p-p into open circuit (variable).
Attenuator : 2 steps attenuators 20dB each
(Total 60dB) and variable 20dB
Amplitude flatness + 3dB
DC Offset(switchable: Upto + 10V into open circuit.
& continuous) + 5V into 50 ohm.
Output Impedance: 50 ohms & 600 Ohms
(Switchable)
WAVEFORM CHARACTERISTICS
Sine wave
a) Distortion : < 1% (low)
Square wave
a) Rise time : < 100 nsec approx.
( 10% to 90%)
b) Over shoot : < + 5%
Triangle
a) Non Linearity : <1% ( 100KHz.)
Ramp & Pulse : Duty cycle 20:80
upto 100KHz
Trigger Pulse output
a) Sync Output : TTL / CMOS
General
a) FM / VCO : available
b) Power Supply : 230V , 50Hz, AC.
c)Accessories : Instruction Manual.
d)Test Leads : 1x BNC to Crocodile.
1x Power cord.
