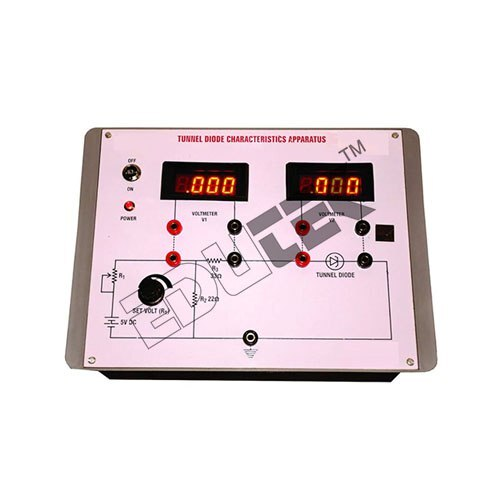

Tunnel Diode Characteristics Apparatus - Bakelite Panel With Digital Meters, Inbuilt 0-5vdc Regulated Power Supply, Dual Digital Meters, 4mm Banana Type Sockets
Price: 50.0 INR / Piece
Get Latest Price
Minimum Order Quantity :
1 Piece
Brand Name :
Edutek
In Stock
Product Specifications
| IP Rating | Not rated |
| Input | Variable DC Input (via inbuilt supply) |
| Display Type | Other, Digital Panel Meters |
| Output | Tunnel Diode voltage and current readings |
| Features | Rugged Bakelite enclosure, digital readout, onboard tunnel diode, clearly labeled panel |
| Operating Temperature | 10AdegC to 40AdegC |
| Resolution | Digital panel meters: 3/2 digit display |
| Components | Tunnel diode, precise digital meters, potentiometer, resistors, fuses, etc. |
| Power Source | AC Mains |
| Power Supply | 230V A+-10% AC, 50Hz |
| Sensors Specification | Inbuilt for current and voltage measurement |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Interface | Direct knob operation, panel connections |
| Response Time | Instantaneous digital readout |
| Product Type | TUNNEL DIODE CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & DIGITAL PANEL METERS |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 220V AC |
| Supply Voltage | 230V AC |
| Size | Standard Lab Bench Size |
| Dimension (L*W*H) | 310 mm x 225 mm x 110 mm (approx.) |
| Function | To study and plot the V-I Characteristics of a Tunnel Diode. |
| Color | Black & Gray (Bakelite Panel) |
| Weight | Approx. 3 kg |
| Capacity | Suitable for laboratory use |
| Thickness | Panel thickness approx. 6 mm |
| Current Rating | Typically up to 10 mA DC |
| Frequency | 50 Hz |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
Product Overview
Key Features
TUNNEL DIODE CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & DIGITAL PANEL METERS
Inbuilt variable DC regulated power supply (0 -5VDC)
On Board two Digital meters
4mm Banana Type Sockets on front panel
Symbol diagram printed on Bakelite Front Panel
Power Requirements: 230V AC 10%, 50Hz
