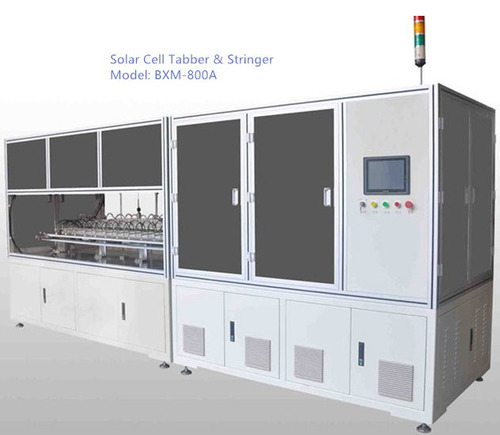

Solar Cell Tabber And Stringer Model Bxm-800a With Maximum Soldering Length Of 2000mm.

Introduction The machine adopts specially designed infrared lights to heat and solder the solar cell with the copper strips into a string. The machine is specially designed to solder whole and cutted solar cells. It is an automatic machine controlled by PLC. Equipment Advantage 1.BXM-800A Solar Cell Tabber & Stringer is compatible with soldering full solar cell and cut cell. 2. It can solder the min. Solar cell width is 31.2mm. 3.Adopt the most popular non-contact infrared light soldering method,which ensures solar cell and ribbon be uniformly heated to reduce the rate of breakage. 4.With multiple temperature zone, slow warming and slow cooling reduce rate of the breakage. 5.With ribbon automatic bending function,which is able to reduce the solar cell breakage caused by distance between solar cells. 6. Fine- tuning function, which is easy ans time saving to switch between 3,4 and 5 bus bars. Switch between different width solar cells with same bus bars within 30 minutes Specifications: 1 Production capacity: 4.6S/PCS 750pcs/hr 2 Breakage Rate: <3a A grade cell 3 Soldering Method: Infrared light 4 Solar cell type: 125*125mm, 156*156mm, 156.75*156.75mm cells 125*125mm mono crystalline silicon solar cell (2BB); 156*156mm crystalline silicon cell (2BB,3BB,4BB, 5BB). Width 31.2- 156mm, Width 31.2mm-125mm 5 Cell thickness: 150 um~280um 6 Distance between solar cells: 1mm~10mm, adjustable 7 Max. Soldering length: 2000mm. 8 Solar cell transmission mode: Belt Drive 9 Electrical System: PLC +Servo control system 10 Ambient temperatures: 5a ~35a 11 HMI: Touchscreen, simple operation 12 Failure Warning: Real-time Alarm 13 Power: 50~60Hz/AC380V, Max.14.5kw, Ave:7.5kw 14 Compressed air: 0.5MPa~0.8MPa 15 Compressed air consumption: 0.4mA /min
