Smb Female Straight Bulkhead For Pcb Mount
Share

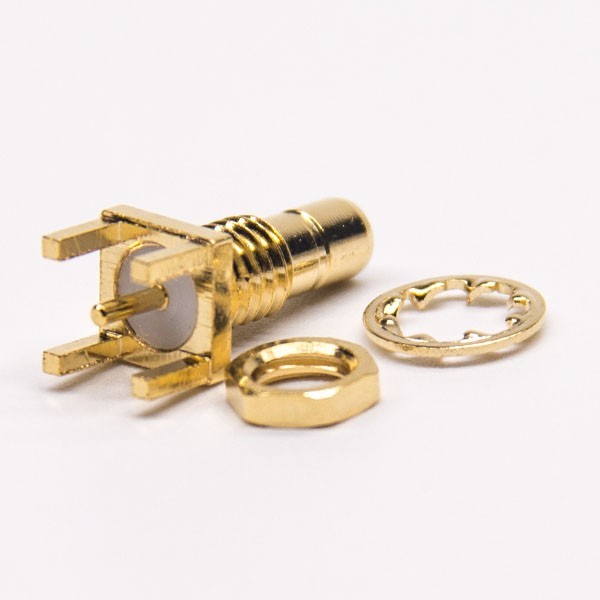

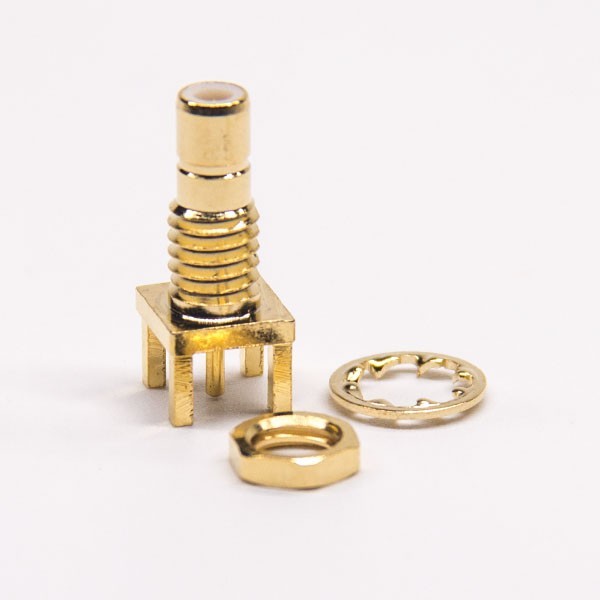

Smb Female Straight Bulkhead For Pcb Mount

Price: 69 INR / Piece

Get Latest Price

Minimum Order Quantity :

5 Piece

Brand Name :

3an Telecom

In Stock

In Stock

Product Specifications

Tensile StrengthStandard for RF applications
Install TypeBulkhead mount, straight PCB
InsulationPTFE
FeaturesCompact design, easy PCB mounting, secure connection, gold-plated contacts
Operating Temperature-40AdegC to +85AdegC
Conductor ShapeRound
Rated Temperature-40AdegC to +85AdegC
WeightApprox. 8 grams
Conductor TypeOther, Female Socket
Core NumberSingle
Diameter10 mm
Locking TypeSnap-on coupling
Impedance50 Ohms
Core MaterialBrass
Dielectiric Strength1000 V RMS
Number of Conductor1
Usage & ApplicationsPCB mounting, RF circuits, telecommunication, instrumentation
Product TypeSMB Female Straight Bulkhead for PCB Mount
Length22 mm
VoltageOther, Maximum 335 V RMS
Insulation MaterialPTFE
ApplicationOther, RF PCB connection, wireless communication, antenna interface, test equipment
Conductor MaterialOther, Brass (gold plated)
Jacket MaterialOther, N/A (metal body, no jacket)
Storage Temperature-55AdegC to +125AdegC
Connector ColorNickel
Shield MaterialBrass (nickel plated)
Dimension (L*W*H)22 mm x 10 mm x 10 mm
ColorMetallic
MaterialBrass, PTFE
Size22 mm
Main Domestic MarketAll India

Product Overview

Key Features

Techinial Datasheet:
Electrical Characteristics
Impedance50 ohm
Frequency Range: 0~4 GHz
VSWR: Straight type 1.3max / R/A type 1.5max
Dielectric Withstanding Voltage:
1000 V rms min for RG316, RG402
750 V rms min. for RG178
Working Voltage:
335 V rms max. for RG316, RG402
250 V rms max. for RG178
Center Contact Resistance 6.0 m (Milliohms max.)
Outer Contact Resistance 1.5 m (Milliohms max.)
Insultation Resistance 1000 m(Megohms min.)
Mechanical Characteristics
Coupling: Snap-on
Contact Retention: 4 lbs min.
Mating Durability: 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
Environmental Characteristics: -65C ~ +155C
Vibration: MIL-STD-202 Meth.204
Corrosion Resistance: MIL-STD-202 Meth. 101
