Low Cost Emc Constant Current Driver For Led Tube Lights High Pf
Price:
Get Latest Price
In Stock
Product Specifications
| Product type | LED Driver |
| Color | Green |
| Application | LED Tube Lights |
| Input voltage | 90-265Vac |
| Size | L123mm*W16mm*H11mm |
| Power | 8-24W |
| Features | High PF, High efficiency, EMC approval, Low cost, High quality |
Product Overview
Key Features
We are engaged in manufacturing and exporting excellent quality Low Cost EMC Constant Current Driver for LED Tube Lights High PF to our valuable clients.
1. Input voltage: 90-265Vac
2. Output voltage: 27-50Vdc/50-80Vdc
3. Output current:120mAA 3%
4. Power: 8-24W
5. PF: 0.95
6. Efficiency: 89%
7. Dimension: L123mm*W16mm*H11mm
8. Surge: 1500V
Advantages: This item is non-isolated model regarding to 8-24W tube drivers which use self-design high performance transformer. High PF, high efficiency, EMC approval. Output voltage can adjust automatically within the range of 15-24 LEDs in series. Super low cost with high quality enable this driver become a very competitive product and also a best choice for most developing countries.
Description:

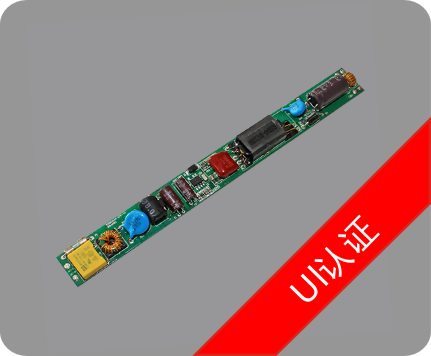

Built-in non-isolated constant current LED driver which is specifically developed for 8-24W LED tube lights.
Low cost, high efficiency, energy-saving and eco-friendly
Non-isolated constant current LED driver
Burn-in test: 100% for at least 4 hours under environment temperature of 30 degrees Celsius
Use highly efficient, steady and low-loss IC
Application: LED tube lamps
Technical data:
Power:8-24W
Input voltage range: 90-265Vac
Frequency: 50 to 60Hz
Power factor: 0.95
Power efficiency: 89%
Output voltage: 27-50Vdc/50-80Vdc
Output current: current can be adjusted in the range of 120-300mA
Leakage current: 4mA, 60 seconds
Protective function: open and short circuit protection
1. Input voltage: 90-265Vac
2. Output voltage: 27-50Vdc/50-80Vdc
3. Output current:120mAA 3%
4. Power: 8-24W
5. PF: 0.95
6. Efficiency: 89%
7. Dimension: L123mm*W16mm*H11mm
8. Surge: 1500V
Advantages: This item is non-isolated model regarding to 8-24W tube drivers which use self-design high performance transformer. High PF, high efficiency, EMC approval. Output voltage can adjust automatically within the range of 15-24 LEDs in series. Super low cost with high quality enable this driver become a very competitive product and also a best choice for most developing countries.
Description:
Built-in non-isolated constant current LED driver which is specifically developed for 8-24W LED tube lights.
Low cost, high efficiency, energy-saving and eco-friendly
Non-isolated constant current LED driver
Burn-in test: 100% for at least 4 hours under environment temperature of 30 degrees Celsius
Use highly efficient, steady and low-loss IC
Application: LED tube lamps
Technical data:
Power:8-24W
Input voltage range: 90-265Vac
Frequency: 50 to 60Hz
Power factor: 0.95
Power efficiency: 89%
Output voltage: 27-50Vdc/50-80Vdc
Output current: current can be adjusted in the range of 120-300mA
Leakage current: 4mA, 60 seconds
Protective function: open and short circuit protection
