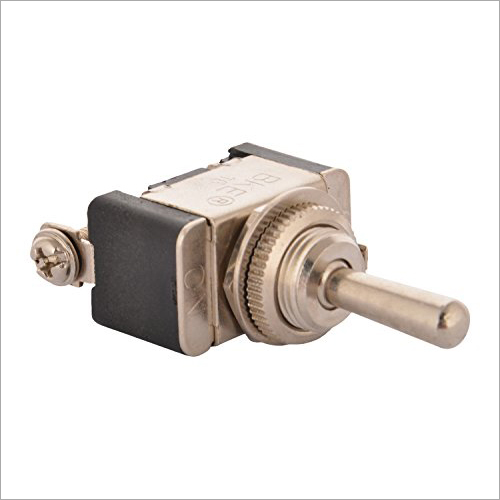

Blue High Quality Toggle Switches -20 Series

Outfitted with a modern infrastructure, we are the most prominent manufacturer, exporter and supplier of High Quality Toggle Switches -20 Series from Bengaluru, Karnataka, India. Integral (Series 20) Toggle Switches meet the needs of customers wanting a high quality, high current carrying switch in a small volume. Standardization of design in components used from single to four poles, careful choice of materials and attention to details result in reliable and consistent performance. They are available with popular actuator types and sizes. Design variations in the contacts result in all the required switching functions. Only limited types LCSO approved switches to JSS51201 available

Specification:
CONTACT RATING:3 Amps @ 230 V AC ; 5A @ 28 V DC. See Contact selection for others.
ELECTRICAL LIFE:100,000 make-and-break cycles at full load on all models ending in-1(ON-NONE-ON). All other models, 40,000 cycles.
CONTACT RESISTANCE:Below 10 milliohms initial @ 2-6 V DC. 100 mA for both silver and gold plated contacts.
INSULATION RESISTANCE:1000 Megohms min.
DIELECTRIC STRENGTH:1000 VRMS min. @ sea level.
OPERATING TEMP:-30 Degree C to 85 Degree C.

Material and finishes:
BODY:Diallyl Phthalate ( DAP )
ACTUATOR:Brass Nickel plated
HOUSING:Stainless steel
BUSHING:Brass Nickel plated
HARDWARE:Brass nickel plated
TERMINAL SEAL:Epoxy
