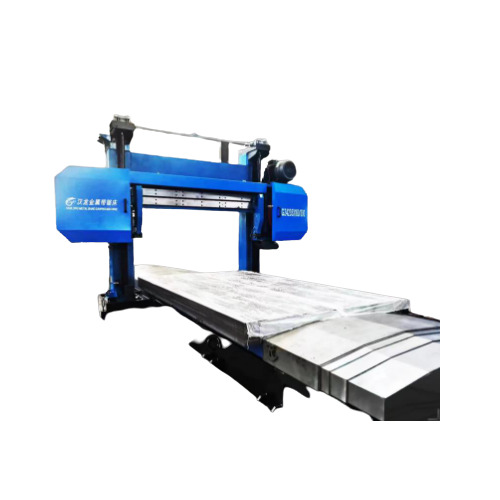

Graphite Saw Machine

Main features of the machine tool: 1. The machine tool has the functions of automatic feed, cutting and automatic stop of belt breaking through the cooperation of machinery, electricity and hydraulics. 2. Sawing speed and feed speed can reach stepless speed regulation within the given range. 3. The sawing speed is controlled by vector frequency converter, which is convenient for adjustment and control. 4. The PLC programmable controller is of reliable working performance and low failure rate. 5. The saw band can be tensioned automatically, and the tension can be measured through hydraulic adjustment, which is convenient to operate and stable. 6. The main moving parts - the lifting and lowering of the saw frame adopts the servo motor ball screw, and the saw frame moves up and down along the linear guide rail pair under the traction of the ball screw; The worktable is driven by hydraulic oil cylinder to ensure the sawing stability and accuracy. 7. Worktable is equipped with stainless steel shield to protect the screw rod, guide rail and other parts, to guarantee the safety and reliability . 8. All sliding mechanisms of the machine tool are equipped with the automatic lubrication system , with automatic stop function if the lubrication is not in place. 9. The main electrical box is equipped with an automatic thermostatic control system for air conditioners. 10. Z-axis has the function of handwheel tool setting, and the remote control system is convenient for operation. Main technical parameters of the Saw Machine : 1. Maximum sawing range (W * L * throat height) 2000 A three thousand A 420 mm (customized according to user requirements) Maximum adjustment height of saw blade from the worktable: 800 mm 2. Band saw blade specification (width * thickness) 67 A 1.6 mm 3. Sawing linear speed 300-1400 m/min 4. Stepless speed regulation of feed speed 5. Main motor power 22kw (inverter fed 22kw) 6. Saw frame lifting motor: 2.8kw (servo) 7. Oil pump motor power: 4 kw 8. Fuel tank capacity: 80L 9. Tensioning mode: Hydraulic automatic
