Fire Rated Doors By Shree Ram Industries

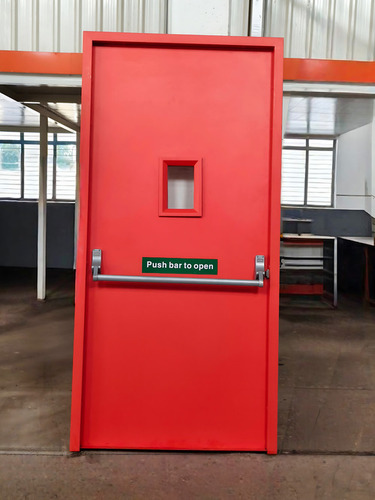

Our Single Leaf Fire Rated Door is engineered to deliver exceptional fire protection, stability, and integrity for up to 120 minutes. Designed and manufactured as per IS 3614:2021, the door is tested at AJEO Laboratory (Test Ref: FD 120 PI) to ensure full compliance with national fire safety standards. It offers a robust construction with precision detailing, making it ideal for use in commercial, industrial, and institutional buildings.

Technical Specifications

Door Type: Single Leaf Steel Fire Rated Door

Fire Rating: 120 Minutes (Stability, Integrity & Insulation)

Shutter Thickness: 46 mm

Frame Section: 100 mm x 57 mm

Infill Density: 96 Kg/m (Mineral Wool Insulation)

Testing Standard: IS 3614:2021

Test Laboratory: AJEO Lab (FD 120 PI)

Construction Details

Frame: Fabricated from 1.2 mm to 1.6 mm thick GI/GP sheet, designed for superior strength and durability.

Door Leaf: Manufactured from 0.8 mm to 1.2 mm thick GI/GP sheet with mechanically interlocked edges for enhanced rigidity.

Infill Material: High-density mineral wool (96 Kg/m) provides excellent thermal insulation and fire resistance.

Vision Panel (Optional): Maximum size 280 mm x 720 mm x 6 mm fire-rated glass.

Edge Construction: Mechanically interlocked face sheets with interlocked edges for structural stability.

Top Channel: Flush as standard.

Bottom Channel: Inverted channel (optional).

Hinge Reinforcement: Steel plate reinforcement for full mortise-type hinges.

Maximum Door Size:

Single Door (SD): 1100 mm (W) x 2400 mm (H)

Double Door (DD): 2200 mm (W) x 2400 mm (H)
