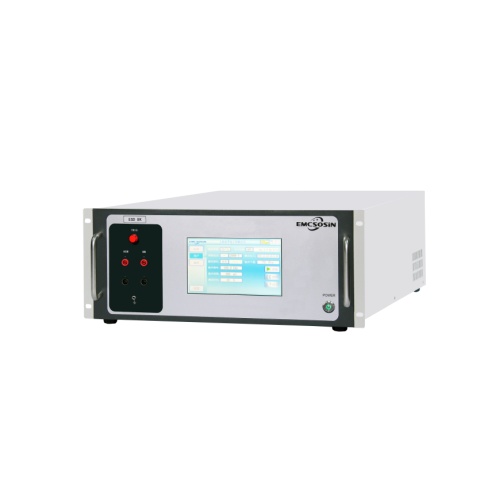

En/ Iec 61000-4-5 Lightning Simulator For Emc Pre-compliance Test

With years of practice of this area, we are indulged in exporting, manufacturing, trading and supplying a huge spectrum of EN/ IEC 61000-4-5 Lightning Simulator for EMC Pre-compliance Test in Shanghai, China. Surge pulses occur due to direct or indirect lightning strikes or by power system switching transients caused by switching inductive loads or short circuits.
This leads to currents or electromagnetic fields causing high voltage or current transients. The energy is particularly large. And the impact on the product may be destructive.
A lightning surge generator is used to evaluate the performance of device subjected to high energy disturbances from the power line port and other signal line ports.
Our surge generators simulate these disturbances for all the necessary voltage levels in accordance with IEC/ EN 61000-4-5. See the following for more details.

Technical data
1) Model: SUR S10
2) Surge Waveform: Open-circuit voltage wave: 1.2/50I s
Short-circuit current wave: 8/20I s
3) Open-circuit Voltage: 0.2~ A 10KV
4) Short-circuit Current: 0.1~A 5KA
5) Polarity: Positive/ negative/ alternating
6) Phase Angle: 0~ 359A synchronous, asynchronous, or automatic
7) Effective output impedancei 2 ohm (common mode 12 ohm)
8) Coupling/ decoupling network: Built-in, single-phase three-wire, 16A
(customer specific on demand)
