3 Phase Eft And Burst Immunity Test Simulator With High Stability
Share

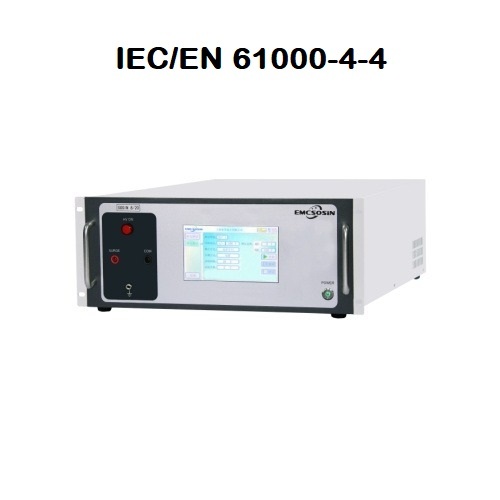

3 Phase Eft And Burst Immunity Test Simulator With High Stability

Price: 4900 USD / SET SET Unit

Get Latest Price

Minimum Order Quantity :

10 SET SET Unit

In Stock

In Stock

Product Specifications

ModelEFT T4
Output Voltage0.1~5kV
Frequency1kHz~1.2MHz
Pulse PolarityPositive/negative
Pulse Width50ns
Internal Resistance50Ω
UsageBurst immunity testing of electrical equipment and components according to IEC 61000-4-4 standard.
StandardIEC 61000-4-4
FeaturesIEC Compliant, Touchscreen display, Programmable, High frequency, PC control, Easy operation
Equipment Type3 Phase EFT/Burst Immunity Test Simulator
ColorWhite
ApplicationEvaluate immunity of power supply, signal, control & grounding ports against EFT/Burst interference
Test Speed1HzaEUR"1000kHz, continuously adjustable
Test Width50ns A+-30% (50I(c) load), 35aEUR"150ns (1kI(c) load)
FOB PortShanghai
Payment TermsPaypal, Cash Advance (CA), Cash in Advance (CID), Telegraphic Transfer (T/T), Western Union
Supply Ability3000 Per Month
Delivery Time15 Days
Sample AvailableNo
Sample PolicyContact us for information regarding our sample policy
Packaging DetailsExport Standard Packing, Wooden Case/ Pallet
Main Export Market(s)Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe
Main Domestic MarketAll India
CertificationsISO 9001, CE, Ilac-MRA, CNAS accredited calibration certificate

Product Overview

Key Features


Overview
In
a circuit, switching transients (to cut off inductive load, relay contact
bounce, etc.) usually interferes with other electrical and electronic equipment
in the same circuit. The characteristics of this type of interference are high
amplitude, short rise-time, high repetition rate and low energy. The narrow
pulses appeared in groups can charge the capacitance of the semiconductor
device, which may cause circuit or device errors when accumulated to a certain
extent. Electrical fast transient (EFT)/burst simulators are used for
evaluating the performance of electrical and electronic equipment power supply
port, signal, control, and grounding ports when subjected to electrical fast
transient burst interference.




The
EFT S/T series are the state-of-the-art EFT/Burst testers with a built-in
coupling/ decoupling network for single phase or three-phase mains supply line
and a HV terminal to connect a capacitive coupling clamp. Products performance
fully comply with IEC/EN 61000-4-4 standard.


Standard and basis of product designing & manufacturing

IEC/EN 61000-4-4: Testing and
measurement techniques- Electrical fast transient/burst immunity test


Features:

User friendly 7 touch panel display

Support multi-language &
facilitate users

Built in voltage monitoring probe,
real-time display of peak voltage

Built-in environment self-test
program

Programmable operation

l Built-in international standard
test levels (Pre-programmed IEC 61000-4-4 test settings)

l Built-in automatic
coupling/decoupling network















l RS232/RJ45 interface, for PC
control operation & printable test report


Technical data














































































Model



EFT
T6



Standard



IEC/EN 61000-4-4



Operation



7 touch
panel display



Output voltage



0.2~6kV



Frequency



1Hz~1000kHz10%,

continuously
adjustable



Polarity



Positive/negative/alternating



Running time



1~9999s,continuously
adjustable



Internal
resistance



50 10%



Pulse rise time



5ns30%



Pulse
width



50ns30%
(
50 load)



35ns~150ns (1k load)



Output mode



IEC,
user-defined, programmable



Coupling-out



BNC, coupling/decoupling network



Number
of pulses



1~255,
continuously adjustable



Phase



0~360synchronous,

asynchronous, automatic



Burst
period



0.01s~300.00s,
continuously adjustable



Coupling/decoupling network



Built-in,
three-phase five-wire, 16A


(Custom specific on demand)



Power
supply



AC220V10%50/60Hz



Ambient temperature



15~35
