Electrical Testing & Measuring Equipment

What is Electrical Testing & Measuring Equipment?

In order to test electrical gadgets, signals must be generated and the devices' responses must be recorded using electronic test equipment (DUTs). Through this method, flaws in the device can be isolated and the DUT's proper operation can be demonstrated. Any meaningful work on electronic systems requires the use of electronic test equipment.

Testing circuits and systems during development typically requires more sophisticated equipment than what is required for production testing or when troubleshooting in-field devices.

In the late 1960s, Hewlett-Packard created the GPIB standard as a means to link and manage the programmable instruments it sold. Due to the proliferation of digital controllers and programmable test equipment, a standardized, high-speed interface enabling interoperability between instruments and controllers from different manufacturers is essential.

What are the tools used in testing electrical systems?

1. Earth ground Tester

There is no need to set up extra test stakes when using the Earth Ground Clamp to gauge earth ground ac leakage. Disconnecting parallel grounds is unnecessary while using this earth ground tester. Allows for more convenient ground testing in areas where placing test stakes in the soil would be impractical, such as inside buildings, on power pylons, and similar areas. Connects wirelessly to a smartphone app, allowing for remote access, storage, and sharing of measurement data.

2. Fluorescent light tester

Light Tester eliminates the need for trial-and-error approaches to fixing fluorescent lighting, saving you significant effort and time. This handy little gadget can evaluate five different aspects of your fluorescent lighting setup at once. This device checks the lamp, ballast, pin continuity, and ballast type discriminator without touching any of the components.

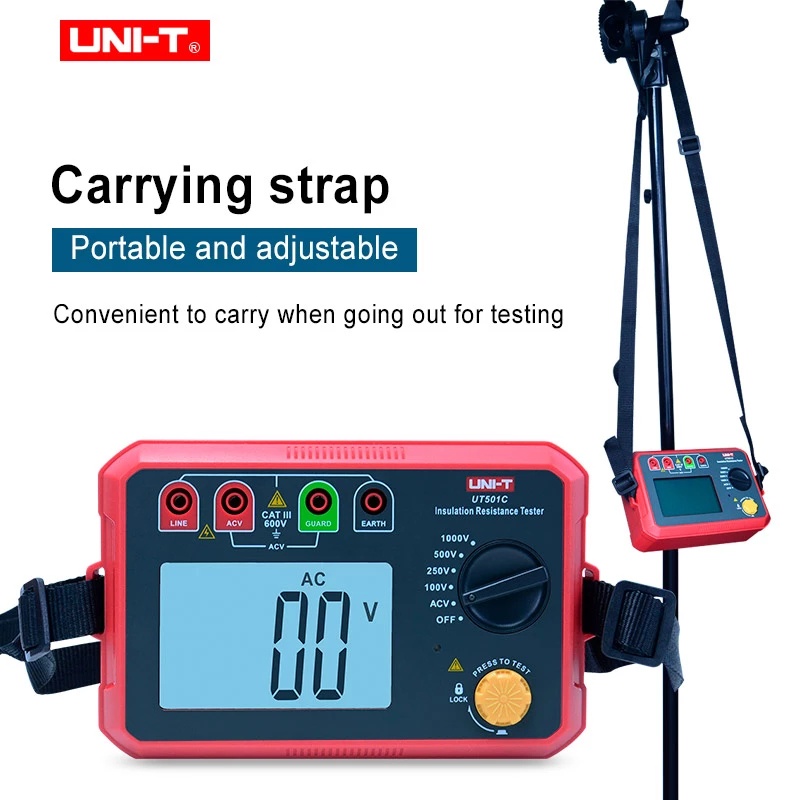

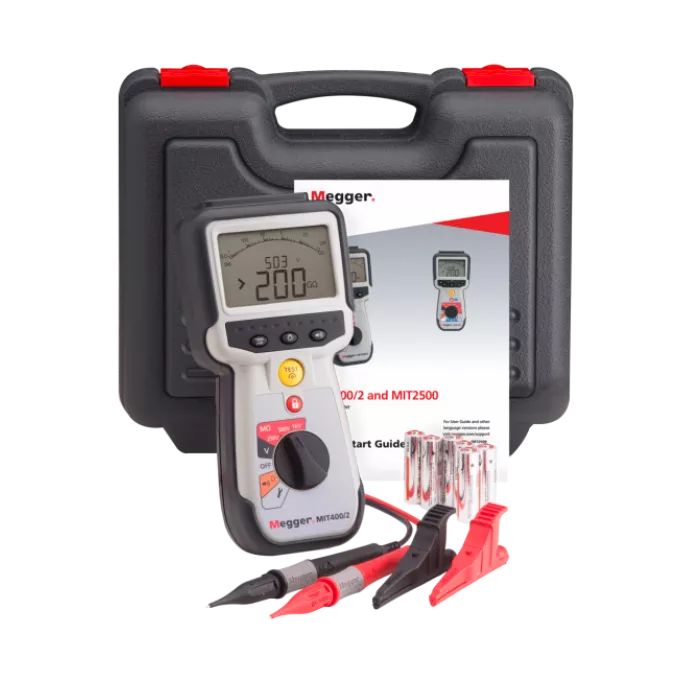

3. Insulation tester

The Insulation Tester is a hybrid digital insulation tester and true-rms digital multimeter. Insulation issues can be pinpointed using this meter, and readings can be stored locally.

4. Multimeter

The Digital Multimeter was made with electricians in mind and includes features such as non-contact voltage detection, LoZ and Auto Volts in addition to the more common 10 A, continuity, frequency, resistance, and capacitance measurements.

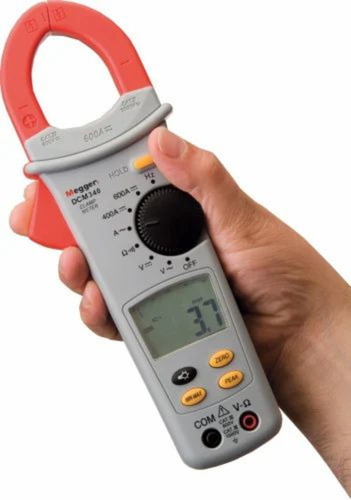

5. Clamp Meter

Safely monitor current flow by clamping a True-RMS Clamp Meter onto the conductor and seeing the results on your smartphone outside of the arc flash area. Log and trend measurements of up to 1000 A ac/dc and record transient faults.

6. Insulated Tools

All of the safety, dependability, and user-friendliness standards that apply to testing equipment are also met by the new line of insulated hand tools. Insulated tools help keep you safe and last a long time thanks to their precision engineering and German CMV steel construction.

7. Non-Contact Voltage Tester

A voltage meter that doesn't require the use of test leads is a time- and safety-saving innovation. With its open fork design and FieldSense technology, the Electrical Tester can effortlessly measure voltage up to 1000 V ac and 200 A ac by simply sliding it over the conductor. And you can carry it about with you easily because it is compact.

Overview of electrical measuring instruments

Electrical meters quantify Electrical Testing & Measuring Equipment quantities like voltage, current, and power by mechanical means. In order to monitor electrical activity and detect the existence of voltage or current, electricians need electrical measurement equipment. Power, voltage, current, power factor, and resistance are just few of the electrical parameters that may be measured using this device.

Classifications of Electrical measuring instrument

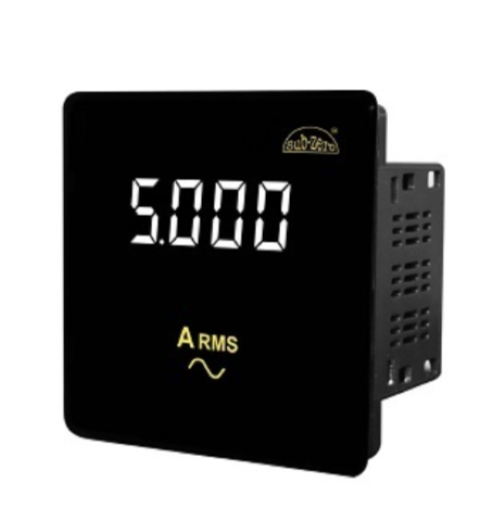

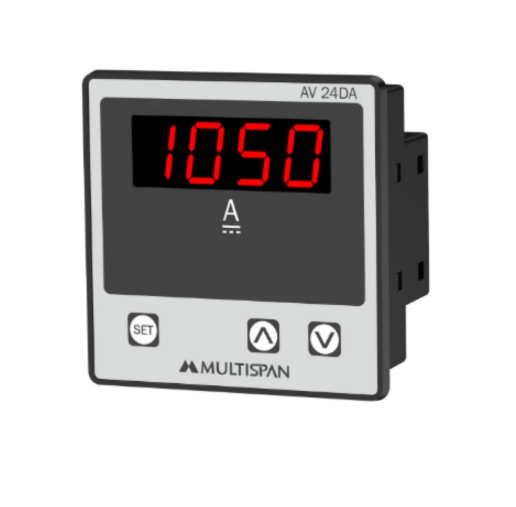

1. Ammeter

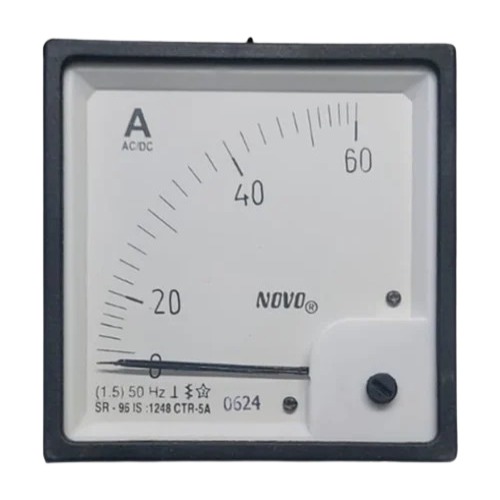

An ammeter is a device for measuring the amount of electric current, in amperes, flowing through a specific section of an electrical circuit. The ammeter must be connected in series with the branch being measured, and its low resistance is essential for maintaining an accurate reading of the current flowing through it. A micro-ammeter is a tool for measuring extremely low currents.

Types:

• Moving Iron Ammeter
• Zero centers Ammeter
• Galvanometer
• Shunt
• Clamp Meter

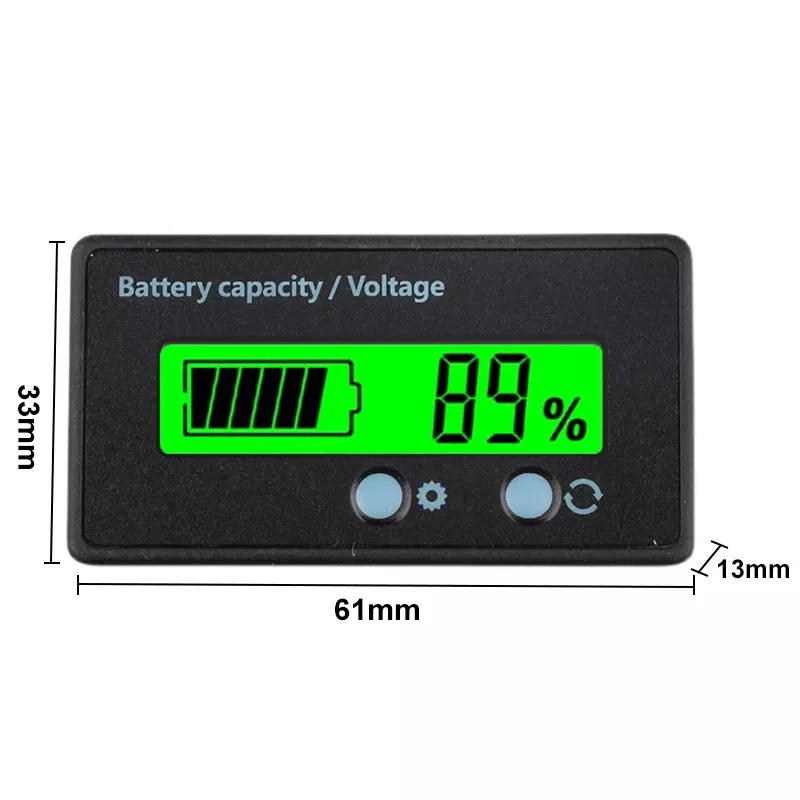

2. Voltmeter

These voltmeters are accurate equipment for measuring voltage with no charge transfer. In contrast, the transfer of charge to a traditional voltmeter causes the source voltage to be loaded and adjusted.

3. Ohmmeters

The resistance value can be reliably measured with an ohmmeter. It is possible to categorize ohmmeters into the series type and the shunt type based on how they measure resistance and how they are built.

4. Potentiometer

The unknowable voltage can be measured with a potentiometer. The standard cell or another known voltage reference source will be used to supply the required constant voltage. Because the outcome is not based on the deflection of the pointer, measurements made with a potentiometer are extremely precise.

Electrical Testing Equipment Market Insights

1. An overview

In 2018, the electrical testing services market in India was worth US$ 162.0 mn. Researchers predict that this figure will rise to US$ 232.0 mn. by 2027.

Productivity and quality are both increased by electrical testing equipment. Electronics manufacturing and problem diagnosis both benefit greatly from the use of electrical testing equipment. When compared to other kinds of testing equipment, electrical testing gear is a bargain. Laboratories with a variety of functions, such as those that provide repair services and evaluate the quality of work, can also benefit from electrical testing equipment.

2. Market Dynamics

Businesses today frequently use third-party electrical testing services to free up internal resources for more strategic endeavors. Even though this tendency will most likely continue, clients will have to pay more to get started with outsourcing testing services.

Moreover, businesses are developing their own testing divisions, complete with the tools and trained professionals they need to conduct their own tests. As a result, costs for contracted testing services are likely to rise, which would slow expansion of the India electrical testing services market.

It takes a wide variety of instruments to keep tabs on all the circuit breakers, transformers, and other devices that power an electrical system. However, due to the extreme nature of the equipment it evaluates, these instruments tend to be quite pricey.

These testing devices have to be able to withstand harsh conditions including high voltages, fluctuating currents, and other shocks. With the rising cost of these tools, capital expenditures have increased.

3. Market opportunities

Heavy, cumbersome, and cumbersome pieces of machinery utilized in sectors like power generating and steel production. It may take months or even years to replace this machinery if it breaks down, as doing so must adhere to the standards imposed by international certifying authorities.

However, this can be enhanced by employing on-demand testing services that are accredited by organizations like the National Electrical Testing Association (NETA), the Electrical Research and Development Association (ERDA), and the Bureau of Indian Standards (BIS). As a result, this trend is predicted to present significant growth potential for the market's dominant players.

4. Market Trends

It is possible to offer energy to every home in India with the existing power generation. However, only about 55% of Indian households are reached by the country's weak distribution and transmission network. In turn, this is anticipated to fuel the market's expansion going forward.

Several initiatives have been launched by the government of India to improve and expand the country's transmission and distribution network. To get there, we need to fix things like power outages, theft, red tape, and broken equipment. Based on projected population and household growth over the next three years, the analysis concludes that India will not require any new power plants if existing facilities are utilized to their full capability.

The power generation station sub-segment of the India Electrical Testing Services market was worth $26.5 Mn in 2018 and is projected to expand at a CAGR of 2.9% between 2019 and 2027.

5. Key Developments

In order to better serve the growing demand for its electrical engineering products, Technomark Engineers Pvt. Ltd. established Technomark Sales Corporation in October 2010.

6. Key Players

• Voltech Group
• Rulka electrical
• Ultra Electric Company
• Inser Hitech Engineers
• Technomark Engineers
• INEL Power System Engineers
• Laxmi Associates
• Powertest Asia

You can judge the significance of test equipment by the fact that they are required for the development of nearly all electronic and electrical products and for the maintenance and repair of already existing devices. Almost every piece of electronic or electrical equipment needs to be checked by Test Equipment before it can be repaired or maintained. If we put these testing tools to good use, we can minimize system downtime caused by repairs and maintenance and extend their useful lifespan.

FAQs: Electrical Testing and Measuring Equipment

Q. What is test ammeter?

Ans. An ammeter is a device used to measure the amount of electric current, in amperes, flowing through a circuit, whether it is direct current (DC) or alternating current (AC).

Q. What is an ohm meter used for?

Ans. Because the ohm is the unit of electrical resistance, an ohmmeter is a type of electronic equipment typically employed for this purpose. The quantity known as "electrical resistance" measures how much a thing fights against the passage of electric current.

Q. What equipment is used to test a battery?

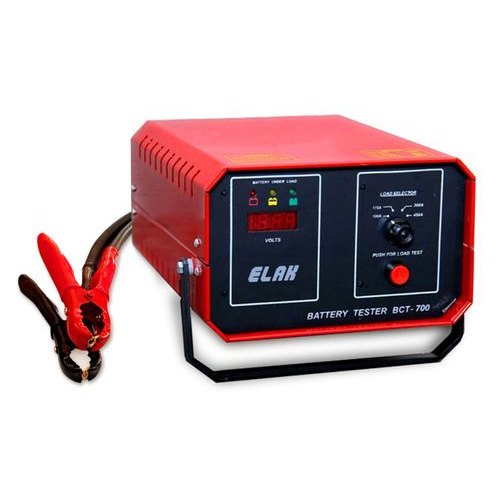

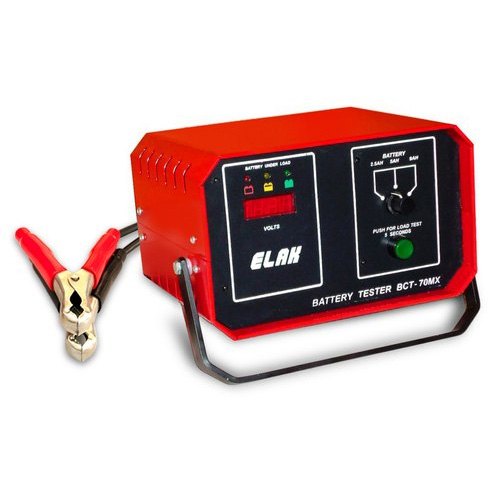

Battery ground fault tracer, Battery discharge Kit, Battery impedance Tester, and Battery voltage monitor are some equipment use for testing a battery.

Q. Which is the main measuring equipment for voltmeter?

Ans. A galvanometer is the most common measuring equipment for voltmeter.
