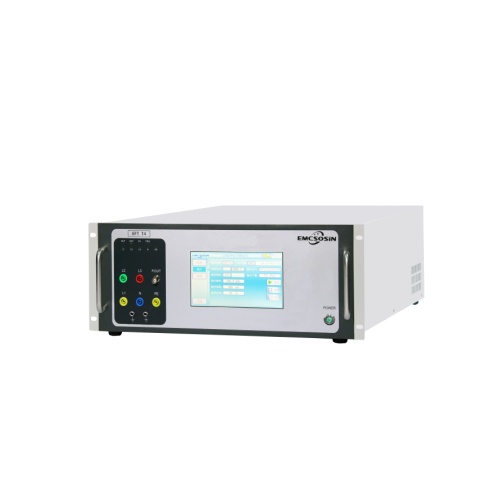

Electrical Fast Transient Test Generator For Eft Immunity Testing
Price:
Get Latest Price
Minimum Order Quantity :
1 Unit
In Stock
Product Specifications
| Model | EFT S4 |
| Output Voltage | 0.1~5KV |
| Frequency | 1kHz~1.2MHz |
| Pulse Polarity | Positive/Negative |
| Internal Resistance | 50Ω |
| Pulse Front Edge | 5ns |
| Pulse Width | 50ns |
| Pulse Number | 1~255 |
| Phase Angle | 0~359° |
| Burst Period | 0.15~99.99s |
| Usage | EFT immunity testing of electronic equipment |
| Compliance | IEC 61000-4-4 |
| Features | IEC 61000-4-4 Compliant, User-friendly, Programmable, High Frequency, PC Control, Test Report |
| Supply Ability | 3000 Per Year |
| Delivery Time | 1 Week |
| Sample Available | Yes |
| FOB Port | Shanghai |
| Packaging Details | export standard packing, wooden case/ pallet |
| Main Export Market(s) | Middle East |
| Sample Policy | Contact us for information regarding our sample policy |
| Certifications | ISO 9001, CE, Ilac-MRA, CNAS accredited calibration certificate |
| Payment Terms | Paypal |
| Main Domestic Market | All India |
| GSTIN | 0% |
Product Overview
Key Features
EFT T6 Electrical Fast Transient/Burst Generator
In a
circuit, switching transients (to cut off inductive load, relay contact bounce,
etc.) usually interferes with other electrical and electronic equipment in the
same circuit. The characteristics of this type of interference are high
amplitude, short rise-time, high repetition rate and low energy. The narrow
pulses appeared in groups can charge the capacitance of the semiconductor
device, which may cause circuit or device errors when accumulated to a certain
extent. Electrical fast transient (EFT)/burst simulators are used for
evaluating the performance of electrical and electronic equipment power supply
port, signal, control, and grounding ports when subjected to electrical fast
transient burst interference.
The EFT
S/T series are the state-of-the-art EFT/Burst testers with a built-in coupling/
decoupling network for single phase or three-phase mains supply line and a HV
terminal to connect a capacitive coupling clamp. Products performance fully
comply with IEC/EN 61000-4-4 standard.
Compliant standard
l IEC/EN 61000-4-4: Testing and
measurement techniques- Electrical fast transient/burst immunity test
Features
l User friendly 7 touch panel display
l Support multi-language &
facilitate users
l Built in voltage monitoring probe,
real-time display of peak voltage
l Built-in environment self-test
program
l Programmable operation
l Built-in international standard
test levels (Pre-programmed IEC 61000-4-4 test settings)
l Built-in automatic
coupling/decoupling network
l RS232/RJ45 interface, for PC
control operation & printable test report
Technical data
| Model | EFT T6 |
| Standard | IEC/EN 61000-4-4 |
| Operation | 7 touch panel display |
| Output voltage | 0.2~6kV |
| Frequency | 1Hz~1000kHz 10%, continuously adjustable |
| Polarity | Positive/negative/alternating |
| Running time | 1~9999s, continuously adjustable |
| Internal resistance | 50 10% |
| Pulse rise time | 5ns 30% |
| Pulse width | 50ns 30% (50 load) |
| 35ns~150ns (1k load) | |
| Output mode | IEC, user-defined, programmable |
| Coupling-out | BNC, coupling/decoupling network |
| Number of pulses | 1~255, continuously adjustable |
| Phase | 0~360synchronous, asynchronous, automatic |
| Burst period | 0.01s~300.00s, continuously adjustable |
| Coupling/decoupling network | Built-in, three-phase five-wire, 16A (Custom specific on demand) |
| Power supply | AC 220V 10% 50/60Hz |
| Ambient temperature | 15~35 |
Company Details
Shanghai Sosin Electronics (EMCSOSIN)/Shanghai Shinegil is a leading high-tech enterprise integrating production, sales, and service. We’ve been committed to the EMC (electromagnetic compatibility) testing field, specializing in providing EMC testing instruments, product rectification and training services. Products are widely used in electronics manufacturing, electric power, new energy, communication, aerospace, teaching, renewable energy, automotive, scientific research, and other industries. We also provide customers with professional EMC system integration solutions.
As a well-known professional instrument manufacturer, our products can meet various industrial testing requirements. With the company's strong product support, application technology strength, system supporting capabilities and high-quality service, we offer our users the most comprehensive testing solutions. We are also ISO 9001 & CE certified.
Our self-developed ESD (electrostatic discharge) generator, EFT (electrical fast transient)/burst generator, lightning surge generator, voltage dips simulator and other EMC testing equipment enjoy a high reputation at home and abroad. We have established a complete sales network and service system throughout the country. It is our goal to develop better products, offer higher quality service, create the best brand and work hard to solve all kinds of EMC testing problems for our clients. Providing best service and creating values for customers is our eternal pursuit!
