Dia 95 Brushless Motor
Price:
Get Latest Price
In Stock
Product Specifications
| Diameter | 95mm |
| Operating Voltage | 150-265V |
| Operating Temp | 0-55°C |
| Insulation Resistance | >10MΩ |
| Materials | Metal, copper |
| RPM | Variable |
| Model Numbers | Multiple |
| Features | High tensile strength, Sturdy construction, Longer lifespan, Dimensional accuracy, High efficiency, Thermal protection, Adjustable speed, Auto power down |
Product Overview
Key Features
Clients can avail from us an extensive
range of Dia 95 Brushless Motor.
Assembled by our highly skilled and knowledgeable professionals using premium
quality raw materials, this product is completely at par with the international
standards. Dia 95 Brushless Motor is
highly demanded in the market for its high tensile strength, sturdy
construction, dimensional accuracy and longer functional life. This motor is
offered in different technical specifications to meet the varied needs of
clients.
Applications
- Air Conditioners
- Class-B Insulation
- Operating Temperature -30 oC to + 60 oC
- Humidity 55 oC
- Insulation Resistance > 10M
Specifications
- Operating voltage: 150V < in < 265V
- Motor trip voltage: <160, >270V
- Over load trip current factory set
- Operating temp: 0 oC to 55 oC
- RPM Vs Voltage: Contact factory
- Time delay to start: ~5sec
Protections:
- Auto power down for locked rotor
- Current based trip - Factory set
- Over/Under voltage protection
- 3 Trials of auto restart before shut down
Features (Optional)
- Constant RPM Vs Voltage
- Manual/Remote adjustable speed control
- Higher efficiency motor
- Thermal protection
Technical Specifications
| Electrical Performance | Controller-MC0N004 | |||||||||
| Model No | Electrical Source | No Load Typical | Operating Point |
Locked Rotor | ||||||
| Voltage | Freq | Speed | Current | Input | Output | Speed | Torque |
| Current | |
| V | Hz | RPM | A | W | W | RPM | Nm | Efficiency | A | |
| MEC495B25A/5DL-SJ1 | 48V DC | - | - | 0.58 | 28.0 | 21.7 | 1100 | 0.19 | 78% | Auto Power Down In |
| MEC48325A/5DL-SJ2 | 48V DC | - | - | 2.1 | 100.0 | 74.0 | 1100 | 0.64 | 74% | <8 Sec. Pre Set For Locked Rotor |
| MEC495B25A/2AL-SJ3 | 220-240V AC | 50/60Hz | 1400 | 0.6 | 80.0 | 55.0 | 930 | 0.57 | 69% | Contition |
| MEC495B25A/2AL-SJ4 | 220-240V AC | 50/60Hz | 1400 | 0.75 | 107.0 | 73.0 | 950 | 0.78 | 73% |
|
| MEC495B25A/2AL-SJ5 | 220-240V AC | 50/ |
| 1.1 | 132.0 | 93.0 | 930 | 0.95 | 71% |
|
Mechanical Dimensions
| Model No. | A | B | C | D | E | F | G | H | I | J | K | L |
| MEC295S25A/5DL-SJ1 | 127 | 98 |
| 170 |
| 82 | 90 | 52 | 8 | 7 | 132 |
|
| MEC283S25A/5DL-SJ2 | 27 | 98 |
| 170 |
| 82 | 90 | 52 | 8 | 7 | 132 |
|
| MEC295S25A/2AL-SJ3 | 127 | 98 |
| 170 |
| 82 | 90 | 52 | 8 | 7 | 132 |
|
| MEC295S25A/2AL-SJ4 | 127 | 98 |
| 170 |
| 82 | 90 | 52 | 8 | 7 | 132 |
|
| MEC295S25A/2AL-SJ5 | 127 | 98 |
| 170 |
| 82 | 68 | 50 | 12.7 | 11.4 | 132 | 138 |
Company Details
Focusing on a customer-centric approach, MICRO INSTRUMENTS CO has a pan-India presence and caters to a huge consumer base throughout the country. Buy Electric Motors & Engines in bulk from MICRO INSTRUMENTS CO at Trade India quality-assured products.
Business Type
Exporter, Manufacturer, Distributor, Supplier, Trading Company
Employee Count
150
Establishment
1989
Working Days
Monday To Sunday
GST NO
06AAOFM8899H2ZC
Certification
AN ISO 9001-2000
Related Products

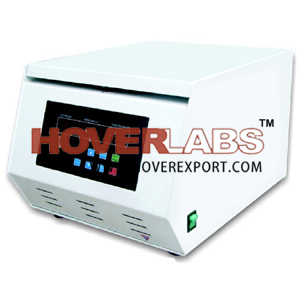

Bench Top Lab. Centrifuge 5000 r.p.m. (Brushless Motor)
