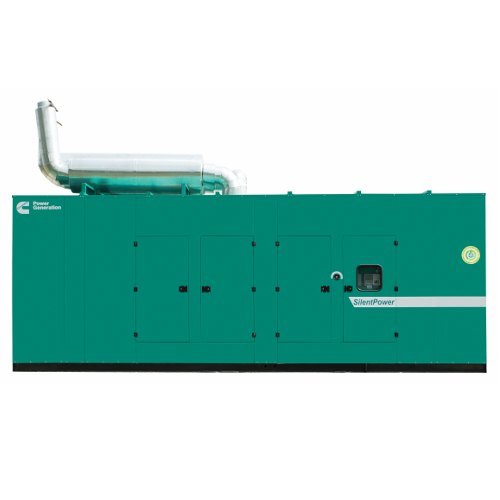

Cummins 750 Kva Three Phase Silent Diesel Generator

Cummins 750 Kva Three Phase Silent Diesel Generator

150000.00 - 1500000.00 INR
Minimum Order Quantity :
1 Piece/Pieces
Main Export Market(s)
Central America, Western Europe, Asia, Africa, Australia, South Americ
Payment Terms
Cheque, Telegraphic Transfer (T/T)
View more details
2 Years Member Since : 2 Years 5
Mr Darshan Thakkar
Ahmedabad, Gujarat ...More 501, JAIHIND HN SAFAL, Besides New York Tower, Thaltej Cross Roads, Sarkhej -Gandhinagar Highway, Ahmedabad, Gujarat, 380054, India

Open Map

View Number
Product Details
Main Export Market(s)Central America, Western Europe, Asia, Africa, Australia, South America, Middle East, Eastern Europe, North America
Payment TermsCheque, Telegraphic Transfer (T/T)
Sample AvailableYes
Supply Ability1 Per Day
Delivery Time3-5 Days
Offered ByGMDT MARINE AND INDUSTRIAL ENGINEERING PRIVATE LIMITED
Product Added OnOct 31, 2020
Last Updated OnSep 15, 2021
BrandCummins
Product Description

Brand Cummins
Rating 750 kVA / 600 kWe
Fuel Type High Speed Diesel
Number Of Phase 3
Aspiration Turbocharged Aftercooled
Current 1043 A
Exhaust Temperature 520 Deg C
Mean Piston Speed 7.95 m/s
Starting System 24 V DC Electrical
Total Coolant Capacity 330 ltr
Weight 5800 kg (Engine+Radiator)
Number Of Cylinder 12,Vee
Compression Ratio 16.7/1
Displacement 38 L
Enclosure IP 23
Stator Winding Double layer lap
Insulation Class H Class
Lube Oil Sump Capacity 140 -114 High-Low level (litre)
Rotor Balancing Dynamically Balanced
Output Voltage and Frequency 415 V,50 Hz
Power Factor 0.8 (lagging)
Engine Model KTA38-G12
MoEF Certified Power 1069 bhp
Required Power for Rated kVA 891 bhp
Cooling Liquid cooled EG Compleat 5050
Bore x Stroke 159 x 159 mm
Fuel Consumption 130.42 @75% load with radiator and fan(litre/hr),165@100% load with radiator and fan(litre/hr)
Performance Class of Generator Set ISO 8528-5 G2
Lube Oil Specification CH4 15W40
Total Lubrication System Capacity 155 ltr
No of banks x Exhaust pipe size 2 x 8 inch
Engine Dimension 2269 x 1436 x 1764 mm (LxWxH)
Combustion Air Intake 2011 @100% load (+/-5%) (cfm)
Alternator Make Stamford (CGT)
Alternator frame HCI634W
Voltage Regulation +/- 1%
Winding Pitch 2/3
Total Harmonic Distortion No load less than 1.5 %,Non distorting balanced linear load less than 5 %
Maximum Unbalanced Load Across Phases Less than or equal to 25%
Telephonic Harmonic factor Less than 2%
