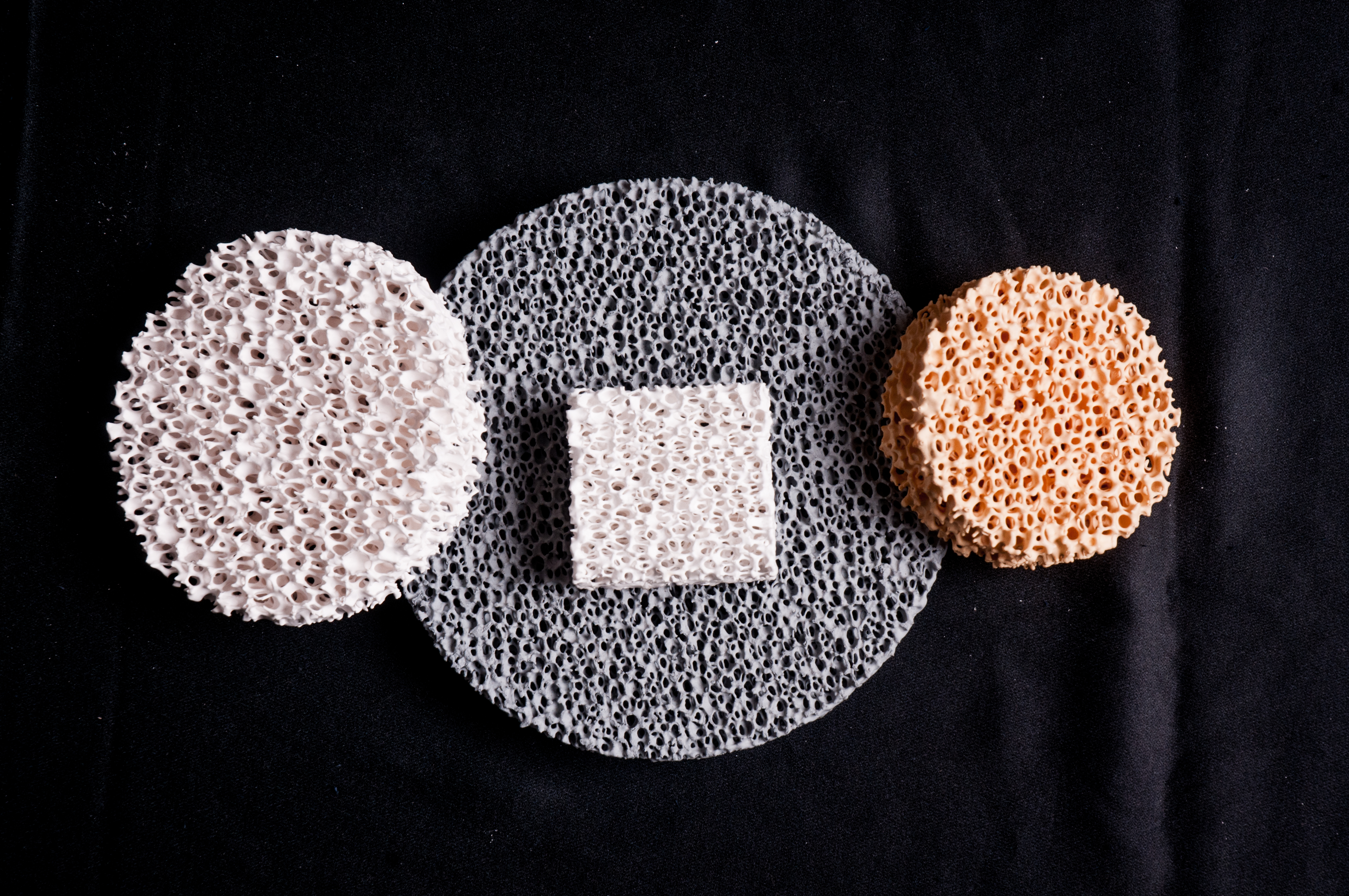

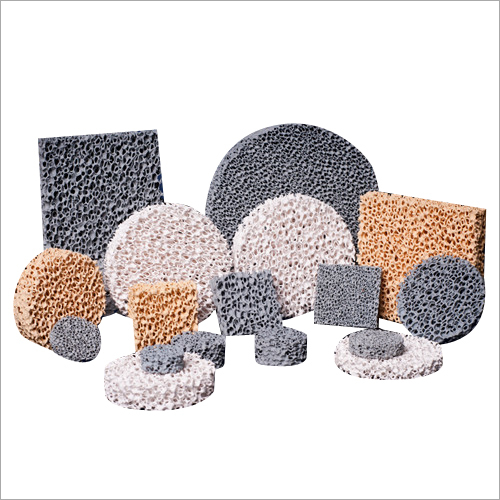

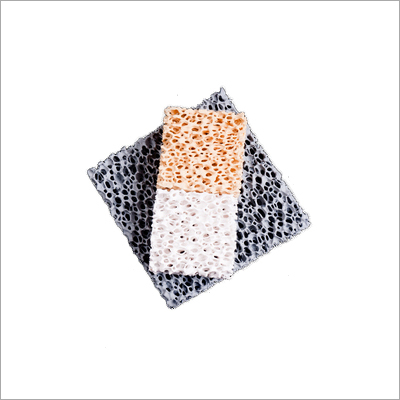

Cearmic Foam Filter For Sand Casting And Investment Diameter: 40-500 Millimeter (Mm)

3000 Piece/Pieces

2000 Piece/Pieces

Three years

Three years

mass production

mass product

10-40ppi

10-40ppi

Round ,square ,custom geometric shapes

Round ,square ,custom geometric shapes

40-500

40-500

40-500 Millimeter (mm)

40-500 Millimeter (mm)

15-6000 Grams (g)

26-6000 Grams (g)

yellow ,white ,grey

yellow ,white ,grey

2-45kg/s

2-45kg/s

15-25 Days

15-25 Days

Physical properties and ApplicationsA A A A A A A A A A Physical Properties For Ceramic Foam Filter Material SIC AL ZR Color Grey Black White Yellow Pore Density 10-40 PPI 10-60 PPI 10-40 PPI Porosity 80%-90% 80%-90% 80%-90% Operating temperature (A C) a 1500 a 1100 a 1700 Bending Strength (MPa) a Y0.8 a Y0.6 a Y1.0 Thermal Shock Resistance(times/1100A C) 6 6 6 Applications Ductile cast iron ,Grey iron and other cast iron and nonferrous alloy Aluminum , Aluminum alloys and other non-ferrous alloy. Stainless steel ,Carbon steel and large cast iron . How To Choose Porosity Of Filter: a c The higher porosity, the better filtration. But too high porosity leads to low speed rate of metal. This is especially important for SG iron.Usually our recommendation are as belowi a c 10ppia for ductile iron, big grey iron, steel casting. a c 20ppia for grey iron, malleable cast-iron,non ferrous alloy casting. a c 30ppia for grey and malleable cast-iron, non ferrous alloy casting. How To Set Filter: The ceramic foam filter can be used in the filtration chamber of a gating system as well as for direct pouring on the filter. Filter is usually set above or below the sprue, runner, in pouring cup.

Physical properties and ApplicationsA A A A A A A A A A Physical Properties For Ceramic Foam Filter Material SIC AL ZR Color Grey Black White Yellow Pore Density 10-40 PPI 10-60 PPI 10-40 PPI Porosity 80%-90% 80%-90% 80%-90% Operating temperature (A C) a 1500 a 1100 a 1700 Bending Strength (MPa) a Y0.8 a Y0.6 a Y1.0 Thermal Shock Resistance(times/1100A C) 6 6 6 Applications Ductile cast iron ,Grey iron and other cast iron and nonferrous alloy Aluminum , Aluminum alloys and other non-ferrous alloy. Stainless steel ,Carbon steel and large cast iron . How To Choose Porosity Of Filter: a c The higher porosity, the better filtration. But too high porosity leads to low speed rate of metal. This is especially important for SG iron.Usually our recommendation are as belowi a c 10ppia for ductile iron, big grey iron, steel casting. a c 20ppia for grey iron, malleable cast-iron,non ferrous alloy casting. a c 30ppia for grey and malleable cast-iron, non ferrous alloy casting. How To Set Filter: The ceramic foam filter can be used in the filtration chamber of a gating system as well as for direct pouring on the filter. Filter is usually set above or below the sprue, runner, in pouring cup.

TIANJIN SHANGHANG ,CHINA

TIANJIN SHANGHANG ,CHINA

Within a certain price range free samples are available

Free samples available with shipping and taxes paid by the buyer
