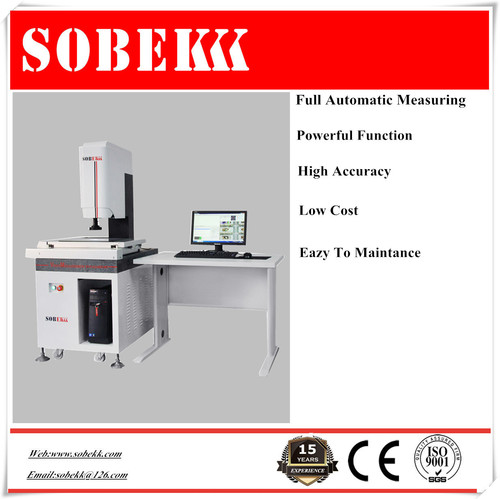

Ac300-cnc Economic Cnc Video Measuring System

Our company is popular manufacturer and exporter of AC300-CNC Economic CNC Video Measuring System in Guiyang, Guizhou, China.

Features
*Imported key components with rigorous, normative assembling & adjustment
*3-axis CNC controls, full-automatic Measurement
* Equipped with high-definition detent Lens
* High-definition frame grabber
* Precision "HIWIN" P level linear guideway &
V type cross roller guideway; high-precision
linear drive screw rod made by Germany
* High-accuracy linear scale with resolution of 1um
Specification
Model: AC300CNC
Measuring range(mm): 300*200*180
Machine size(mm):850*1300*1550
Weight(kg): 160
Max. load(kg):20
Accuracy of X-Y axis:3+L/150um
Accuracy of Z axis:5+L/100um
XYZ resolution:1.0um
Repeatability(mm):0.005
Linear encoder:glass linear scale
Moving speed (mm/s):X-Y 200, Z100
Camera type: SBK-HC536 1/2 inches 700 lines industrial color camera
Liner guide: Z axis"Hiwin" P linear guideway, XY use "V" type linear guideway
Screw rod:Z axis"TBI" ground ball screw rod, XY use normal screw rod
Optics:6:5:1 continual zoom st-ep lens
Magnification:optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X
Software:SBK-CNC full-automatic measuring software (simply versions)
Control system:SBK4000 fully closed-loop control
