Graphic Lcd Display In Ta-ya-shang

Product DescriptionLCD Display Module Number of Characters : 8 characters x 2 Lines Module dimension : 58.0 x 32.0 x 13.2 (MAX) mm View area : 38.0 x 16.0 mm Active area : 27.81 x 11.5 mm Dot size : 0.56 x 0.66 mm Dot pitch : 0.60 x 0.70 mm Character size : 2.96 x 5.56 mm Character pitch : 3.55 x 5.94 mm LCD type : VA

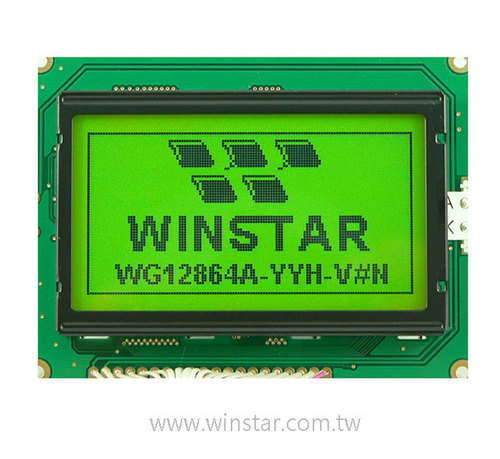

Product DescriptionGraphic Display General Specification : Number of dots : 128 x 64 Module dimension : 93.0 x 70.0 x 13.6 (MAX) mm View area : 72.0 x 40.0 mm Active area : 66.52 x 33.24 mm Dot size : 0.48 x 0.48 mm Dot pitch : 0.52 x 0.52 mm LCD type : STN Positive, Yellow Green Transflective (In LCD production, It w

Product DescriptionWINSTAR 192x64 Graphic LCD Module Number of dots: 192 x 64 Module dimension : 130.0 x 65.0 x 12.9 mm View area : 102.0 x39.0 mm Active area : 96.0 x 32.0 mm Dot size : 0.46 x 0.46 mm Dot pitch : 0.50 x 0.50 mm LCD type : STN Positive, Yellow Green Transflective (In LCD production, It will occur slig

Product Description50x16 Graphic OLED Display Module Dot Matrix : 50 x 16 Dots Module dimension : 58.0 x 32.0 x 10.0(MAX) mm View area : 38.0 x 16.0 mm Active area : 29.96 x 11.16 mm Dot size : 0.56 x 0.66 mm Dot pitch : 0.60x 0.70 mm Panel Type : OLED , White, Yellow, Red, Green, Blue Duty : 1/16 For more details, pl

Product Description128x128 LCD Display Number of dots : 128 x 128 Module dimension : 85.0 x 100.0 x 14.5 (MAX) mm View area : 62.0 x 62.0 mm Active area : 55.01 x 55.01 mm Dot size : 0.40 x 0.40 mm Dot pitch : 0.43 x 0.43 mm LCD type : STN Positive, Yellow Green Transflective (In LCD production, It will occur slightly

Product DescriptionWINSTAR 1.1" Graphic OLED Display 96x64 Dot Matrix : 96 x 64 Module dimension : 33.59 x 23.62 x 1.65 mm Active Area : 23.49 x 15.65 mm Pixel Size : 0.215 x 0.215 mm Pixel Pitch : 0.245 x 0.245 mm Display Mode : Passive Matrix Display Color : Monochrome (Yellow) Drive Duty : 1/64 Duty More products,

Product DescriptionWINSTAR 2.7 inch Graphic OLED Display Dot Matrix : 128 x 64 Module dimension : 73.0 x 41.86 x 2.15 mm Active Area : 61.41 x 30.69 mm Pixel Size : 0.45 x 0.45 mm Pixel Pitch : 0.48 x 0.48mm Display Mode : Passive Matrix Display Color : (available) Yellow Drive Duty : 1/64 Duty IC : SSD1309 For more d

Product Description16x2 OLED Character LCD Display Number of Characters : 16 characters x 2 Lines Module dimension : 53.0 x 20.0 x 7.6 (MAX) mm View area : 36.0 x 10.0 mm Active area : 30.69 x 5.94 mm Dot size : 0.30 x 0.32 mm Dot pitch : 0.34x 0.36 mm Character size : 1.67 x 2.84 mm Character pitch : 1.94 x 3.11 mm P

Product DescriptionWinstar 7.0 inch TFT LCD Display Size: 7.0 inch Dot Matrix : 1024 x RGB x600(TFT) dots Module dimension : 164.9(W) x 100(H) x 4.8(D) mm Active area : 154.2114 x 85.92 mm Dot pitch : 0.1506 x 0.1432 mm LCD type : TFT, Normally White, Transmissive View Direction : 12 o'clock Gray Scale Inversion Direc

Product DescriptionWINSTAR VATN Character LCD Display Number of Characters : 20 characters x 4 Lines Module dimension : 98.0 x 60.0 x 13.6 (MAX) mm View area : 77.0 x 25.2 mm Active area : 70.4 x 20.8 mm Dot size : 0.55 x 0.55 mm Dot pitch : 0.60 x 0.60 mm Character size : 2.95 x 4.75 mm Character pitch : 3.55 x 5.35

Product DescriptionWINSTAR 4.3 inch TFT LCD Display module Size : 4.3 inches Dot Matrix : 480 x RGB x 272(TFT) Module dimension : 106.5 x 67.2 x 3.85 mm Active area : 95.04 x 53.86 mm Dot pitch : 0.066 x 0.198 mm LCD type : FT, Normally Black, Transmissive View Direction : Wide View (80/80/80/80) Backlight Type : LED,

Product Description5.0 inch TFT LCD Display Module Size : 5.0 inch Dot Matrix : 800 x 3(RGB) x 480 dots Module dimension : 120.7(W) x 76.3(H) x 2.9(D) mm Active area : 108 (W) x 64.8(H) mm Dot pitch : 0.045(W) x 0.135(H) mm LCD type : TFT, Normally White, Transmissive View Direction : 12 o'clock Gray Scale Inversion D
