Weldy Leister Ht Series 1600 D

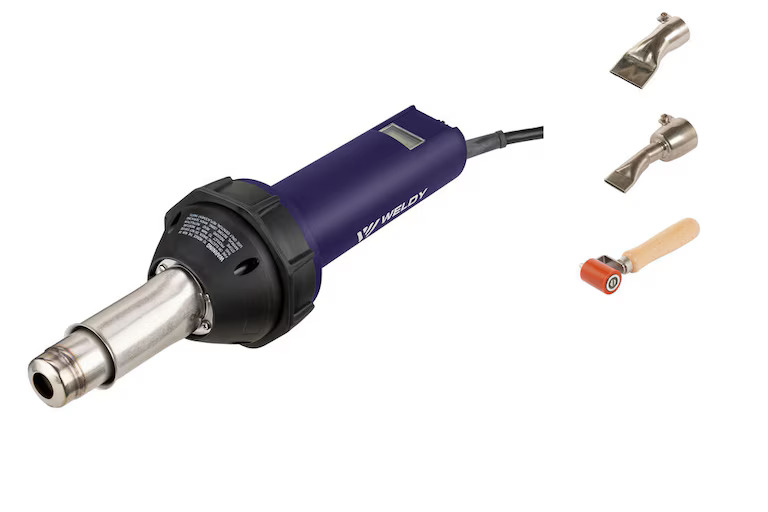

he energy HT1600 D overlap welding kit from Weldy, a Leister brand, is affordable for craftsmen and DIYers who want to overlap weld thermoplastics such as PE, PP and PVC (vinyl). The kit consists of the following five items: Weldy energy HT1600 D heat gun, 40 mm wide slot nozzle (article no. 124.777), 20 mm wide slot nozzle (article no. 124.772), 40 mm pressure roller made of silicone (article no. 130.611) and spare carbon brushes for the blower motor (article no. 125.810).

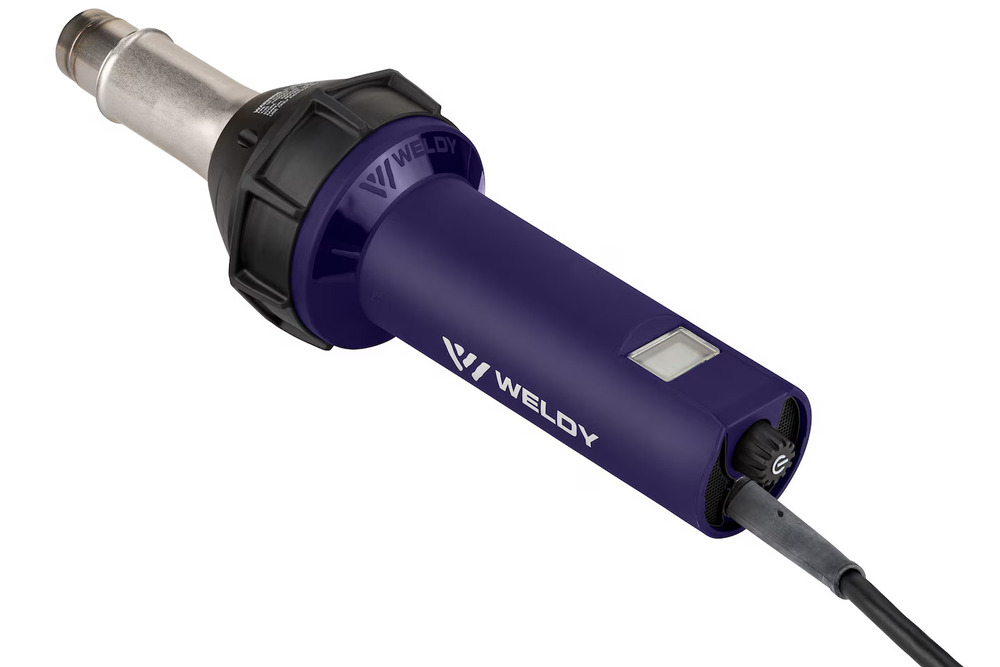

The Weldy HT 1600 heat gun has an LCD display that provides continuous digital temperature control from 40C (104F) to 620C (1,148F). The main applications for the energy HT1600 D overlap welding kit are overlap welding roofing membranes, shrinking foils, as well as welding floor coverings. Additionally, its used to dry and activate adhesives and fillers, shrink car wraps, as well as the process sensitive materials like leather and imitation leather (e.g. car interior).
Technical Data
MetricImperial
Article
160.174
Voltage
230 V
Frequency
50/60 Hz
Power
1600 W
Temperature
40 - 620 C
Temperature setting stepless
Yes
Airflow (20C)
120 - 240 l/min
Stepless air volume adjustment
Yes
Static pressure
2600 Pa
Eco-Mode
No
Display
Yes
e-Drive
Yes
Outdoor use
Yes
Nozzle connection
31.5 mm / 1.25 in
Length
360 mm
Device diameter
101 mm
Handle diameter
59 mm
Weight
1.2 kg
Power cable length
3 m
Plug
UK, 3 poles, 13A
Noise emission level
67 dB (A)
Approvals
CE
Protection class
II
Country of origin
P.R. China
Scope of delivery
130.611 Pressure roller 40 mm, silicone; 125.810 Carbon brushes; 124.777 Wide slot nozzle ( 31.5) 40 x 2 mm; 124.772 Wide slot nozzle ( 31.5) 20 x 2 mm
